Patient Contact Shielding in X-Ray Imaging: Current Guidance

Published June 14, 2026 · Clinically audited July 28, 2026

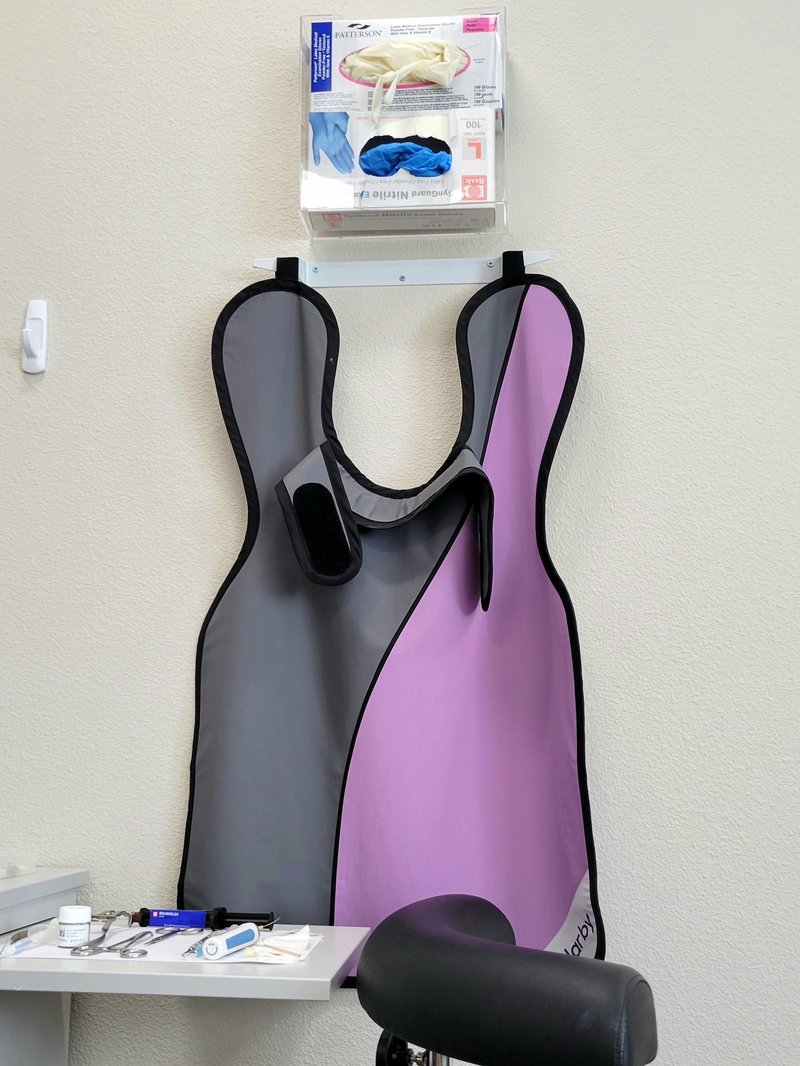

Lead protective apron used in medical imaging — A lead-lined apron. Routine patient gonadal and fetal contact shielding is distinct from protective equipment used by workers and people who assist during an exposure. Image: Kiran891, CC BY-SA 4.0, via Wikimedia Commons.

Many imaging departments no longer place a lead apron or gonadal shield on every patient. The precise change is narrower than the slogan “lead aprons are obsolete”: routine gonadal and fetal contact shielding during X-ray-based diagnostic imaging is not recommended by the American Association of Physicists in Medicine (AAPM), a position endorsed by the American College of Radiology (ACR), Health Physics Society (HPS), Image Gently, and other organizations. NCRP Statement No. 13 separately recommends ending routine gonadal shielding during abdominal and pelvic radiography.

This does not mean that all radiation-protective shielding has ended. Structural barriers, equipment-mounted shields, and protection for workers or non-patient helpers remain important. Local law and facility policy also apply.

📋 Scope matters: “Patient contact shielding” means a radiopaque shield placed on or immediately next to the patient. The current recommendation concerns routine gonadal and fetal shielding—not every protective device used in radiology.

The Short Answer

Do not use gonadal or fetal contact shielding by default solely because of age, sex, or pregnancy status.
Do justify and optimize the examination: use the right test, collimate to the anatomy required, choose patient- and task-appropriate technique, position accurately, prevent motion, and maintain quality control.
Do not confuse patient shielding with occupational protection. Workers and helpers are not the imaging subject and should be protected according to the task and applicable rules.
Use professional judgment for an individual request only when a shield can be kept out of the anatomy and exposure-control region and will not increase overall dose or compromise the exam.

Why Routine Gonadal and Fetal Shielding Changed

Gonadal shielding became common more than 70 years ago, when equipment delivered higher doses and heritable radiation effects were a major concern. Modern equipment and dosimetry have lowered many examination doses, while decades of human evidence have not demonstrated a radiation-associated excess of heritable disease. That does not make ionizing radiation harmless; it changes the balance between the negligible or absent benefit of a surface shield and the shield's potential to compromise an exam.

1. A surface shield does not stop internal scatter

For an organ outside the collimated field, much of its small dose comes from X-rays scattered inside the body. A shield laid on the skin cannot intercept radiation that has already scattered internally toward that organ. Keeping an organ out of the primary beam through appropriate positioning and collimation is much more important than covering it after the field has been selected.

2. A shield can obscure anatomy and cause a repeat

If a shield covers anatomy or creates an artifact, diagnostic information may be lost. The image may have to be repeated, adding another exposure. A repeat does not necessarily “double the dose”—that depends on the projections and techniques used—but any avoidable repeat is contrary to optimization.

3. A shield can interfere with automatic exposure control

If radiopaque material overlaps an active AEC detector, the exposure may continue longer or the system may select greater output, increasing dose and potentially degrading image quality. The important condition is overlap with the relevant detector or acquisition region: a shield merely being “near” the field does not automatically trigger AEC. The correct response is not to rely on shielding, but to position accurately, select the proper AEC chambers or manual technique, and collimate appropriately.

💡 Exam tip: The defensible answer is specific: routine gonadal and fetal contact shielding is discouraged because its benefit is negligible or nonexistent and it can obscure anatomy, lead to repeats, or interfere with exposure control. Do not generalize this to worker PPE or structural shielding.

Pregnancy: Do Not Turn a Shielding Question Into a Delay in Care

Pregnancy alone is not an indication for routine fetal contact shielding. When the conceptus is outside the primary beam, external abdominal shielding does not meaningfully reduce the internal scatter that dominates conceptus dose. When the abdomen or pelvis must be imaged directly, a shield may hide the anatomy the examination is intended to evaluate.

Most diagnostic examinations result in conceptus doses well below those associated with deterministic effects such as pregnancy loss or malformation, but dose is examination-specific. Avoid the unsafe blanket claim that every diagnostic exposure is below every fetal-harm threshold. A medically necessary examination should be justified and optimized rather than withheld because a shield is unavailable. For unusual, repeated, high-dose, interventional, or inadvertent direct abdominal-pelvic exposures, involve the radiologist and a qualified medical physicist for an individualized dose estimate and counseling; follow the facility's pregnancy-screening policy.

What Protects the Patient Now?

No single gadget “replaced” the apron. Patient protection is a system of justification and optimization:

Confirm the examination is appropriate and avoid unnecessary or duplicate imaging.
Collimate to the anatomy needed for the clinical question—never crop electronically as a substitute for beam restriction.
Use correct positioning, immobilization when appropriate, and clear communication to reduce motion and repeats.
Select technique, AEC chambers, filtration, grids, and protocols for patient size and the diagnostic task.
Monitor repeat/reject patterns, detector exposure indicators, and dose metrics; digital detectors can hide overexposure and do not by themselves guarantee a lower dose.
Maintain equipment, AEC calibration, protocol review, and a quality-assurance program with medical-physics support.

ALARA remains relevant, but in medical imaging optimization does not mean reducing dose until the image is nondiagnostic. It means using radiation reasonably necessary to answer the clinical question while avoiding exposure that does not contribute to the examination.

Current Practice by Situation

Situation	Current approach	Key nuance
Routine radiography	Do not routinely apply gonadal or fetal contact shields.	Use justification, positioning, true collimation, appropriate technique, and repeat prevention.
Pregnant patient	Do not add fetal shielding by default.	Optimize the indicated exam; seek individualized physics review for unusual or high-dose exposure.
Radiosensitive organ outside the field	Do not assume a surface shield will block internal scatter.	Keep the organ out of the primary beam when clinically possible through field selection and positioning.
Patient or parent requests a shield	Explain benefits and drawbacks; consider only if policy and law permit.	Never allow it to obscure required anatomy, overlap active AEC, create artifacts, or increase overall dose.
Worker or patient holder	Use barriers, distance, time, and PPE/dosimetry as required by the task and radiation-safety program.	This is occupational/public protection, not patient contact shielding.
Dental radiography	Follow dental-specific guidance; ADA recommendations advise against routine thyroid-collar and abdominal shielding with contemporary equipment.	Restrict beam size, position accurately, use receptor- and patient-appropriate exposure, and follow jurisdictional rules.
Fluoroscopy/interventional imaging	Do not place routine gonadal/fetal contact shielding in the imaging beam.	Patient-dose management and equipment-mounted or staff shielding are separate, procedure-specific controls.

What the Authoritative Guidance Actually Says

Organization	Documented position	Date
AAPM PS 8-A	Routine patient gonadal and fetal shielding during X-ray-based diagnostic imaging should be discontinued; limited accommodation for severe anxiety may be considered without compromising the exam.	2019; active through 2030
NCRP Statement No. 13	Recommends ending routine gonadal shielding during abdominal and pelvic radiography.	2021
ACR	Endorsed the AAPM position on patient gonadal and fetal shielding.	2019
HPS and Image Gently	Published endorsements of the AAPM position.	2019
AAPM CARES	Multistakeholder implementation FAQs; ASRT participated in the CARES committee.	2020
ADA/AAOMR	Dental recommendations advise that thyroid collars and abdominal shielding are not recommended for dental imaging, including for pregnant patients.	2024

Participation in a collaborative FAQ is not the same as formal organizational endorsement. The AAPM page lists ACR, HPS, Image Gently, and several international organizations as endorsers; it identifies ASRT as a CARES stakeholder rather than listing it among those endorsements.

Workers, Caregivers, and Patient Holders: A Different Risk Question

A technologist behind a protective control barrier, a clinician standing beside a fluoroscopy table, and a parent who must hold a child are not in the same situation. Their protection is based on expected scatter, workload, time, distance, barriers, monitoring requirements, and local regulation. An apron, thyroid collar, or dosimeter may be required for one role and unnecessary for another. Therefore, “every technologist must always wear lead and a dosimeter” is as inaccurate as “occupational shielding is obsolete.” Follow the facility radiation-protection program and applicable law.

🔬 Patient-request pathway: First explain why routine shielding is not recommended. If the patient still refuses an important exam without a shield, the technologist and radiologist may consider accommodation under facility policy—only when the shield will not compromise anatomy, exposure control, or overall dose. Document according to local policy; anxiety is not an automatic exception.

Key Summary

Routine gonadal and fetal contact shielding: not recommended in X-ray-based diagnostic imaging.
Pregnancy: not a reason for default shielding or for delaying a medically necessary, optimized exam.
Primary patient protections: justification, true collimation, appropriate technique and AEC use, positioning, repeat prevention, and quality assurance.
AEC: dose can increase when shielding overlaps an active detector—not simply because lead is somewhere nearby.
Occupational/helper protection: remains a separate requirement selected for the task and local rules.
Exceptions: consider patient preference only if policy and law allow and the examination will not be compromised.
Scope: dental imaging has specific ADA guidance; fluoroscopy staff and equipment shielding are not abolished by patient contact-shielding recommendations.

Frequently Asked Questions

Is patient shielding with a lead apron still recommended for X-rays?

Routine gonadal and fetal contact shielding is not recommended during X-ray-based diagnostic imaging. This is not a ban on every shield in every circumstance: the exam, facility policy, applicable law, and whether a shield could obscure anatomy or interfere with exposure control still matter.

Can a patient shield increase radiation dose?

It can. If a shield overlaps anatomy of interest or an active automatic exposure control detector, it may obscure anatomy, prompt a repeat, or cause the system to increase X-ray output. A shield outside the primary beam generally does not trigger AEC, but it also does little to reduce internal scatter reaching organs outside the field.

Is ALARA still in effect?

Yes. Radiation protection still requires justification and optimization: use an appropriate exam, collimate to the anatomy needed, select patient- and task-appropriate technique, avoid repeats, and maintain equipment and quality control. Optimization means the dose needed for the clinical purpose, not the lowest dose regardless of image quality.

Do pregnant patients need fetal shielding for diagnostic X-rays?

Routine fetal contact shielding is not recommended solely because a patient is pregnant. Most diagnostic examinations deliver conceptus doses far below those associated with deterministic fetal effects, but dose varies by exam. Necessary imaging should be justified and optimized; unusual, high-dose, repeated, or direct abdominal-pelvic exposures may warrant radiologist and medical-physicist consultation.

Does the change apply to occupational workers or people holding a patient?

No. Recommendations to end routine patient gonadal and fetal contact shielding do not remove radiation-protection requirements for workers or non-patient helpers. Barriers, distance, time, dosimetry, and personal protective equipment are selected according to the task, facility program, and applicable regulation; an apron or dosimeter is not automatically required for every worker in every general-radiography setting.

What if a patient asks for a shield?

Explain the negligible benefit and possible drawbacks. A requested shield may sometimes be used if facility policy and law permit and it can be kept out of the anatomy and exposure-control region without increasing overall dose. It should not be used when it would compromise the examination.

Does this guidance include dental X-rays and fluoroscopy?

AAPM's gonadal and fetal contact-shielding position covers X-ray-based diagnostic imaging, including fluoroscopy. Dental imaging has separate ADA recommendations that also advise against routine thyroid-collar and abdominal shielding with contemporary equipment. Staff barriers, aprons, ceiling-suspended shields, and protection for helpers are separate from patient contact shielding.

Knowledge Check

1. Why is a surface shield usually ineffective for an organ outside the collimated field?

Most of that organ's small dose comes from scatter generated inside the patient, which a surface shield cannot intercept.

2. When can a shield make AEC increase output?

When the shield overlaps an active AEC detector or relevant acquisition region—not merely when it is near the field.

3. What is the preferred way to protect a radiosensitive organ not needed in the image?

Keep it outside the primary beam when clinically possible through accurate positioning and true collimation.

4. Does ending routine patient gonadal shielding eliminate aprons for workers or patient holders?

No. Worker and helper protection is a separate decision based on the task, expected exposure, facility program, and applicable regulation.

5. May severe anxiety justify a requested patient shield?

Sometimes, but not automatically. Facility policy and law must permit it, and the shield must not obscure anatomy, overlap exposure control, create artifacts, or increase overall dose.
