Chest X-Ray Interpretation: A Beginner's Guide for Rad Tech Students

Chest radiographs are among the most frequently performed radiographic examinations. For radiation safety considerations, follow ALARA principles. As a student or newly registered radiologic technologist, learn to recognize technical adequacy, normal anatomy, and appearances that require prompt communication—within your training, local policy, and scope.

This guide introduces commonly taught adult chest-radiograph positioning, normal anatomy, technical quality, a systematic ABCDE review, common imaging patterns, devices, limitations, and escalation. It is an educational framework—not training or authorization to diagnose independently.

Why Chest X-Ray Interpretation Matters for Rad Techs

You might be thinking: "I'm a technologist, not a radiologist — why do I need to review images?" Radiographers evaluate technical quality and anatomy coverage so that the requested examination is diagnostic. A repeat adds avoidable radiation exposure, but it does not necessarily “double” the patient's total examination dose. Never repeat solely to make an image look ideal: first decide whether the image answers the clinical question, follow local repeat-analysis policy, and involve a radiologist or supervising practitioner when uncertain.

The ARRT Radiography Content Specifications include chest procedures as well as image production, evaluation, radiation safety, and patient care. Use the current specifications—not informal claims about question frequency—to guide exam preparation.

During clinical rotations, radiologists and senior technologists expect recognition of anatomy, positioning errors, and potentially urgent appearances. Radiographers acquire and analyze image data for interpretation by a licensed practitioner; they should communicate observations through local escalation pathways rather than provide an independent diagnosis.

Getting the Image Right: PA Chest Positioning

Before you can interpret a chest X-ray, you need to make sure it is technically adequate. A routine adult chest examination commonly uses an upright PA (posteroanterior) projection when the patient's condition permits; exact series and technique follow the department's validated protocol.

PA Projection

• Position: Patient upright facing the detector, without rotation. Elevate the chin to keep the mandible off the apices and roll the shoulders forward to move the scapulae laterally.
• Central Ray (CR): Perpendicular to the image receptor at approximately T7 in the midsagittal plane—about 7-8 inches (18-20 cm) below the vertebra prominens in an average adult. Center from anatomy and ensure both apices and costophrenic angles are included rather than relying on a fixed distance alone.
• SID: 180 cm (72 inches) — this long source-to-image distance minimizes magnification of the cardiac silhouette.
• Respiration: Expose at suspended full inspiration when feasible. Low lung volume crowds bronchovascular markings and may exaggerate the apparent cardiac width or basal opacity, but illness or poor cooperation may limit inspiration.
• Collimation: Include both lung apices, lateral chest walls, and costophrenic angles while restricting the field to the required anatomy.

Lateral Projection

• Position: Patient standing with arms raised, the mid-axillary plane centered to the grid. The left lateral position is standard (left side against the detector) to limit cardiac magnification.
• CR: Perpendicular to T7 level, same as the PA view.
• SID: 180 cm (72 inches).

Normal Chest X-Ray Anatomy

Before you can spot abnormalities, you need to know what normal looks like. Here are the key anatomical structures visible on a well-exposed PA chest X-ray:

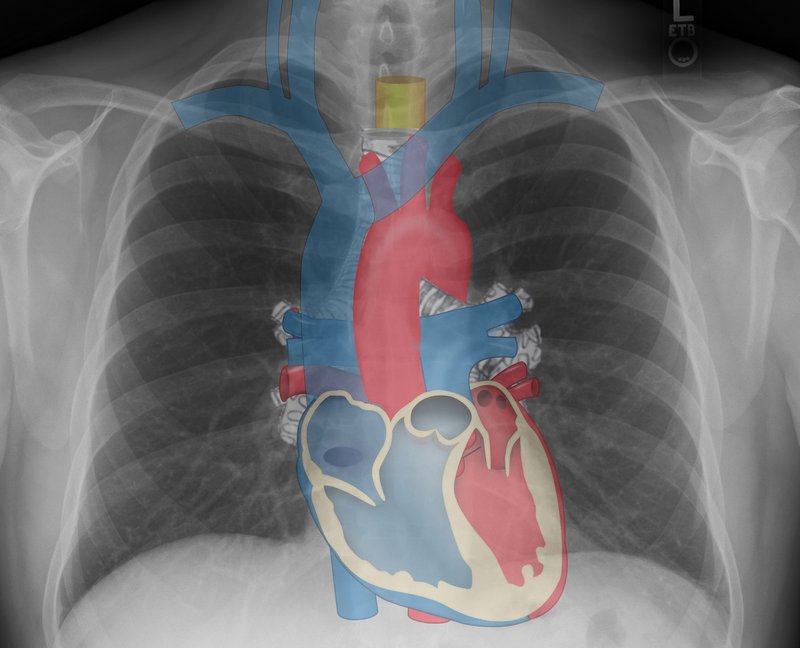

Additional structures worth identifying: the aortic arch (visible as a bulge above the cardiac silhouette on the left), the superior vena cava (opacity along the right mediastinal border), the hila (where pulmonary vessels and bronchi enter the lungs — the left hilum is typically slightly higher than the right), and the clavicles (which overlay the upper lung fields).

The ABCDE Approach: A Systematic Way to Read a Chest X-Ray

Many clinicians use a systematic search pattern to reduce perceptual omissions. ABCDE is one useful teaching mnemonic, but its wording and order vary, and it does not replace review of technical quality, devices, comparison imaging, clinical information, or the final interpretation by an appropriately credentialed practitioner.

A — Airway

Check tracheal position and caliber and trace it to the carina. Apparent deviation may result from rotation. True displacement can be toward volume loss or away from a large mass, pleural collection, or marked pressure/volume effect. Tension pneumothorax is a clinical emergency—do not wait for or exclude it on the basis of tracheal deviation alone.

B — Breathing (Lungs & Pleura)

Examine both lung fields systematically. Compare the density of the right and left lungs. Look for:

• Airspace opacity/consolidation — increased opacity that obscures vessels; patent air-filled bronchi may remain visible as air bronchograms. Infection is one cause, but edema, hemorrhage, aspiration, and other processes can look similar.
• Interstitial opacity — reticular, nodular, or septal patterns. The appearance is nonspecific and may occur with edema, infection, fibrosis, or other interstitial disease.
• Pleural effusion — may blunt a costophrenic angle or form a meniscus when upright. Supine fluid often layers posteriorly, producing diffuse increased opacity of a hemithorax and sometimes an apical cap; small volumes may be occult.
• Pneumothorax — a visceral pleural line with absent vascular markings peripheral to it is classic when visible. On supine imaging, look for a deep, unusually lucent costophrenic sulcus; a small pneumothorax can be occult.

C — Cardiac

Assess heart size only with projection and inspiration in mind: the conventional cardiothoracic-ratio threshold of 0.50 applies to an adequately inspired upright PA adult image, not a portable AP image. Review the cardiac and mediastinal contours. Pulmonary venous redistribution, septal (Kerley B) lines, peribronchial/interstitial opacity, airspace edema, and pleural effusions may support hydrostatic edema, but no single sign is specific and cardiomegaly may be absent, especially in acute edema.

D — Diaphragm

Review both hemidiaphragms and the costophrenic/cardiophrenic angles. The right is commonly slightly higher, but normal position varies. Loss of a normally visible border localizes adjacent airspace opacity—the right heart border to the right middle lobe and a hemidiaphragm to a lower lobe—but does not by itself establish pneumonia.

E — Everything Else (Bones, Soft Tissues, Review Areas)

Check the visible bones (ribs, clavicles, thoracic spine, scapulae) for fractures, lytic lesions, or degenerative changes. Assess the soft tissues for subcutaneous emphysema (air in the soft tissues). Review the area behind the heart (retrocardiac) and behind the diaphragm (retrodiaphragmatic) — these are common blind spots where pathology can hide.

An AP vs. PA Caveat

Anteroposterior (AP) chest radiographs—often portable and obtained supine or semi-erect—magnify the anterior heart and mediastinum because they are farther from the detector; a shorter SID can add magnification. Position and low inspiration also alter vascular and basal appearances. AP images remain clinically useful, including for acute findings and device checks, but apparent cardiomegaly or mediastinal widening should not be measured or interpreted as if the image were an upright PA radiograph.

Lines, Tubes, and Devices

Identify every device, trace its entire visible course, locate the tip and side holes, and check for procedure-related complications. Common adult reference targets include:

• Endotracheal tube: tip commonly about 3-5 cm above the carina with the head neutral; neck flexion and extension move the tip. An endobronchial tip is urgent.
• Enteric tube: follow it down the esophagus, across the gastroesophageal junction, and below the diaphragm; the tip and all side ports intended for gastric use should be intragastric. Never clear a tube for use if its course or tip is uncertain.
• Central venous catheter: expected tip depends on catheter type and indication, commonly in the lower SVC/cavoatrial region for routine upper-body central access. Check for malposition and complications such as pneumothorax.
• Chest drain: side holes should project within the pleural cavity; position must be interpreted with the indication and clinical function.

These are general educational reference points, not placement authorization. Device use must follow institutional policy and formal image interpretation.

Common Pathologies You'll See on Chest X-Rays

As a student or new technologist, you'll encounter these common chest pathologies. Understanding what they look like on a radiograph is essential for quality control and for the ARRT exam.

Pathology	X-Ray Appearance	Key Features
Lobar airspace consolidation	Airspace opacity that may contain air bronchograms and respect a fissure	Infection is one cause; correlate clinically because edema, hemorrhage and aspiration may overlap
Hydrostatic pulmonary edema	Vascular redistribution, septal lines, peribronchial/interstitial or airspace opacity, sometimes effusions	Cardiomegaly and a central “bat-wing” pattern may occur but are not required or specific
Pneumothorax	Visceral pleural line, absent lung markings peripheral to line	Deep sulcus sign on supine films — hyperlucent costophrenic angle
Pleural Effusion	Blunted costophrenic angle, meniscus sign on upright film	Layering opacity on supine films
COPD / Emphysema	Hyperinflation, flattened diaphragms, increased retrosternal lucency and vascular attenuation may occur	A normal radiograph does not exclude COPD; diagnosis and severity require clinical assessment and spirometry
Atelectasis	Linear, plate-like, wedge-shaped, or lobar opacity with evidence of volume loss	Fissure/hilum displacement, crowding, elevated hemidiaphragm, or shift toward substantial collapse
Pulmonary Nodule / Mass	Rounded opacity in lung field, solitary or multiple	Chest radiography cannot reliably characterize every nodule; comparison and further imaging may be required

Positioning Tips for Diagnostic-Quality Chest X-Rays

Getting a technically adequate chest X-ray requires more than exposure-factor selection—it requires attention to positioning, patient condition, the clinical question, and the department's validated protocol. These practical checks can help produce diagnostic images while avoiding unnecessary repeats:

Getting Full Inspiration

Patients often take a shallow breath when asked to "take a deep breath." Demonstrate the instruction when appropriate. About 9-10 posterior ribs (or roughly 5-6 anterior ribs) above the diaphragm is a commonly used adult guide to inspiration, not an absolute threshold. Age, habitus, disease, and the clinical question matter. Low lung volume may crowd basal markings and exaggerate apparent heart width, but do not repeat automatically on a rib count alone.

Avoiding Rotation

Check that the patient's shoulders and hips are equidistant from the upright bucky. On the image, compare the medial clavicular ends with the spinous processes while allowing for genuine asymmetry. Rotation can produce apparent tracheal, mediastinal, or cardiac displacement and should be considered before calling these findings abnormal.

Removing Artifacts

Jewelry, ECG leads, braids, and clothing hardware can obscure anatomy. Remove external items that overlap the required field when safe and practical; do not remove medically necessary equipment. Repeat only when an artifact materially limits the examination, using local policy and appropriate supervision.

Scapulae Out of the Fields

A common problem with larger or less flexible patients is that the scapulae overlie the upper lung fields despite rolling the shoulders forward. In these cases, ask the patient to grab the sides of the upright bucky with both hands and pull gently forward — this rotates the scapulae laterally and clears the lung apices.

Quality Checks Before You Send the Image

Before releasing a patient from the chest X-ray room, perform these checks:

Check	What to Look For	Action if Failed
Inspiration	Common guide: about 9-10 posterior or 5-6 anterior ribs; also assess lung volume and clinical limitations	If clinically inadequate, reinstruct and repeat only under local policy
Rotation	Clavicular heads equidistant from spinous processes	Reposition patient, ensure shoulders/hips are symmetric
Exposure / noise	Adequate anatomic detail without excessive noise; review exposure indicator and detector guidance	Use cause-specific technique adjustment; do not infer detector exposure from displayed brightness alone
Coverage	Lung apices, costophrenic angles, entire rib cage included	Adjust collimation or patient position
Artifacts	No jewelry, metal, or clothing items overlying anatomy	Repeat only if the artifact materially obscures required anatomy

How to Practice Chest X-Ray Interpretation

The best way to get good at reading chest X-rays? Look at lots of them. Here's how to build the habit:

• Start with teaching files: Use de-identified, authorized teaching collections and supervised clinical review. Access PACS only for legitimate educational or patient-care purposes under institutional privacy policy.
• Use a complete checklist: Review identifiers/markers, projection and quality, ABCDE anatomy, devices, review areas, and available comparisons. A checklist trains consistency but does not confer diagnostic authority.
• Compare when authorized: Relevant prior studies can reveal change, but access and comparison must occur within your role and local workflow.

Limitations and Urgent Escalation

A chest radiograph is a two-dimensional projection with overlapping anatomy. It can miss small pneumothoraces, small effusions, early infection, pulmonary embolism, subtle nodules, and other important disease; a “normal” image does not exclude serious illness. Additional views, ultrasound, CT, or other testing may be needed according to the licensed practitioner's assessment.

Summary

Chest X-ray interpretation is a foundational skill for every radiologic technologist. Here's what to remember:

• Nail the positioning first — when an upright PA is appropriate, use anatomy-based T7 centering, full inspiration when feasible, no rotation, and the department's chest SID/protocol
• Use the ABCDE approach — Airway, Breathing, Cardiac, Diaphragm, Everything Else
• Know normal anatomy — trachea, carina, lung fields, cardiac silhouette, diaphragm, costophrenic angles
• Check quality before releasing — projection, inspiration, rotation, exposure indicator/noise, motion, coverage, and artifacts; repeat only when clinically necessary
• Recognize patterns and devices — describe appearances, understand important differentials and limitations, and escalate urgent concerns without making an independent diagnosis

Sources and Further Reading

• ASRT Practice Standards for Medical Imaging and Radiation Therapy — radiographer role, image-data analysis, licensed-practitioner interpretation, quality, and communication.
• ARRT Examination Content Specifications — current official exam-content documents.
• Sakthivel et al. Malpositioned Lines and Tubes on Chest Radiograph: A Concise Pictorial Review — device course, tip positions, and complications.
• Imaging of ICU Patients — chest-radiograph limitations and appearances of edema, atelectasis, pleural disease, and support devices.
