Fluoroscopy Procedures & Safety

If you've ever watched a radiologist guide a catheter through a blood vessel in real time, or seen an orthopedic surgeon position a fracture fixation screw under live X-ray guidance, you've witnessed fluoroscopy in action. Fluoroscopy is one of the most powerful and versatile tools in medical imaging. Dose varies enormously: a short diagnostic examination may be relatively low dose, while a lengthy fluoroscopically guided intervention can deliver enough localized skin dose to cause tissue reactions and can be an important source of occupational exposure.

Understanding fluoroscopy procedures and safety is essential for every radiologic technologist. You'll encounter fluoroscopy in settings ranging from the X-Ray department to the operating room, and ARRT's published Radiography Content Specifications include fluoroscopic equipment and radiation-protection concepts. This guide covers C-arm components and receptors, clinical applications, dose management, and staff protection.

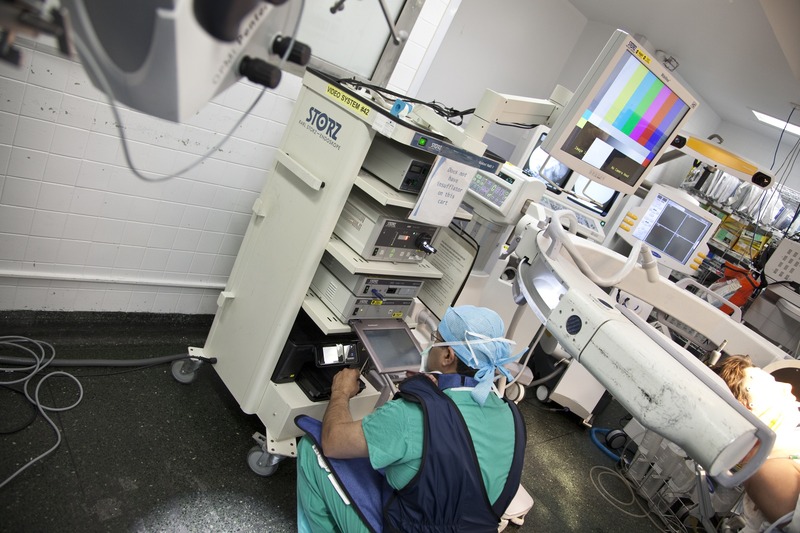

Mobile C-arm fluoroscopy unit in an operating room with monitor and endoscopy equipment
Mobile C-arm fluoroscopy unit in an operating room setting. Mobile C-arms are widely used in orthopedics, pain management, and surgical guidance. (CC BY-SA 3.0, Doctorqmd)
💡 Key Takeaway: Fluoroscopy provides invaluable real-time guidance, but dose is highly procedure- and technique-dependent. Complex interventions can produce high cumulative and localized skin doses. Justify the examination and optimize each exposure; do not assume that every fluoroscopic study is higher dose than every other X-ray-based examination.

What Is Fluoroscopy and How Does It Work?

Fluoroscopy is a real-time X-ray imaging technique that produces dynamic, moving images of the body's internal structures. Unlike a standard radiographic exposure, which captures a single static image, fluoroscopy uses a continuous or rapidly pulsed X-ray beam to create a live video feed that the operator watches on a monitor.

The basic system includes an X-ray tube and generator, beam-limiting and filtration components, an image receptor (an image intensifier or flat-panel detector), image processing, and display monitors. In a C-arm, the tube and receptor are mounted at opposite ends of a C-shaped support. Other fixed radiographic/fluoroscopic rooms use under-table or over-table tube/receptor assemblies and are not necessarily C-arms.

When the exposure switch or foot pedal is activated, X-rays pass through the patient and strike the image receptor. In an image-intensifier system, a camera digitizes the output-phosphor image; in a flat-panel system, the detector produces the digital signal directly for processing and display. Fluoroscopic pulse/frame rates are selectable and may range from only a few images per second to 30 or more, depending on the system and clinical task.

Fluoroscopy Equipment: C-Arm Components and Technology

Before you can safely operate fluoroscopy equipment, you need to understand what you're working with. Let's break down the key components of a modern fluoroscopy system.

X-Ray Tube and Generator

Fluoroscopy generally uses a lower average tube current than a single radiographic acquisition, while pulsed fluoroscopy may use substantially higher current during each short pulse. Technique ranges and generator ratings vary widely by system and clinical mode. Automatic dose-rate control adjusts factors such as kVp, mA, pulse width, filtration, and sometimes focal spot to maintain the selected receptor signal; choosing a higher-dose mode or imaging a thicker patient can therefore markedly increase output.

Image Intensifier vs. Flat-Panel Detector

This is one of the most important distinctions you'll need for the ARRT exam. Here's how they compare:

Feature Image Intensifier (II) Flat-Panel Detector (FPD)
Conversion process X-rays → input phosphor → photocathode → electrons → output phosphor → visible light Usually indirect: X-rays → CsI scintillator → light → amorphous-silicon photodiodes/TFT array → digital signal
Image quality Susceptible to pincushion/S distortion and brightness nonuniformity (vignetting) No II pincushion/S distortion; image quality depends on detector design, processing, dose, and task
Patient dose Not determined by receptor type alone May permit dose reduction when protocols are optimized, but can also operate at equal or higher dose
Size/weight Bulky, heavy (vacuum tube required) Thin, lightweight, compact
Durability II gradually degrades over time (aging phosphor) Can develop defective pixels, lag, or calibration drift; requires QA

Most new fixed systems use flat-panel detectors, while image-intensifier systems remain in service. Do not infer patient dose from detector type or the apparent brightness of the displayed image. Review the selected dose mode and the system's displayed dose indices.

Magnification Modes

Fluoroscopy systems offer magnification modes that display a smaller field of view. With an image intensifier, selecting a smaller active input field reduces minification gain; automatic dose-rate control usually raises output to maintain brightness, so entrance dose rate increases. Flat-panel systems may also raise dose in smaller field-of-view modes to support improved detail. A purely post-processing zoom does not itself require more radiation. Use the largest acquisition field that adequately answers the clinical question and distinguish electronic acquisition magnification from display-only zoom.

📝 Registry review: On an image intensifier, selecting a smaller input field increases magnification and ordinarily increases entrance dose rate under automatic brightness/dose-rate control. Display-only zoom is different and does not change X-ray output.

Clinical Applications of Fluoroscopy

Fluoroscopy is used across virtually every medical specialty. Here are the most common clinical applications you'll encounter as a radiologic technologist:

Gastrointestinal (GI) Fluoroscopy

Barium swallow/esophagram, upper-GI series, small-bowel studies, and contrast enema are classic fluoroscopic examinations. Positioning and projections vary with the anatomy and clinical question; follow the radiologist's and facility's protocol rather than a single universal sequence. Barium sulfate is commonly used when gastrointestinal perforation is not suspected. If perforation or a postoperative leak is a concern, the radiologist generally selects an appropriate water-soluble iodinated agent first; concentrated hyperosmolar agents carry serious aspiration risk, so contrast choice must account for swallowing safety and the suspected site. Screen for relevant contrast contraindications and follow current contrast-reaction procedures.

Orthopedic and Surgical C-Arm Guidance

Mobile C-arms are a staple in operating rooms. Common orthopedic procedures using C-arm guidance include:

Interventional Radiology and Cardiology

This is where fluoroscopy reaches its highest complexity. Fixed ceiling-mounted or floor-mounted C-arms in interventional radiology (IR) suites and cardiac catheterization labs allow for:

Genitourinary and Other Studies

Voiding cystourethrography (VCUG), retrograde urethrography, and hysterosalpingography (HSG) commonly use fluoroscopy with iodinated contrast introduced into the bladder, urethra, or uterine cavity, respectively. Excretory urography/IVP is primarily a timed radiographic examination after intravenous iodinated contrast, although fluoroscopy may be used in some practices. Each study requires procedure-specific screening, preparation, contrast administration, positioning, and pregnancy precautions.

Radiation Safety in Fluoroscopy: Protecting Patients and Staff

Fluoroscopy poses unique radiation safety challenges. Unlike a single radiographic exposure that lasts milliseconds, a fluoroscopic procedure can last minutes — and in complex interventional cases, can exceed 30-60 minutes of cumulative beam-on time. This prolonged exposure affects both the patient (potential for skin injury) and the staff (occupational exposure from scattered radiation).

Patient Dose Management

The U.S. Food and Drug Administration (FDA) has documented radiation-induced skin injuries after lengthy fluoroscopically guided procedures. Manage radiation prospectively throughout the case:

Staff Radiation Protection

As a technologist working in fluoroscopy, you are at risk from scattered radiation — primarily from the patient, who becomes a secondary radiation source when the X-ray beam hits them. Key protection measures include:

⚠️ Clinical Pearl: The patient is the principal source of staff scatter. Distance can reduce exposure substantially, and a correctly positioned ceiling or mobile shield can be even more effective. In lateral geometry, prefer the detector side when possible, but there is no universal “single most effective” action or fixed 5–10× ratio for every C-arm, projection, room, and staff position.

Pulsed Fluoroscopy and Dose Reduction Techniques

Pulsed fluoroscopy is an important optimization tool, but it saves dose only when the selected pulse rate, pulse width, and per-pulse output produce a lower average air-kerma rate than the alternative mode.

Instead of an uninterrupted beam, the system delivers brief X-ray pulses at a selectable rate. Available rates differ by equipment (for example, 3, 7.5, 10, 15, or 30 pulses per second). “30 pps” is still pulsed, not continuous fluoroscopy. Choose the lowest rate and lowest dose mode that preserve the temporal and spatial information required; examples below are starting points, not universal protocols:

Reducing 30 pps to 7.5 pps does not guarantee a 75% dose reduction. Automatic dose-rate control may increase mA, pulse width, or dose per pulse, and manufacturers implement modes differently. Lower rates reduce temporal resolution and may make motion appear discontinuous. Verify performance through system-specific testing and displayed dose rate.

Additional tools include added copper filtration to remove low-energy photons, removable antiscatter grids for selected small/pediatric patients when image quality permits, and dose monitoring. “Grid-controlled” commonly describes rapid tube-current switching at the X-ray tube grid in some pulsed generators; it should not be confused with the antiscatter grid. Monitoring KAP/DAP does not itself reduce dose—it provides feedback for optimization and documentation.

Dosimetry and Dose Monitoring in Fluoroscopy

Modern fluoroscopy systems display multiple dose metrics that you need to understand and record:

Metric Abbreviation What It Measures
Cumulative reference air kerma Ka,r (often CAK) Air kerma accumulated at the defined interventional reference point. It is a useful skin-dose surrogate, but it is not the dose at the patient's skin and does not include all geometry, backscatter, attenuation, or table/pad effects
Dose-Area Product KAP (also DAP or PKA) Air kerma integrated over beam area, commonly in Gy·cm². It reflects total beam output across the field and is useful for comparing procedures and as a broad indicator of stochastic risk, but it is not effective dose
Fluoroscopy Time FT Accumulated fluoroscopy beam-on time; it generally excludes radiographic/cine/DSA acquisitions and is therefore a poor stand-alone dose surrogate
Peak Skin Dose PSD Best estimate of the highest absorbed dose to any localized skin area; most relevant to tissue-reaction risk, but not directly measured/displayed on many systems

Do not equate Ka,r with peak skin dose. Skin effects depend on absorbed dose at one site, beam energy, field overlap, previous irradiation, and patient susceptibility. About 2 Gy peak skin dose is a commonly cited approximate threshold for early transient erythema, not a certainty or a Ka,r cutoff; temporary epilation may occur around 3 Gy, while higher localized doses can cause later erythema or more serious injury. Effects can appear days to months later.

⚠️ Dose notification versus follow-up: A facility may set incremental intra-procedure notification levels and a substantial radiation dose level (SRDL) that triggers post-procedure actions. AAPM guidance gives 5 Gy Ka,r as a consensus SRDL, with 3 Gy peak skin dose as an alternative when PSD is available. These are quality-management triggers—not dose limits, injury thresholds, or reasons to stop a clinically necessary procedure. Follow-up and documentation requirements come from facility policy, accreditation rules, and applicable state/local regulation. The former Joint Commission 15 Gy “single field” sentinel-event dose criterion is historical: AAPM MPPG 12.a reports that, effective January 2022, it was replaced by a criterion based on permanent tissue injury when optimization was not implemented and/or recognized practice parameters were not followed. Accredited organizations must consult the current Joint Commission standards rather than treating 15 Gy as a universal threshold.

Federal equipment rules versus clinical policy

For covered equipment manufactured in the United States, 21 CFR 1020.32 is a manufacturer performance standard. Among other provisions, it specifies fluoroscopic air-kerma-rate limits under defined test conditions (generally 88 mGy/min unless an allowed high-level-control exception applies), requires a cumulative five-minute timing signal, and—on equipment subject to the applicable later manufacturing dates—requires display of air-kerma rate and cumulative air kerma at the reference location. These equipment provisions are not patient dose limits. Operator credentialing, physicist testing intervals, apron inspection, dose notifications, record content, and follow-up are governed by state law, accreditation standards, manufacturer instructions, and facility policy; requirements vary by jurisdiction and equipment age.

Pregnancy and Fluoroscopy

Special consideration is required when fluoroscopy involves pregnant patients or staff. The key principles from our radiation safety guide apply because some fluoroscopic procedures can involve substantial cumulative exposure.

For patients: Pregnancy is not an automatic contraindication to medically necessary fluoroscopy. Verify pregnancy status according to facility policy, inform the radiologist/operator, and consider ultrasound or noncontrast MRI when it can answer the clinical question without harmful delay. If fluoroscopy is the appropriate examination, optimize rather than cancel reflexively: keep the conceptus out of the primary beam when clinically possible, collimate, use the lowest adequate dose mode and pulse rate, minimize acquisitions and beam-on time, and consult a qualified medical physicist for prospective planning or dose estimation when warranted. Routine patient contact shielding provides little or no benefit outside the field and can obscure anatomy or trigger higher automatic output if it enters the beam; follow current institutional policy rather than placing shielding automatically.

For staff: Pregnancy declaration is voluntary and, under the U.S. NRC framework, must be made in writing for the declared-pregnant-worker provisions to apply; X-ray workers are chiefly governed by state rules, which should be checked. The NRC embryo/fetus occupational dose limit is 5 mSv (500 mrem) for the entire pregnancy, with exposure kept reasonably uniform; 0.5 mSv per month is a common planning value, not a universal monthly limit. A declared worker is commonly assigned a fetal dosimeter under the apron at waist level in addition to the collar dosimeter, as directed by the radiation-safety program. With optimized practice, shielding, training, and monitoring, pregnant staff can usually continue fluoroscopic work; reassignment is an individualized workplace/radiation-safety decision, not an automatic requirement.

C-Arm Positioning Tips for the Rad Tech

As the radiologic technologist, you are the expert on positioning — the operating surgeon or interventionalist relies on you to get the right view quickly. Here are positioning strategies that save time (and therefore reduce dose):

📝 Geometry review: For AP/PA C-arm imaging, a tube-below-table/detector-above arrangement is generally preferred when clinically feasible because much backscatter is directed downward and the detector can be brought close to the patient. For lateral views, staff should preferentially work on the detector side. Sterile access and collision safety still matter, and the receptor should never be used as a support or allowed to contact the patient unexpectedly.

Quality Assurance and Equipment Checks

Fluoroscopy equipment requires a documented quality-control program. Frequencies and responsible personnel must follow federal/state requirements, accreditation standards, manufacturer instructions, and the qualified medical physicist's program; the schedule below is therefore role-based rather than a universal legal timetable:

Document the dose indices available from the system—commonly Ka,r, KAP, fluoroscopy time, and number of acquisition images/runs—in the procedure record as required locally. When the facility's SRDL is reached, activate its dose-management process, which may include notifying the operator, estimating skin dose, counseling the patient, arranging follow-up, and reviewing the case. A 5 Gy Ka,r trigger is a consensus recommendation, not a universal federal reporting requirement.

Fluoroscopy on the ARRT Exam

ARRT's published Radiography Content Specifications—not third-party “exam tips”—define the examination scope and include fluoroscopic equipment and radiation-protection concepts. Relevant review topics include:

Master fluoroscopy exam content by combining textbook knowledge with practical experience. Every time you work a fluoroscopy case, mentally review the dose metrics on the console, observe your own positioning relative to the C-arm, and note the pulse rate setting. Over time, this builds the intuitive understanding that the ARRT exam tests.

Summary

Fluoroscopy is an indispensable imaging modality that gives clinicians the power to see inside the body in real time. But that power comes with serious responsibility — for both patient safety and staff protection. Here's what every rad tech needs to remember:

Fluoroscopy safety isn't just exam content — it's a daily practice that protects lives. The technologist who masters fluoroscopy safety is the technologist who makes the OR team safer, the patient experience better, and the department's dose metrics lower. Study it, practice it, and own it.

Authoritative References

Medical accuracy review: July 27, 2026. This educational overview does not replace the equipment manual, supervising physician, qualified medical physicist, radiation safety officer, facility policy, or applicable law.

Source note: Radiography 101 prepared this educational guide using the FDA/eCFR, AAPM, IAEA, ACR, NRC, and ARRT documents listed above. It does not replace equipment instructions, facility policy, qualified medical-physics guidance, or applicable law.
