T-Tube Cholangiogram: Bile Duct Study for Rad Techs
Educational Use
This article supports student learning and does not replace institutional protocols, contrast-agent labeling, or a supervising physician's direction.
What Is a T-Tube Cholangiogram?
A T-tube cholangiogram (also called a postoperative cholangiogram) is a fluoroscopic contrast study of the bile duct performed through a temporary T-shaped drainage tube placed in the common bile duct after surgical exploration or incision of the duct, sometimes performed together with gallbladder removal (cholecystectomy). The technologist, working with a supervising physician, injects water-soluble iodinated contrast gently through the tube while fluoroscopy shows the contrast filling the bile ducts — checking for retained stones, obstruction, leaks, and free drainage into the duodenum.
The "T" in the name is the tube's shape: the short arms sit inside the bile duct, and the long arm exits the abdomen through the skin. It remains in place (drained to a collection bag) until cholangiography confirms ductal patency and free passage of contrast into the duodenum; the surgical team then decides when to remove it according to local protocol.
For the radiologic technologist this is a GI fluoroscopy and iodinated-contrast case: you set up the imaging chain, position the patient, keep dose as low as reasonably achievable (ALARA), and acquire fluoroscopy and spot radiographs under the physician's control as the tube is injected.
Registry Review
ARRT's published Radiography Content Specifications cover fluoroscopic procedures, contrast media, and GI/abdominal anatomy, but do not promise a question count for T-tube cholangiography. High-yield review points: water-soluble iodinated (never barium) contrast, gentle, slow injection to avoid duct overfilling and ascending cholangitis, AP plus oblique projections, and free flow into the duodenum as the drainage endpoint.
Why Order It? (Indications)
Per the UT Southwestern radiology protocol, a T-tube cholangiogram is used to:
- Evaluate biliary patency in postoperative patients — confirm the duct is open after surgery.
- Assess possible biliary obstruction, leak, or stones.
- Confirm free drainage of contrast into the duodenum so the T-tube can be removed safely.
Historically, retained distal and intrahepatic bile duct stones were found in about 5% of postcholecystectomy patients (Cleveland Clinic Quarterly, 1977). That figure reflects the surgery era and is now considered historical teaching. In a 2024 retrospective cohort of patients who already had T-tube drainage after common bile-duct exploration, T-tube cholangiography and choledochoscopy were used to evaluate residual duct stones roughly six to eight weeks after surgery. That timing reflects the study protocol and may differ by surgical and institutional practice.
Clinical Pearl: The Modern Screening Role
Today T-tube cholangiography is largely a screening test before T-tube removal in a patient who already has the drain in place — not a method for choosing who gets a T-tube. When no T-tube is present, clinicians select other imaging tests—often MRCP for noninvasive duct imaging—according to the clinical question and local pathway.
Contrast Media: The Classic Exam Point
The best-known exam question: what contrast is used for a T-tube cholangiogram? The answer is water-soluble iodinated contrast — typically a nonionic agent — injected directly into the biliary system through the tube. Barium sulfate must not be injected into the biliary system. It is designed for the lumen of the GI tract and can be retained and harmful if it enters a duct system or the abdomen.
Because this study uses iodinated contrast, review the patient for a known iodinated-contrast allergy before the exam, keep reaction-management supplies ready, and observe the patient according to facility policy. The exact agent, dilution, volume, and administration method follow institutional protocol and the supervising physician's direction.
See Contrast Media in Radiology: Types, Administration, Adverse Reactions for the full iodinated-agent and adverse-reaction breakdown.
Patient Preparation
Per the Royal Wolverhampton NHS patient guidance, a T-tube cholangiogram typically needs no special preparation:
- No fasting. The patient can usually eat and drink normally and take routine medications.
- Bring someone you trust and a dressing gown/slippers to the department.
- Tell the team if pregnant or possibly pregnant — any chance of pregnancy should be disclosed before a fluoroscopy exam.
- Contrast allergy history is reviewed.
- Facilities may ask diabetic patients to contact the radiology department ahead of the appointment (institutional policy — confirm locally).
- The exam is usually completed within about 30 minutes, and the contrast is passed out in the bowel movements over the following days.
The T-Tube Cholangiogram Procedure — Step by Step
Step 1: Scout images
Obtain overhead and digital scout views over the T-tube before any contrast is injected, so the resting duct and tube position are documented first.
Step 2: Minimize air bubbles
Air is the technologist's enemy here — trapped bubbles cause false filling defects that mimic stones. Prime the tubing and inject gently to keep the system bubble-free.
Step 3: Small initial injection + spot
Inject an initial 2 to 5 cc of contrast and acquire a digital image. This small dose fills the duct enough to begin evaluating without over-distending it.
Step 4: AP and both obliques
Document the duct in an AP and both oblique projections so overlapping ducts, stones, and leaks are not hidden behind one another.
Step 5: Confirm duodenal drainage
The study is not considered diagnostic until contrast is shown entering the duodenum. This confirms the duct is patent downstream.
Step 6: 5-minute delayed image
A delayed image after about five minutes can help document that contrast actually drains into the duodenum rather than pooling.
Step 7: If contrast does not drain
Try to withdraw the contrast as much as possible rather than injecting more, and alert the physician — poor drainage is a finding, not a cue to push harder.
Safety Callout: Slow, Gentle Injection
T-tube cholangiography can be dangerous if done aggressively. Contrast must be sterile and injected slowly and gently to avoid overfilling the ducts and producing ascending cholangitis and bacteremia. Watch the fluoroscopic image and the patient for the overfilling signs below, stop injecting, and aspirate if they appear. Some centers use a slow drip infusion under gravity or a manometer to keep duct pressure low.
Signs of Duct Overfilling — Stop and Aspirate
| Sign / symptom | What it suggests |
|---|---|
| Right upper quadrant fullness or pain | Duct distension from pressure |
| Reflux into the pancreatic duct | Pressure too high; flow went the wrong way |
| Flow into the duodenum stops | Sphincter of Oddi spasm triggered by over-distension |
| Bile ducts dilate during the study | Overfilling / outflow not keeping up |
| Peripheral 4th–5th order radicals fill in the liver | Contrast pushed further upstream than intended |
| Contrast runs along the outside of the long arm of the T-tube | Possible tube displacement / leak of contrast around it |
If any of these appear, stop the injection immediately and aspirate contrast back if possible. For liver-transplant patients, some centers use an open manometer and keep duct pressure at or below 30 cm H₂O — confirm your facility's protocol.
Fluoroscopy Technique and Radiation Safety
- Pulsed fluoroscopy and the lowest practical frame rate keep beam-on time and dose down during a guided injection.
- Tight collimation to the right upper quadrant region of interest; use last-image-hold and avoid unnecessary magnification.
- Shielding: lead apron, thyroid shield, and lead glasses/goggles for staff; wear your dosimeter; keep out of the primary beam.
- Capture spot radiographs as the injection progresses instead of running continuous fluoroscopy to watch contrast move.
- Mind total fluoroscopy time and dose — ALARA is a team responsibility during every injection.
See Fluoroscopy Procedures and Safety: A Complete Guide for Rad Techs for dose-management fundamentals, and Contrast Extravasation and Adverse Reaction Management for iodinated-reaction and extravasation response.
Normal vs. Abnormal Findings

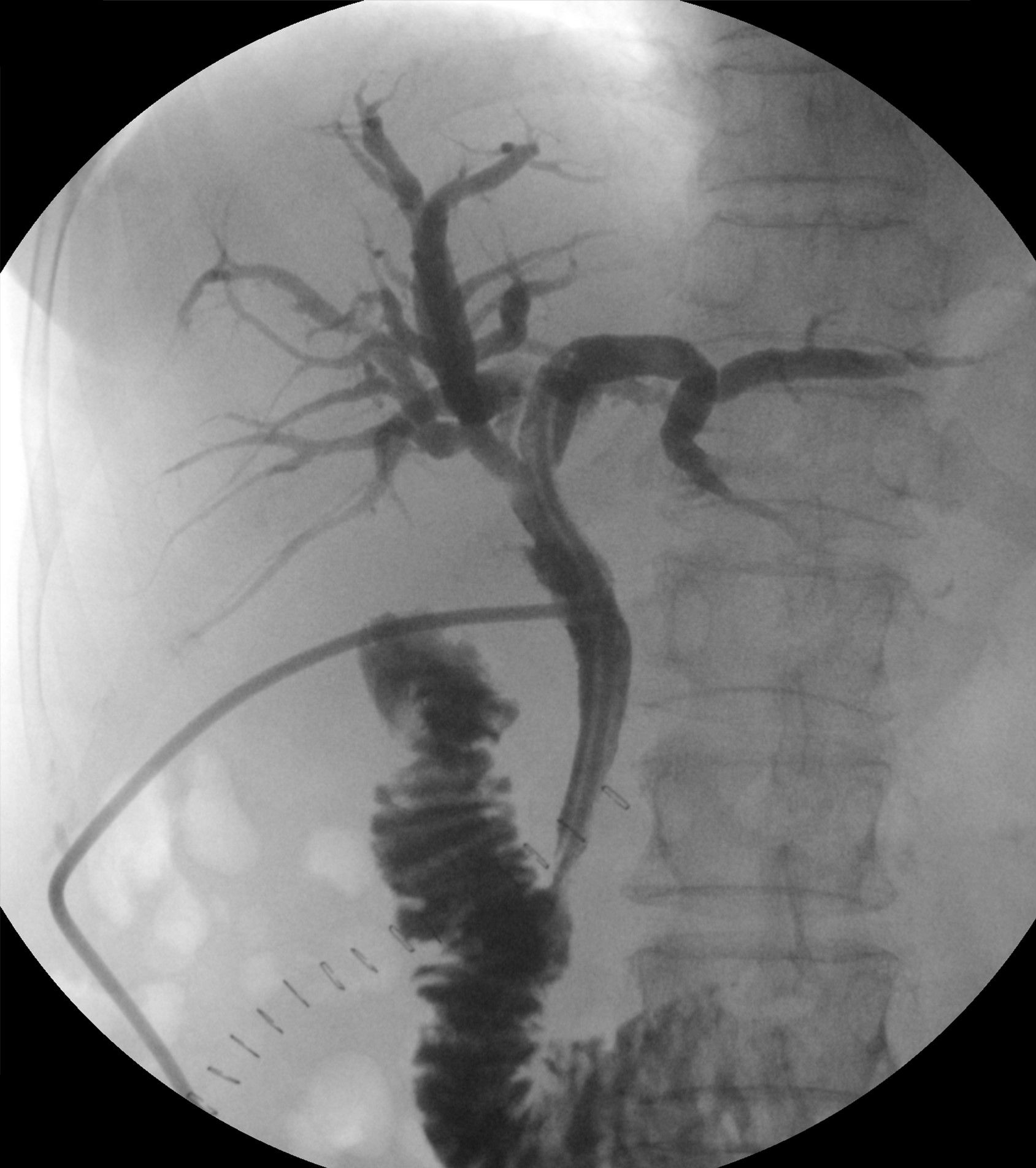

- Normal — smooth, non-dilated common bile duct that fills symmetrically and drains freely into the duodenum, with no filling defects and no contrast outside the duct.
- Retained stone — a filling defect within the contrast-filled duct. A stone may be mobile but does not float upward the way a bubble does; confirm in multiple obliques.
- Air bubble (artifact) — a round filling defect that floats and shifts with patient movement. The technologist's bubble-flushing reduces this false finding.
- Stricture / obstruction — narrowing or abrupt cut-off of the contrast column, with proximal duct dilation.
- Bile leak — contrast pooling outside the expected duct contour.
How Accurate Is It? (Current Evidence)
When a T-tube is already in place, T-tube cholangiography provides a direct fluoroscopic screening option for residual stones before tube removal, but it is imperfect. A 2024 retrospective study (BMC Gastroenterology 24:383) reviewed 287 patients who had common bile-duct exploration with T-tube drainage, comparing T-tube cholangiography with choledochoscopy roughly 6–8 weeks post-surgery:
- T-tube cholangiography flagged residual stones in 38 patients; choledochoscopy confirmed them in 29.
- Of the 249 patients whose cholangiogram showed no residual stone, 11 were later found to have retained stones on choledochoscopy.
So cholangiography caught most residual stones but over-called some and missed a minority. The takeaway for the technologist: produce well-documented, multi-view, properly drained studies, because the images are the basis for a real clinical decision. The authors also note the utility of routine cholangiography before every T-tube removal warrants further study.
T-Tube Cholangiogram vs. ERCP vs. MRCP
| Study | Contrast / access | Best for |
|---|---|---|
| T-tube cholangiogram (fluoroscopy) | Water-soluble iodinated, antegrade through an existing surgical drain | Post-op confirmation of duct clearance and drainage before T-tube removal |
| ERCP (endoscope + fluoroscopy) | Iodinated, retrograde via a cannulated ampulla of Vater | Diagnosing AND treating — stone extraction, stenting, sphincterotomy |
| MRCP (MRI, no contrast) | None (heavily T2-weighted duct imaging) | Noninvasive diagnostic duct anatomy and stones, no radiation |
Read the full breakdown in ERCP: Procedure, Contrast & Safety for Rad Techs. For a noninvasive duct look, MRCP avoids radiation altogether — see how fluoroscopy procedures compare in general in our fluoroscopy safety guide.
Contraindications and When to Hold
- No T-tube in place — the exam requires the existing surgical drain; without it another approach (ERCP/MRCP) is used.
- Known iodinated-contrast allergy — managed with the usual reaction protocols before iodinated contrast is instilled.
- Obstructed ducts — a higher risk of ascending cholangitis; injection must be particularly gentle and drainage planned carefully.
Complications and Safety
- Ascending cholangitis and bacteremia are the serious complications, most likely when injection is too forceful or the duct is already blocked by stones or tumor. Gentle injection and prompt external drainage (through the open T-tube) reduce this risk.
- Duct overfilling — pressure-related, recognized and reversed by the signs above.
- Iodinated contrast reaction — same recognition and management as elsewhere in the department.
- Radiation exposure to patient and staff — minimized by the ALARA technique described earlier.
Frequently Asked Questions
What is a T-tube cholangiogram?
A fluoroscopic study in which water-soluble iodinated contrast is injected gently through a temporary T-shaped drain left in the common bile duct after biliary surgery, to check the duct for retained stones, obstruction, or leaks and to confirm contrast drains into the duodenum before the tube is removed.
Is barium used for a T-tube cholangiogram?
No. Only water-soluble iodinated contrast (typically a nonionic agent) is used. Barium is designed for the GI tract lumen and is retained and dangerous if it enters a duct system or the abdomen.
Why must contrast be injected slowly?
Forcing contrast in too fast can overfill the ducts, reflux into the pancreatic duct, or push bile and bacteria retrograde upstream — the mechanism behind the serious complications of ascending cholangitis and bacteremia. The study is deliberately a slow, gentle, monitored instillation.
How can you tell an air bubble from a retained stone?
An air bubble is a round filling defect that floats and shifts with movement, whereas a retained stone tends to stay put (though not always). Flushing air from the system early, and confirming in multiple oblique views, reduces bubble artifacts being misread as stones. Cholangiography can still over- or under-report stones, so correlation with choledochoscopy or MRCP may be used.
How long does a T-tube cholangiogram take?
The exam is usually completed within about 30 minutes. There is generally no fasting, and the contrast is passed out over the following days.
