kVp & mAs Explained: The 15% Rule & Exposure Factors

📅 Updated September 3, 2026 📖 12 min read 🏷️ Physics

kVp (kilovoltage peak) and mAs (milliampere-seconds) shape X-ray production, receptor exposure, image noise and patient dose. Their effects must be described differently for film-screen and digital radiography: film optical density tracked exposure, whereas digital processing can normalize brightness and contrast over a wide exposure range.

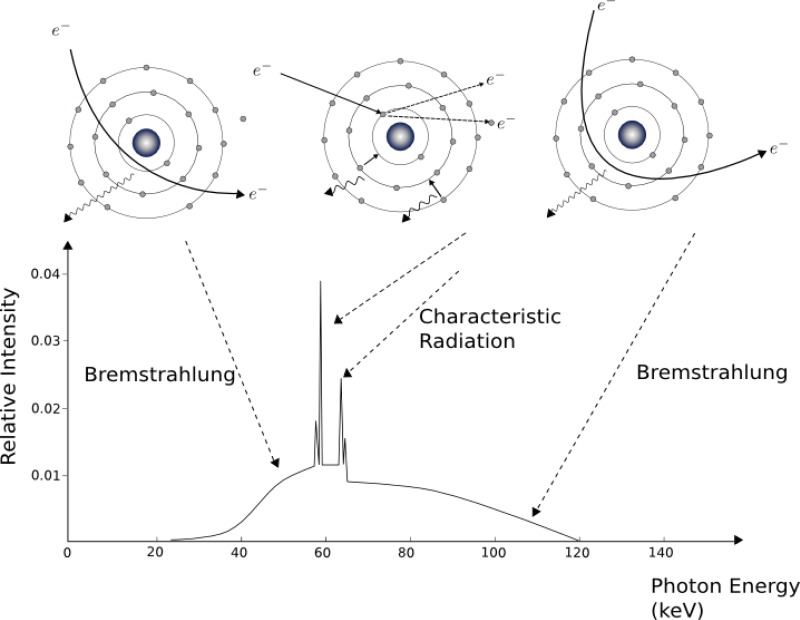

Tungsten X-ray spectrum showing continuous bremsstrahlung radiation and characteristic peaks — A tungsten spectrum contains a continuous bremsstrahlung distribution plus characteristic peaks. kVp changes the endpoint energy and spectrum; mAs primarily scales photon output when other factors are fixed. (CC BY-SA 4.0, Maier A, Steidl S, Christlein V, et al., NCBI Bookshelf)

💡 Digital-language checkpoint: Do not use displayed brightness as a dose meter. In a processed digital image, insufficient receptor exposure is more likely to appear as excessive quantum noise, while excessive exposure may look acceptable but deliver unnecessary patient dose ("exposure creep"). Review anatomy, noise, collimation and the correctly interpreted exposure indicator.

What kVp and mAs Actually Control

kVp is the peak potential difference across the X-ray tube. It sets the maximum photon energy and strongly influences the energy spectrum, penetration and tube output. Average energy is not a fixed percentage of kVp: it also depends on generator waveform, target, filtration and beam geometry. Beam quality is commonly characterized with half-value layer (HVL), but average energy and HVL are not the same quantity.

mAs = mA × time. At fixed kVp, waveform, filtration and geometry, X-ray output and incident air kerma are approximately proportional to mAs. Doubling mAs therefore approximately doubles receptor exposure and patient air kerma under those unchanged conditions. It does not guarantee that every organ dose is exactly doubled in every clinical situation.

Change	Beam/receptor effect	Digital image effect	Dose implication
Increase kVp	Higher endpoint energy, penetration and output; usually more scatter reaches the receptor	Generally lower subject contrast; processing strongly affects displayed contrast	Increases output per mAs; net patient-dose change depends on any mAs compensation and the examination
Increase mAs	Approximately proportional increase in photon fluence and receptor exposure	Usually less quantum noise; brightness may be normalized by processing	Approximately proportional increase when other factors are fixed
Increase SID	Lower unattenuated intensity at the receptor by inverse square law	May reduce receptor exposure unless mAs is compensated	Not a simple inverse-square prediction for the patient; source-to-skin distance and compensation matter

Contrast, Brightness and Noise: Film Versus Digital

Increasing kVp generally decreases subject contrast for a given patient and projection because penetration rises and attenuation differences change. It can also increase scatter. In digital radiography, however, displayed contrast and brightness are strongly controlled by detector response, examination processing, rescaling and windowing. kVp is therefore not a simple display-contrast knob, and mAs is not a digital brightness knob. See our digital image processing guide for how LUTs, histograms and post-processing algorithms reshape the final image.

At a fixed spectrum and geometry, more receptor exposure usually improves signal-to-noise ratio by reducing relative quantum noise; less exposure increases the risk that quantum mottle obscures low-contrast detail. Excess exposure does not necessarily make the displayed image darker, so visual appearance alone cannot reveal dose.

⚠️ Before repeating a digital image: Check positioning, collimation, processing/exam selection, artifacts, anatomy visibility and the exposure indicator. Do not automatically double mAs because an image looks light, or change kVp solely because display contrast looks flat.

The 15% Rule—and Its Limits

The traditional 15% rule says that increasing kVp by about 15% may produce roughly twice the receptor exposure, similar to doubling mAs; halving mAs may then keep receptor exposure approximately similar. This is a useful teaching and starting heuristic, not a physical constant.

For example, a starting technique of 70 kVp and 20 mAs gives a heuristic compensated technique near 80.5 kVp and 10 mAs. Do not promise identical receptor exposure or a fixed dose reduction. Generator waveform, filtration, patient thickness and composition, field size, grid, detector and projection all change the result. Also, reversing a 15% increase requires division by 1.15 (about a 13% decrease), not blindly subtracting 15%.

Heuristic change	Expected receptor exposure	What must be verified
About +15% kVp, same mAs	May rise to roughly 2×	Actual EI/DI, noise, contrast, saturation/clipping and patient-dose metric
About +15% kVp, half mAs	May remain approximately similar	Diagnostic quality and protocol-specific dose; reduction is not guaranteed to be 50%
Return to original kVp, double mAs	May remain approximately similar	Use the original value or divide by 1.15; do not treat “−15%” as the exact inverse

Distance and SID Compensation

For a point-source approximation in free air, intensity follows I ∝ 1/d². To maintain receptor exposure after changing SID while other geometry and attenuation remain comparable:

mAs₂ = mAs₁ × (SID₂ / SID₁)²

Changing from 100 cm to 180 cm therefore calls for a theoretical factor of 3.24. This calculation applies to receptor intensity—not directly to patient dose. Patient thickness, source-to-skin distance, magnification, field coverage, air gap, grid and AEC can alter the clinical outcome. Use the approved chart for the new SID.

Grids and Bucky Factors

An anti-scatter grid can improve contrast by removing scatter, but it also absorbs some primary radiation. Maintaining receptor exposure usually requires more mAs and therefore generally increases patient dose. Grid need depends on patient/part thickness, field size, kVp, detector and the clinical task—not simply on a body-part label. See our radiographic grids and scatter control guide for a full treatment of grid ratio, frequency, cutoff artifacts and air-gap technique.

Change	Approximate exposure conversion sometimes taught	Safety limit
No grid → 5:1 grid	Bucky factor about 2	Illustrative only. Actual grid conversion factors depend on grid design, kVp and scatter conditions. Use manufacturer/facility data and verify EI/DI.
No grid → 6:1 grid	About 3
No grid → 8:1 grid	About 4
No grid → 12:1 grid	About 5
No grid → 16:1 grid	About 6	Illustrative only; verify the actual factor for the grid and beam conditions.

Grid cutoff from off-centering, wrong SID, tilt or an inverted focused grid cannot be corrected safely by adding mAs; correct the alignment. In pediatrics and small/thin parts, avoiding an unnecessary grid can substantially reduce dose.

Automatic Exposure Control (AEC)

AEC terminates the exposure when the selected detector chamber(s) receive the system's preset signal. It is not automatic optimization and does not make positioning or technique selection optional. Select the correct chamber, place the anatomy over it, collimate appropriately, choose the approved kVp, and account for prostheses, pathology, contrast media or shielding that may cover a chamber. Use density-control settings only according to the validated protocol. For chamber selection by anatomy, backup timer safety limits and common AEC pitfalls, read our full automatic exposure control guide.

AEC exposure time and mAs can change with patient attenuation, SID, grid and kVp. Confirm backup-time/backup-mAs limits and minimum response time through the facility's quality-control program. AEC should never be relied on to rescue poor positioning or an unsuitable technique.

Exposure Index (EI) and Deviation Index (DI)

EI is an indicator related to detector exposure in a defined relevant image region; it is not patient dose. Values and direction historically varied by manufacturer, and even systems using the IEC standardized EI require correct segmentation, calibration, exam selection and a facility-approved target exposure index (EI_T).

For the standardized system, DI = 10 log₁₀(EI / EI_T). DI 0 means EI equals the target; about +3 means twice the target detector exposure and about −3 means half. These are detector-exposure statements, not proof that patient dose doubled or halved. Compare EI/DI only with the target range for that detector, examination and projection; investigate trends rather than treating one number as a pass/fail verdict.

Technique Charts, Patient Size and Dose

A safe technique chart is specific to the room, generator, detector, examination, projection, SID, grid/AEC configuration and patient-size or measured-thickness category. It should be developed and validated with the radiologist and qualified medical physicist, then reviewed using image-quality assessment, reject analysis, EI/DI distributions and available patient-dose metrics.

Do not substitute fixed “small/large adult” weight percentages or a blanket pediatric reduction for a validated chart. Children vary greatly in thickness, and protocols should be size based, tightly collimated and avoid grids when they are not needed. For every patient, choose factors that achieve the required diagnostic task—not merely the lowest numerical exposure.

At fixed kVp and geometry, patient air kerma is approximately proportional to mAs. There is no universal kVp² law for patient dose. Raising kVp and reducing mAs can lower entrance-surface air kerma for some tasks, but it also changes subject contrast, scatter and organ-dose distribution. Optimization is examination specific.

Motion and Tube Loading

When motion is a concern, shortening exposure time can reduce motion blur. If the same mAs is needed, increasing mA while reducing time preserves nominal mAs—but only within generator, focal-spot and tube-rating limits. Higher mA can require the large focal spot, which may reduce spatial resolution.

🔥 Tube-safety checkpoint: Do not select the shortest time or highest mA blindly. Check the tube rating chart, anode heat units and cooling chart, especially for repeated exposures. Heat-unit calculations depend on generator waveform and manufacturer specifications; follow equipment limits and local protocol.

Common Errors to Avoid

Film language on digital images: use receptor exposure, EI/DI, SNR and noise rather than equating mAs with displayed density.
Unsafe absolutes: mAs proportionality assumes unchanged conditions; 15% and Bucky factors are approximations; kVp has no universal dose exponent.
Brightness-based repeats: processing can mask overexposure and change display appearance.
EI as patient dose: EI describes detector exposure and can be misleading after poor segmentation, cropping, processing or exam selection.
Uncritical AEC use: incorrect chamber choice or anatomy placement can terminate too early or too late.
SID shortcuts: apply the square-law equation to receptor exposure, then use the facility chart; do not label it a direct patient-dose law.

Summary

kVp changes spectrum, penetration, output, subject contrast and scatter.
mAs approximately scales photon output, receptor exposure and patient air kerma when other factors are fixed.
Digital display is decoupled from exposure: assess noise, anatomy, processing and EI/DI—not brightness alone.
The 15% rule is approximate: validate any compensated change; never promise identical exposure or a fixed dose saving.
SID, grids and AEC require geometry- and system-specific technique adjustments.
Optimization means adequate diagnostic quality at appropriate dose using validated protocols, not universally maximizing kVp or minimizing mAs.

Frequently Asked Questions

What is the difference between kVp and mAs?

kVp sets peak tube voltage and strongly affects spectrum, penetration, output and subject contrast. At fixed kVp and geometry, mAs approximately scales photon output. In digital radiography, processing largely determines displayed brightness and contrast; receptor exposure chiefly affects signal-to-noise ratio, quantum noise and the exposure indicator.

What is the 15% rule?

It is an approximate film-era heuristic: about 15% more kVp may yield roughly twice the receptor exposure, allowing mAs to be halved as a starting compensation. It is not universal; verify against the departmental chart and exposure indicators.

How does kVp affect contrast?

Increasing kVp generally reduces subject contrast and often increases scatter for a given patient and projection. Digital processing and windowing also strongly control displayed contrast.

What happens when mAs increases?

With other conditions unchanged, tube output and receptor exposure rise approximately in proportion, quantum noise generally falls, and patient air kerma rises approximately in proportion. The processed image may not look darker.

How should a technique chart be built?

Build and validate a facility-, detector- and examination-specific chart with radiologist and medical-physics oversight. Include projection, thickness/size, SID, grid and AEC configuration, and monitor image quality, rejects, EI/DI and dose metrics.

How do kVp and mAs affect patient dose?

Under fixed conditions, dose quantities are often approximately proportional to mAs. kVp changes output, penetration, scatter and organ-dose distribution, so there is no universal kVp-squared patient-dose law. Compensated high-kVp techniques are protocol dependent.

Knowledge Check

A processed DR image is too bright. Should you automatically increase mAs? No. First assess processing/exam selection, positioning, anatomy, noise and EI/DI; brightness is not a reliable exposure indicator.
Does DI +3 mean the patient's dose doubled? No. In the standardized system it means EI is about twice EI_T; EI is not patient dose.
If SID changes from 100 to 180 cm, what theoretical mAs factor preserves receptor exposure? (180/100)² = 3.24, subject to clinical geometry and protocol verification.
Does +15% kVp with half mAs guarantee 50% lower patient dose? No. It is a starting heuristic; exposure and dose effects are system-, patient- and examination-dependent.

Authoritative References

Automatic Exposure Control (AEC) — Chamber selection, backup timer safety, density controls, and exam-specific AEC protocols.
Radiographic Grids and Scatter Control — Grid ratio, frequency, cutoff artifacts, air-gap technique, and dose trade-offs.
Digital Image Processing in Radiography — LUTs, histograms, windowing, and post-processing algorithms.
Exposure Technique Charts — How to build and validate facility-specific technique charts.
X-Ray Physics Made Simple — Foundational physics concepts for radiologic technologists.

About the author: This educational guide was prepared by the Radiography 101 Clinical Team and revised against the IAEA diagnostic-radiology physics and radiation-protection handbooks, AAPM TG-116 and applicable U.S. radiographic-equipment requirements. Follow local protocols and qualified medical-physics guidance.
