Digital vs Computed Radiography: Key Differences
If you're starting clinical rotations or preparing for the ARRT exam, one question you'll encounter early is: what's the difference between digital radiography (DR) and computed radiography (CR)? Both technologies replaced film-screen radiography, but they work in fundamentally different ways — and the distinction matters for everything from radiation safety to daily workflow.
In this guide, we'll compare DR and CR across the dimensions that matter most to radiologic technologists: how they work, image quality, workflow speed, dose efficiency, equipment costs, artifact patterns, and how each affects your responsibilities in the clinical setting. Whether you're a student trying to understand what you'll see in the department or a practicing tech evaluating a system upgrade, this comparison has you covered.
How DR and CR Work: The Core Technology
Before we dive into comparisons, you need to understand the fundamental technology behind each system.
Computed Radiography (CR)
CR uses a photostimulable phosphor (PSP) imaging plate, commonly housed in a cassette. X-ray absorption stores part of the deposited energy in metastable electron traps, forming a latent image. In the CR reader, a laser scans the plate; the emitted photostimulated luminescence is collected and measured (classically by a photomultiplier), digitized and processed. Bright-light erasure reduces residual signal before reuse. Plate life is not a guaranteed number of cycles: handling, contamination, scratches, reader transport and the manufacturer's inspection criteria determine when a plate must be cleaned or replaced.
The key point: CR requires two steps — expose the cassette, then process it in a reader. You cannot see the image until the cassette is read.
Digital Radiography (DR)

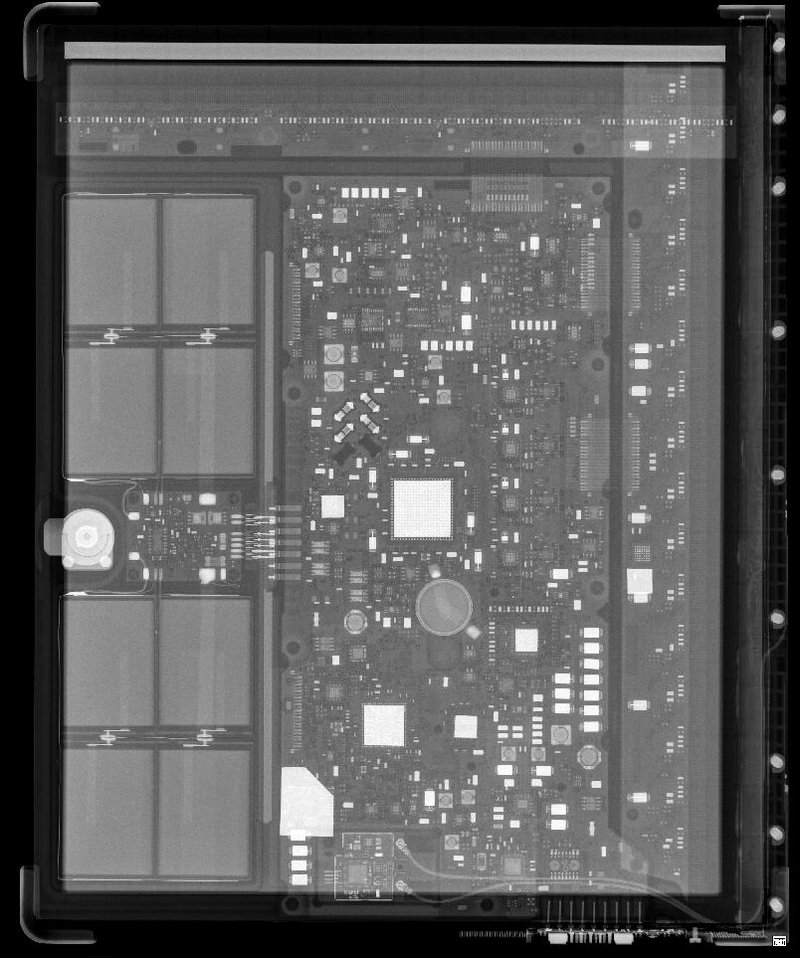

Modern general-radiography DR commonly uses an integrated or cassette-sized portable flat-panel detector. Other direct digital receptor designs, including CCD/CMOS-based systems, also exist. Two flat-panel conversion paths are:
- Indirect conversion: a scintillator, commonly needle-structured cesium iodide or a powder phosphor such as gadolinium oxysulfide, converts X-rays to light; photodiodes convert the light to charge, which is read out electronically.
- Direct conversion: a photoconductor, commonly amorphous selenium, converts absorbed X-ray energy to charge under an applied electric field, without a light-conversion stage.
DR normally makes an image available sooner because there is no separate plate-transport and scanning step. Display time varies with detector, preview processing, wireless/network transfer and system configuration. Portable DR panels still require careful positioning, infection control, charging and physical handling.
DR vs CR: Head-to-Head Comparison
| Feature | Digital Radiography (DR) | Computed Radiography (CR) |
|---|---|---|
| Image Capture | Usually a flat-panel detector; electronic readout at the acquisition system | PSP imaging plate; separate reader scans the latent image |
| Workflow | Usually faster; portable panels still require handling | Additional transport, plate scanning and erasure steps; time is reader-dependent |
| Detective Quantum Efficiency (DQE) | Often higher for modern flat panels, but depends on detector, beam quality and spatial frequency | Often lower for conventional powder-PSP CR; needle-PSP designs may perform differently |
| Spatial Resolution | Sampling limit is set principally by pixel pitch; effective resolution is described by MTF | Sampling depends on reader sampling pitch/laser scan and plate; effective resolution is described by MTF |
| Patient Dose | May permit dose reduction after task-specific protocol optimization | May require more detector exposure than a higher-DQE DR system for the same task; not universally higher patient dose |
| Portability | Wireless/mobile panels widely available; panel size, weight, battery and robustness vary | Cassette flexibility, but plates must reach a reader before review |
| Equipment Cost | No universal price range: configuration, market, service contract, integration and replacement risk dominate lifecycle cost | |
| Maintenance | Detector calibration, bad-pixel/flat-field QC, batteries and damage/service management | Reader mechanics/optics plus plate cleaning, inspection, erasure and replacement |
| Cassette/Detector Durability | Portable-panel damage can be costly; durability is model-dependent | Cassettes protect plates, but plate wear, dirt and scratches are important |
| Artifact Patterns | Dead pixels, grid line aliasing, image lag | Plate scratches, erasure artifacts, dust lines, ghosting |
Workflow and Throughput: Why Speed Matters
The most tangible difference between DR and CR in daily practice is workflow speed. In a busy emergency department, that difference can add up fast.
Consider a portable chest radiograph. With wireless DR, the technologist can usually review a preview at the mobile unit soon after exposure and decide whether the image meets technical and positioning criteria before leaving. Transfer to PACS is a separate network step and is not necessarily simultaneous with preview display.
With CR, the sequence includes transporting the cassette to an available reader, scanning the plate and reviewing the processed image. If a repeat is justified, the patient may need to be revisited. The actual delay and throughput difference depend on reader location and speed, staffing, number of plates, network performance and workflow; fixed “seconds per image” and “minutes per repeat” are not universal specifications.
Portable Radiography: A Local Workflow Decision
CR can reuse existing mobile units and one reader can support multiple rooms, but the reader is also a potential bottleneck and images cannot be checked at bedside. Wireless DR provides rapid bedside review but adds battery, connectivity, infection-control and detector-damage considerations. Purchase prices and replacement costs change by country, contract, detector size and vendor; current quotations and total-cost-of-ownership analysis are more reliable than generic dollar ranges.
Image Quality: Can You Tell the Difference?
Either technology can produce diagnostically acceptable general radiographs when the receptor, technique, processing, display and quality-control program are appropriate. Image quality is task-specific, so appearance alone cannot establish which receptor was used. Relevant physical characteristics include:
- Noise and low-contrast performance: DQE describes transfer of input signal-to-noise ratio, but visibility also depends on dose, scatter, processing, display and the diagnostic task.
- Spatial resolution: pixel or sampling pitch sets a Nyquist limit; presampling modulation transfer function (MTF) better describes contrast transfer with spatial frequency. Direct conversion can reduce lateral light spread, but it does not guarantee superior system resolution.
- Exposure latitude: both CR and DR have wide useful detector-response ranges compared with film-screen. This helps avoid saturation but does not rescue motion, poor positioning or lost anatomy, and it can conceal overexposure after display processing.
DQE is a function of spatial frequency and specified beam quality, not a single permanent percentage. Many modern flat panels outperform conventional powder-PSP CR over clinically relevant conditions, but receptor designs overlap and specialized needle-PSP CR exists. Compare manufacturer-independent measurements made under the same IEC conditions rather than applying one numeric range to every system.
Dose Efficiency, Exposure Indicators and Dose Creep
Detective quantum efficiency (DQE) expresses how well a detector preserves signal-to-noise ratio from its input to output under stated measurement conditions. Higher DQE can support a lower detector air kerma for a specified imaging task, but it is not itself a patient-dose value. Patient size, projection, kVp/mAs or AEC setup, filtration, collimation, grid use, source-to-image distance, repeats and required image quality all matter.
Therefore, no defensible universal “30–50%” reduction follows from replacing CR with DR. Published reductions are examination-, system- and protocol-specific. A higher-DQE detector creates an opportunity to optimize technique; keeping the old technique may preserve or increase exposure. Optimization means obtaining adequate diagnostic information with patient exposure that is as low as reasonably achievable, not choosing a detector label in isolation.
Because digital processing can make overexposed images look acceptable, CR and DR are both vulnerable to gradual dose creep. Monitor the standardized exposure index (EI), which estimates air kerma incident on the image receptor in the relevant image region, and the deviation index (DI), which compares EI with the facility-selected target exposure index (EIT): DI = 10 log10(EI/EIT). Thus DI +3 is about twice the target receptor exposure and DI −3 about half. EI is not patient dose, and DI is not a pass/fail image-quality score. Incorrect anatomy selection, collimation, segmentation, shielding/prostheses in the analysis region and vendor implementation can bias the values. Facilities should set task- and patient-size-appropriate targets with radiologist/physicist input and trend distributions rather than repeat solely to correct EI or DI.
Cost and Practical Considerations
For department managers deciding between DR and CR, the trade-offs are complex:
| Consideration | DR | CR |
|---|---|---|
| Initial investment per room | Obtain current, locally comparable quotations; room work, integration and service scope can dominate | |
| Multiple room setup | Fixed rooms need a receptor; portable detectors may be shared if workflow and compatibility allow | One reader can serve several rooms, but reader capacity and failure become shared constraints |
| Upgrade path for old rooms | Cassette-sized retrofit detectors may avoid complete room replacement; integration varies | Often compatible with existing cassette holders, subject to sizing, generator and workflow checks |
| Cassette/detector replacement | Contract- and model-dependent; include batteries, accidental damage and spares | Contract- and model-dependent; include plates, cassettes, cleaning and reader support |
| Technologist training | System operation, detector care, processing, EI/DI and QC training required | Reader/plate handling, processing, exposure indicators, erasure and QC training required |
| Downtime risk | Impact depends on fixed versus shareable detectors and available backup | A shared reader failure may affect multiple rooms; plates and reader are both dependencies |
DR and CR Artifacts: What to Watch For
Both technologies have characteristic artifacts to recognize in clinical practice and quality control:
CR Artifacts
- Plate damage and contamination: scratches, cracks, dirt or foreign material can produce lines or localized defects; appearance and polarity depend on where the defect occurs and image processing.
- Incomplete erasure/ghosting: residual signal from a previous or unusually large exposure may remain if erasure is inadequate. Follow the manufacturer's erasure and plate-retirement procedures; do not assume every ghost is a damaged plate.
- Reader contamination or malfunction: dirt on the light-collection path can create a line along the plate-travel direction; transport, laser or electronic faults can cause bands, lines or shading.
- Moiré/aliasing: can arise when a stationary grid's line frequency and orientation interact with the CR sampling scan. Lower-frequency grids are generally at greater aliasing risk; use compatible grids and the orientation specified by the system manufacturer.
- Backscatter and environmental exposure: cassette backscatter, unintended radiation, prolonged storage and plate fading can alter the image. CR plates may need prescribed erasure after storage.
DR Artifacts
- Defective detector elements: pixels, lines or clusters may be corrected by a defect map; growth beyond manufacturer or physicist acceptance criteria requires service.
- Lag/ghosting: residual response from a previous exposure can occur in flat-panel systems; its severity and correction are detector- and exposure-dependent.
- Grid aliasing: a stationary grid can interact with detector sampling; a moving Bucky can blur grid lines but does not guarantee elimination under every condition.
- Calibration/processing artifacts: stale or incorrect offset/gain calibration, segmentation errors, stitching errors, saturation and detector damage can produce nonuniformity or missing/misrepresented anatomy. Follow vendor QC and medical-physicist testing rather than diagnosing every blotch as “scintillator delamination.”
Does Detector Technology Affect Positioning?
Anatomical positioning goals do not change merely because the receptor is CR or DR. However, detector dimensions, active-image area, automatic exposure-control geometry, grid requirements and mobile-panel handling can affect practical setup. Follow the current departmental protocol and equipment instructions rather than assuming one centering distance or tube angle applies to every patient.
Rapid DR preview helps identify positioning or motion problems before the patient leaves, but it should not encourage casual “re-shooting.” Repeat only when the image is not adequate for the clinical purpose, document according to policy, and include repeats in quality-improvement analysis.
The Future: Where Are DR and CR Headed?
Flat-panel DR has displaced CR in many new general-radiography installations, while CR remains in service where cassette compatibility, existing investment or limited workload makes replacement less urgent. No authoritative global source supports a timeless percentage of sales or a universal adoption pattern. Local procurement, service availability and regulation differ. Possible CR roles include:
- Retrofitting existing equipment where cassette-sized plates remain compatible
- Low-volume or specialized workflows after a local lifecycle-cost and service assessment
- Contingency use where a maintained, quality-controlled reader and usable plates are already available
Some DR systems support dual-energy subtraction. Designs may use rapid exposures at different energies or multilayer/sandwich detectors, so “two exposures” is not universal. Photon-counting X-ray detectors are an active area of development and clinical use in some modalities, but adoption in projection radiography is application- and product-specific. Avoid treating either feature as standard on all DR equipment or declaring that CR has had no innovation over an arbitrary period.
Summary
Here's what every rad tech student needs to remember about DR vs CR:
- CR stores a latent image on a reusable PSP plate that must be scanned and erased in a reader.
- Modern DR reads a detector electronically without a separate CR-reader step; indirect and direct conversion describe different flat-panel physics.
- Workflow: DR generally provides faster preview, while actual timing, portability and downtime depend on the installed system.
- Image quality and dose: DQE and MTF depend on detector and measurement conditions. DR may enable dose reduction, but detector type never guarantees a fixed percentage.
- Exposure management: both systems can conceal overexposure. Trend standardized EI/DI, optimize protocols and never treat EI as patient dose.
- Selection: use clinical tasks, workload, infrastructure, QC/service support and lifecycle cost—not unsupported universal prices or adoption claims.
For more on digital imaging technology, explore the X-Ray modality page or read about X-ray physics fundamentals. And check out our comparison of CT vs MRI for another modality deep-dive.
Authoritative Sources
- AAPM Task Group 116, An Exposure Indicator for Digital Radiography — standardized EI/DI concepts, interpretation and limitations.
- IAEA, Diagnostic Radiology Physics: A Handbook for Teachers and Students — digital receptor physics, image quality, dose and quality assurance.
- U.S. FDA, Initiative to Reduce Unnecessary Radiation Exposure from Medical Imaging — justification, dose optimization, quality assurance and dose-management principles.
- NEMA, current DICOM Standard — standardized radiographic exposure-index attributes and interchange definitions.
- Uffmann & Schaefer-Prokop, “Digital radiography: the balance between image quality and required radiation dose”, European Journal of Radiology (2009).
- Seibert, “Flat-panel detectors: how much better are they?”, Pediatric Radiology (2006).
- Walz-Flannigan et al., “Artifacts found during quality assurance testing of computed radiography and digital radiography detectors”, Journal of Digital Imaging (2008).
