Radiographic Grids & Scatter Control: 5 Critical Concepts (Ratio, Cutoff, Air-Gap)
Why Every Rad Tech Needs to Understand Grids
During an exposure, the primary beam enters the patient. Some photons are transmitted without interaction; others interact, and some interactions produce scattered radiation. In general diagnostic radiography, Compton interactions are the principal source of scatter that reaches the image receptor.
Scatter reaching the receptor adds a broad, unwanted signal. It reduces subject contrast and can reduce contrast-to-noise ratio, making low-contrast anatomy or pathology harder to detect. Its effect depends on patient thickness and composition, field size, beam quality, projection, and detector geometry.
One important scatter-control device is the radiographic grid.
An anti-scatter grid is placed between the patient and image receptor. Like microscopic venetian blinds, its lead strips preferentially absorb obliquely traveling scattered photons while the interspaces transmit much of the correctly aligned primary beam. A grid can improve contrast, but it does not inherently improve geometric sharpness and it also attenuates some primary radiation.
This guide covers everything you need to know about radiographic grids for the ARRT registry and clinical practice — grid types, ratios, the Bucky factor, common pitfalls like grid cutoff, and when to use (or skip) the grid.
ARRT Exam Connection
Grid construction, scatter control, exposure considerations, and grid-alignment errors are relevant radiography physics concepts. Current examination blueprints can change and do not necessarily assign a published question count to grids, so use the current official ARRT content specifications rather than relying on a promised number of questions.
How Scatter Radiation Destroys Image Quality
Before we talk about grids, you need to understand what they're fighting.
At diagnostic energies, photons may pass through without interaction or undergo interactions that include:
- Photoelectric absorption — the incident photon is completely absorbed; differences in attenuation contribute to subject contrast
- Compton scattering — the incident photon transfers part of its energy and changes direction; some scattered photons reach the receptor
- Coherent scattering — a lower-probability interaction in which direction changes without ionization
- Transmission without interaction — photons emerging along their original paths contribute to the primary (remnant) signal
Increasing irradiated thickness or field size generally increases the amount and fraction of scatter reaching the receptor. Scatter is broadly distributed in direction; the portion that reaches the receptor adds signal that poorly preserves local anatomic information.
The result is a loss of radiographic contrast: differences in receptor signal from adjacent structures become smaller, which can make subtle findings harder to detect.
Factors That Increase Scatter
| Factor | Effect on Scatter | Clinical Example |
|---|---|---|
| Increased irradiated thickness | Longer paths and more interactions generally increase scatter | A thick torso projection usually produces more receptor scatter than a tightly collimated small distal extremity |
| Beam quality (kVp/filtration) | Changes penetration and the balance of Compton and photoelectric interactions; the effect on receptor scatter is geometry- and patient-dependent | Compare techniques only for the same projection, patient, field, and detector target |
| Larger field size | More tissue volume irradiated, usually increasing scatter at the receptor | Tight collimation generally lowers scatter compared with a larger field on the same anatomy |
| Patient composition and shape | Electron density, path length, and surrounding anatomy affect scatter generation and transport | Do not infer scatter from tissue “density” alone |
Appropriate collimation is fundamental: irradiate only the anatomy needed for the clinical task. Whether a grid adds diagnostic benefit is not determined by a universal 10–12 cm or 70 kVp threshold. Use a validated technique chart or protocol based on patient size, anatomy, projection, field size, equipment, and image-quality requirement.
What Is a Radiographic Grid? The Venetian Blind Analogy
A radiographic grid consists of thin lead strips separated by lower-attenuation interspace material. Modern interspaces are commonly plastic or carbon-fiber-based; older designs may use aluminum. Strips may be parallel, focused toward a focal line, or arranged in specialized crossed/cellular configurations.
Think of it as a microscopic venetian blind:
- Correctly aligned primary photons are preferentially transmitted through the interspaces
- Many obliquely traveling scattered photons hit the lead strips and are absorbed
The grid is placed between the patient and image receptor. It may be built into a table/wall receptor assembly or mounted on a detector/cassette for mobile work.
Grid Construction Components
- Lead strips (septa): The principal scatter-absorbing material; dimensions vary by grid design
- Interspace material: Low-attenuation material, commonly plastic or carbon-fiber-based material in modern grids; older grids may use aluminum
- Cover: Protective front and back layers, typically carbon fiber for low attenuation
- Grid lines: The faint shadows of the lead strips visible on the radiograph (more visible with low-frequency grids)
Grid Ratio: One Important Specification
Grid ratio is an important geometric specification, but it does not by itself specify primary transmission, scatter transmission, contrast improvement, or dose cost. Strip frequency and thickness, interspace and cover materials, focusing, beam spectrum, field, and scatter conditions also matter.
Grid ratio = Height of lead strips (h) ÷ Width of the interspace (D)
A grid with lead strips 4 mm tall and 0.5 mm-wide interspaces has a ratio of 8:1. A grid with strips 3 mm tall and 0.25 mm-wide interspaces has a ratio of 12:1.
What Grid Ratio Means Clinically
| Ratio | General behavior | Exposure/dose implication | Selection note |
|---|---|---|---|
| Low ratio (for example, 4:1 or 6:1) | Generally less scatter rejection but wider alignment tolerance than a higher-ratio grid of otherwise comparable design | Usually a smaller technique increase than a comparable higher-ratio grid, but no fixed multiplier follows from ratio | May be chosen where alignment is difficult or scatter is modest, if validated for the examination |
| Intermediate ratio (for example, 8:1 or 10:1) | Intermediate scatter rejection and alignment tolerance | Must be measured or obtained for the specific grid and clinical conditions | Common in general-purpose systems, but not universally correct for an anatomy or patient size |
| High ratio (for example, 12:1 or 16:1) | Generally greater scatter rejection and narrower alignment tolerance | Can require more exposure to meet the same receptor/image-quality target | Use only when its image-quality benefit justifies its dose and positioning costs |
Rule of thumb: For grids of otherwise comparable design, increasing ratio improves scatter rejection but makes alignment more critical. Do not assign a Bucky factor from ratio alone.
ARRT Exam Tip
Be able to calculate h ÷ D and explain the trade-off: for otherwise comparable grids, a 12:1 design generally rejects more scatter and has tighter alignment tolerance than an 8:1 design. Actual exposure compensation must come from the technique chart, AEC validation, or measured grid factor—not ratio alone.
Bucky Factor: The Dose Consequence of Using a Grid
Every physical grid absorbs some primary radiation in addition to scatter. To maintain a specified detector exposure or image-quality target when adding a grid, tube output generally must increase (manually or through AEC response). The Bucky factor (also called the grid factor) quantifies this for stated conditions.
Bucky factor = mAs required with grid ÷ mAs required without grid, for the same specified receptor exposure or image-quality target and measurement conditions. In a physical grid measurement it is the reciprocal of total transmission.
Why Bucky Factor Is Not a Ratio Lookup Table
| IAEA example condition | 6:1 | 8:1 | 10:1 | 12:1 | 16:1 |
|---|---|---|---|---|---|
| LucAl chest phantom, 120 kV, 25.4 × 25.4 cm field | 1.53 | 1.62 | 1.69 | 1.75 | 1.85 |
| LucAl abdomen phantom, soft-tissue region, 70 kV, same field | 2.79 | 3.20 | 3.53 | 3.81 | 4.27 |
These IAEA measurements illustrate the protocol dependence: the same nominal ratio had a substantially different Bucky factor in chest and abdomen phantom conditions. They are examples, not universal conversion factors. If a validated factor for the same examination and conditions were 3.2 and the non-grid setting were 5 mAs, the corresponding starting calculation would be 5 × 3.2 = 16 mAs; clinical technique must still follow the system's validated chart or AEC setup.
Grid-factor measurements assume specified geometry and alignment. Misalignment causes additional primary cutoff and can alter receptor exposure, AEC response, noise, and patient exposure.
Clinical Pearl — Dose Awareness
When technique is increased to offset grid attenuation, patient incident exposure and organ doses generally increase, but the change in effective dose is not a universal multiple of grid ratio or Bucky factor. It depends on spectrum, geometry, AEC/manual technique, patient, and radiosensitive organs in the field. Select the scatter-control method that achieves the required diagnostic image quality with the lowest reasonable dose under a validated protocol.
Types of Radiographic Grids
1. Parallel (Linear) Grids
The simplest type — all lead strips run parallel to one another in a single direction.
Pros: No focal distance or tube-side orientation
Cons: Some peripheral cutoff is inherent, particularly with a short SID, large field, or high ratio
Clinical use: Limited — primarily in old equipment or special applications
2. Focused (Converging) Grids
Lead strips are progressively angled toward the grid's designed focal line so they match primary-beam divergence. Each focused grid has a specified focal range (permitted source-to-grid/image distance range).
Pros: Strip angulation matches beam divergence over the intended focal range, reducing peripheral primary-beam cutoff when correctly aligned
Cons: Must be used within the specified focal range, centered/leveled correctly, and oriented with the marked tube side toward the tube
Clinical use: Common in general radiographic systems
3. Crossed (Grid-within-Grid)
Two layers of lead strips oriented at 90° to each other — effectively a grid in both X and Y directions.
Pros: Rejects scatter in two dimensions
Cons: Requires careful two-axis alignment; tube angulation is very restricted
Clinical use: Specialized and uncommon in routine projection radiography; do not assume it is the standard fluoroscopy grid

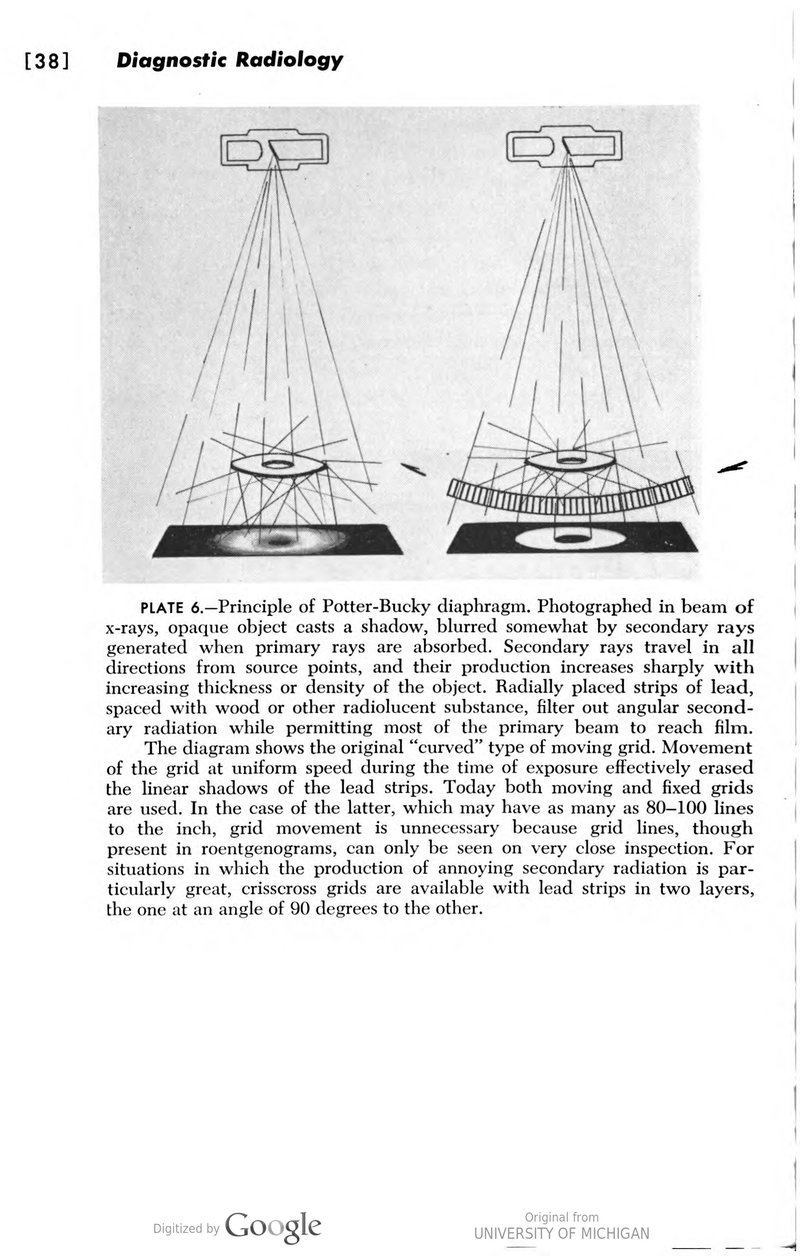

4. Moving Grid (Potter-Bucky Diaphragm)
The grid moves during the exposure (reciprocating or oscillating motion) to blur strip shadows and make them less conspicuous.
Pros: Blurs grid-strip shadows so they are less conspicuous
Cons: Mechanical complexity; motion timing and speed must be adequate for the exposure, especially at short exposure times
Clinical use: Built into radiographic tables and upright Bucky stands
5. Stationary Grid
Fixed grid that does not move. Grid lines may be visible on the image, especially with low-frequency grids.
Pros: Reliable and has no moving parts
Cons: Grid lines can be visible or produce digital aliasing/Moiré; a focused stationary grid still requires its specified focal range and orientation
Clinical use: Detector/cassette-mounted grids for mobile radiography and some dedicated systems
Grids in the Real World: What You'll See in Clinic
| Setting | Grid Type | Ratio | Notes |
|---|---|---|---|
| Radiographic table or wall stand | Often focused; moving or stationary | System-specific | Moving designs blur strip shadows; verify focal range and centering specified by the manufacturer |
| Dedicated chest unit | Often focused; moving or stationary | System/protocol-specific | Selection reflects scatter conditions, geometry, detector, and alignment capability—not kVp alone |
| Mobile radiography | Often a removable stationary focused grid when indicated | System/protocol-specific | Level, center, orient, and use within focal range; misalignment risk is important at the bedside |
| Fluoroscopy | Usually a focused grid at the receptor entrance | System-specific | May be removable for small patients or low-scatter tasks; removal and technique response must follow manufacturer/facility guidance |
| CT | Post-patient collimation/septa integrated with the detector | Not described by a projection-radiography grid-ratio lookup | CT scatter rejection is system-specific and not a removable cassette-grid decision |
Grid Frequency: Lines Per Inch
Grid frequency is the number of lead strips per unit length, commonly stated as lines per centimetre or lines per inch. For orientation, the IAEA lists example grids at 33, 40, and 57 lines/cm (about 84, 102, and 145 lines/in).
- Lower frequency: wider strip spacing can make stationary grid lines more conspicuous
- Higher frequency: finer strip spacing generally makes individual lines less conspicuous, but digital sampling can still produce aliasing or Moiré
- Performance: frequency alone does not establish primary transmission, scatter rejection, or Bucky factor
A high-frequency grid requires an appropriate combination of thinner/more numerous strips and interspaces. Total lead content, strip thickness and height, interspace and cover attenuation, ratio, and alignment all affect transmission. Therefore, “higher frequency = more dose efficient” is not a valid general rule. Consult the grid's measured specifications and ensure its line frequency/orientation is compatible with the digital detector and processing.
Grid Cutoff: The Silent Image Killer
Grid cutoff is unintended loss of primary transmission because the beam and lead strips are geometrically misaligned. It reduces receptor exposure; in a processed digital image it may appear as regional signal loss, increased noise, exposure-index change, or brightness variation depending on processing rather than simply as “loss of density.”
Types of Grid Cutoff
1. Off-Level Cutoff
The X-ray tube is angled across the direction of the grid lines.
- Appearance: Often broad or approximately uniform loss of receptor exposure
- Cause: Central-ray angulation across (not along) the lead-strip direction
- Fix: Level the tube/grid across the strips, or use only manufacturer-permitted angulation along linear grid lines
2. Off-Center Cutoff
The CR is not aligned with the center of a focused grid.
- Appearance: Often broad, approximately uniform cutoff; severity depends on displacement and grid geometry and may combine with other errors
- Cause: Lateral displacement of the central ray from the focused grid center
- Fix: Center the central ray to the grid as specified; patient anatomy may be positioned independently within the clinically required field
3. Off-Focus Cutoff
The SID is outside the grid's focal range.
- Appearance: Bilateral loss of receptor exposure toward the edges of the image
- Cause: Using a focused grid at an SID shorter or longer than its design range
- Fix: Use the correct SID for that grid (marked on the grid or Bucky)
4. Upside-Down Grid Cutoff (Focused Grids Only)
The grid is placed with the tube side facing the IR instead of the patient.
- Appearance: Severe bilateral peripheral cutoff, increasing away from the center
- Cause: A focused grid installed backward in a cassette or Bucky
- Fix: Flip the grid so the tube side (marked with the focal distance or "tube side") faces the X-ray tube
How to Identify Grid Cutoff on a Radiograph
| Cutoff Type | Pattern | Common Cause |
|---|---|---|
| Off-level | Broad/often approximately uniform primary-transmission loss | Tube angled across the lead strips |
| Off-center | Broad/often approximately uniform loss; may be asymmetric when errors combine | Central ray laterally displaced from focused-grid center |
| Off-focus | Bilateral peripheral cutoff | SID outside the focused grid's stated focal range |
| Reversed focused grid | Marked bilateral cutoff that worsens toward both edges | Tube side facing away from the tube |
ARRT Exam Tip
Do not overdiagnose a cutoff cause from processed-image brightness alone. Off-level and off-center errors can both cause broad loss of transmission. Bilateral peripheral cutoff suggests off-focus geometry or a reversed focused grid; confirm SID, tube-side orientation, centering, level, grid direction, exposure index, and raw/for-processing data when available.
When to Use (and When to Skip) the Grid
There is no universal “grid above 10–12 cm” or “grid above 70 kVp” rule. Those values may appear as educational heuristics, but safe clinical selection is protocol- and equipment-dependent.
Use a grid when:
- Measured or expected scatter would otherwise impair the clinical task
- The validated technique chart specifies a grid for that patient-size/anatomy/projection group
- The grid can be aligned correctly, used within its focal range, and matched to the detector/system
- The contrast or contrast-to-noise benefit justifies the exposure increase
Skip the grid when:
- The irradiated volume is small and scatter is low enough that the grid does not improve the diagnostic task (often, but not always, small distal extremities)
- A size-specific pediatric protocol calls for grid removal; larger children or higher-scatter examinations may still benefit from a grid
- Reliable grid alignment cannot be achieved and a validated non-grid or air-gap protocol is available
- The manufacturer's instructions or facility protocol requires grid removal for the selected mode or patient size
The Air Gap Technique: A Grid Alternative
In a validated setup, the air-gap technique can reduce scatter reaching the receptor by increasing the object-to-image receptor distance (OID).
How it works: as OID increases, divergent scattered photons are less likely than primary photons to strike the detector. The trade-offs include magnification and increased focal-spot geometric unsharpness. Changing OID commonly changes source-to-image geometry and detector air kerma, so SID and technique may need adjustment. For chest imaging, geometry also affects apparent cardiac magnification.
Important: no fixed air gap is universally equivalent to a particular grid ratio. Scatter rejection depends on gap, patient/phantom thickness, field size, beam quality, source-to-patient and source-to-image distances, and detector size. Use only a validated air-gap protocol.
Selecting the Right Grid: A Clinical Decision Guide
The table below describes common decision factors, not universal technique settings. Exact kVp, mAs/AEC, grid design, SID, collimation, and detector processing must come from the facility's validated chart and manufacturer guidance.
| Examination | Grid decision | Important variables | Practice note |
|---|---|---|---|
| Adult chest, abdomen, pelvis, or spine | Often uses the installed grid, but system/protocol-specific | Patient size, projection, field, spectrum, detector, AEC, clinical task | The IAEA gives 10:1–12:1 as adult chest/abdomen examples, not as universal prescriptions |
| Mobile chest | Grid, non-grid, or air gap according to a validated protocol | Patient size, field, SID/OID, detector and grid alignment | Do not add a grid without compensating/validating technique; do not use one if it cannot be aligned |
| Small distal extremity | Often non-grid | Actual irradiated thickness/volume, field, task | Extremities are a common exception to routine grid use, but anatomy labels alone are not a threshold |
| Larger extremity, cross-table, or trauma view | Case/protocol-specific | Thickness, field, projection, alignment feasibility | Use a grid or validated alternative only when the expected benefit exceeds the dose/positioning cost |
| Pediatric projection radiography | Size- and examination-specific; removable grids are often omitted for smaller patients | Patient size rather than age alone, anatomy, field, task, equipment | Use pediatric technique charts and consult manufacturer/medical-physics guidance; “never use a grid in children” is incorrect |
Clinical Pearl — You Need to Know This
Protocol dependence is the live-verification marker: never declare a grid correct or incorrect from thickness and kVp alone. Verify the patient-size category, projection, detector, installed/removable grid, focal range, SID, AEC/manual technique, collimation, and facility-approved chart. Escalate unexpected practice through the supervising technologist, radiologist, or qualified medical physicist rather than overriding a protocol from a web article.
Grid Quality Control: What to Check
Grids can be damaged or develop motion/alignment problems. Resulting artifacts or nonuniform receptor exposure can obscure anatomy or simulate an image finding.
Common grid problems to recognize:
- Bent or damaged lead strips — can produce localized linear or band-like receptor-exposure loss; remove damaged grids from service and evaluate them
- Surface damage or foreign material — may produce repeatable artifacts; inspect and clean only as the manufacturer directs
- Grid motion failure (Bucky) — strip lines may become visible, although line visibility and Moiré can also involve timing, frequency, orientation, detector sampling, or processing
- Wrong grid/system combination — incorrect focal range, orientation, ratio/frequency compatibility, or technique/AEC setup can cause cutoff, artifacts, or inappropriate exposure
ARRT Exam Question Practice
A focused grid labeled for a 100–180 cm focal range is used at 75 cm SID. The image has bilateral peripheral loss of receptor exposure. What is the most likely cause?
A. Off-level grid cutoff
B. Off-center grid cutoff
C. Off-focus grid cutoff
D. Insufficient mAs
Answer: C. The SID is outside the focused grid's stated focal range, so strip angulation no longer matches beam divergence and peripheral cutoff results. A reversed focused grid can also cause bilateral cutoff, but the supplied SID identifies the off-focus error.
Scatter Control Without Grids: Collimation, Compression, and Air Gap
Grids are not the only scatter-control method. Available methods and their suitability include:
- Collimation — Restrict the beam to the clinically required area. A smaller field usually reduces scatter, but the reduction is not a fixed amount per square centimetre.
- Compression — When clinically appropriate and safely available (for example, dedicated mammography compression), reducing tissue thickness can reduce scatter and improve geometry.
- Optimized beam quality and technique — Select kVp, filtration, mAs/AEC, and geometry together for adequate penetration, contrast-to-noise ratio, and dose; “always use the lowest kVp” is not a safe universal rule.
- Air gap technique — Increase OID to allow scattered photons to miss the IR.
- Grid — Use when the validated examination protocol indicates that its scatter-rejection benefit justifies attenuation and alignment costs.
Collimation should always be limited to the diagnostic field, but scatter-control choices are not a rigid one-size-fits-all hierarchy. Compression, grid removal/use, air gap, slit scanning, and technique changes depend on the examination and equipment.
Summary: Grid Mastery for the ARRT
| Concept | Key Point |
|---|---|
| Grid purpose | Absorb scatter radiation before it reaches the IR, improving contrast |
| Grid ratio | h/D — for otherwise comparable grids, higher ratio generally improves scatter rejection and narrows alignment tolerance |
| Bucky factor | Conditional mAs ratio (with grid ÷ without grid) for the same specified target; not fixed by grid ratio |
| Grid types | Parallel, focused (common), crossed/cellular (specialized), and moving or stationary implementations |
| Grid cutoff | Check level, centering, focal range, and tube-side orientation; digital brightness alone may not identify the cause |
| When to grid | When a validated patient-size/examination protocol shows diagnostic benefit that justifies exposure and alignment costs |
| When to skip | When scatter is low or a validated alternative is preferable; pediatric decisions are size-, task-, and equipment-specific |
| Air gap | Can reject scatter by increasing OID; effect and technique implications depend on the complete geometry |
| Grid frequency | Lines per unit length; affects line visibility/aliasing but does not alone determine transmission or dose efficiency |
FAQ
What is the primary purpose of a radiographic grid?
The primary purpose of a radiographic grid is to preferentially absorb scatter before it reaches the image receptor, improving subject contrast. Correctly aligned primary photons are preferentially transmitted through the interspaces, while many obliquely traveling scattered photons strike the lead strips. A grid also absorbs some primary radiation and does not inherently improve geometric sharpness.
What is grid ratio and how is it calculated?
Grid ratio is the height of the lead strips divided by the width of the interspace (h/D). For example, 4 mm strips separated by a 0.5 mm interspace give 8:1. Increasing ratio generally improves scatter rejection but narrows alignment tolerance. Dose and exposure compensation cannot be inferred from ratio alone; they depend on the complete grid, spectrum, field, patient or phantom, and imaging task.
What is the Bucky factor and why does it matter?
The Bucky (grid) factor is the ratio of mAs required with a grid to mAs required without it under specified conditions for the same receptor exposure or image-quality target; in a physical measurement it is the reciprocal of total transmission. It is not fixed by grid ratio and varies with grid construction, spectrum, field, patient or phantom, projection, and detector/AEC response.
What are the four types of grid cutoff?
Common causes are: (1) off-level angulation across the strips; (2) lateral off-centering of a focused grid; (3) use outside a focused grid's focal range; and (4) reversal of a focused grid. Off-level and off-center errors can both cause broad or approximately uniform primary-transmission loss. Off-focus and reversed focused grids produce bilateral peripheral cutoff, typically much more severe with reversal. Processed-image brightness alone may not identify the cause.
When should a grid NOT be used in radiography?
There is no universal thickness, age, or kVp rule. Omit a grid when scatter is low enough that it does not improve the diagnostic task, or when reliable alignment cannot be achieved and a validated alternative exists. Pediatric decisions are based on patient size, anatomy, field, projection, equipment, and clinical task; grids are often omitted for smaller children but may benefit larger patients or high-scatter examinations. Follow the validated pediatric technique chart and manufacturer or medical-physics guidance.
How does the air gap technique reduce scatter?
Increasing object-to-image receptor distance (OID) makes divergent scattered photons less likely than primary photons to reach the detector. The result depends on patient/phantom thickness, field, beam quality, gap, and source geometry; no fixed air gap is universally equivalent to a grid ratio. Air gaps increase magnification and focal-spot geometric unsharpness, and SID or technique may need adjustment under a validated protocol.
Authoritative References
- IAEA, Diagnostic Radiology Physics: A Handbook for Teachers and Students — Sections 6.2.4 and 6.3 cover digital receptor terminology, scatter, grid construction/performance, Bucky factor, grid selection/alignment, and air-gap geometry.
- U.S. FDA, Pediatric X-ray Imaging — pediatric technique should be adjusted for patient size, clinical indication, anatomy, and equipment, using the lowest dose that provides adequate diagnostic image quality.
- Fritz S, Jones AK. Guidelines for anti-scatter grid use in pediatric digital radiography. Pediatric Radiology. 2014;44:313–321. doi:10.1007/s00247-013-2824-9. — peer-reviewed evidence that pediatric grid decisions depend strongly on patient thickness and field of view rather than age alone.
- AAPM Report No. 116, An Exposure Indicator for Digital Radiography — standardized digital-radiography exposure-indicator concepts and the distinction between detector exposure feedback and patient dose.
