Tibia & Fibula X-Ray: 2 Views Guide
The tibia and fibula make up the framework of the lower leg, and fractures here are among the most common orthopedic injuries you'll encounter as a radiologic technologist. From football tackles to falls on the stairs, tibial shaft fractures account for roughly 2% of all adult fractures — and when the fibula goes too, you're looking at a complex injury pattern that demands impeccable positioning.
Getting a diagnostic tib-fib series is about more than just pointing the tube at the leg. You need to understand the joint inclusion rule, manage rotation carefully, and know when to switch technique for trauma patients who can't bear weight. This guide covers the AP and lateral projections plus specialized leg-length imaging with source-informed positioning data, centering point tables, evaluation criteria, and exam tips you'll need for the ARRT registry.
Anatomy of the Tibia and Fibula
Before we get into positioning, let's review the key anatomy. The tibia (shin bone) is the larger, weight-bearing bone of the lower leg. The fibula runs alongside it laterally and serves primarily as a muscle attachment site — it bears only about 6-17% of body weight.
| Bone | Articulations (Proximal) | Articulations (Distal) | Key Landmarks |
|---|---|---|---|
| Tibia | Medial and lateral condyles articulate with femoral condyles | Distal tibia articulates with talus (tibiotalar joint) | Tibial tuberosity, tibial plateau, medial malleolus, anterior crest (shin) |
| Fibula | Head of fibula articulates with lateral tibial condyle (proximal tibiofibular joint) | Lateral malleolus articulates with talus | Head of fibula (styloid process), neck of fibula, lateral malleolus |
One of the trickiest things to remember as a student is that the proximal tibiofibular joint is a diarthrodial (synovial) joint with its own joint capsule, while the distal tibiofibular joint is a fibrous syndesmosis held together by strong ligaments. This matters clinically — ankle fractures frequently involve the distal tibiofibular syndesmosis, and a widened joint space on the mortise view indicates syndesmotic injury.
💡 ARRT Exam Tip
For the tibia-fibula, a complete AP and lateral study must show the entire tibia and fibula plus both the knee and ankle joints. First determine whether the anatomy and required margins fit the available receptor. If not, obtain two overlapping images for each projection; never accept a gap between images. An approved diagonal placement may help on systems and protocols that permit it, but coverage and visible margins—not a fixed receptor landmark—determine success.
Routine Projections for the Tibia-Fibula Series
The tibia-fibula series traditionally includes two primary projections:
- AP (Anteroposterior) Tibia and Fibula — Both bones and both joints
- Lateral Tibia and Fibula — Lateromedial projection with the affected side down
Some protocols also include AP and lateral oblique views for trauma evaluation, though these are less common than they are for the knee or ankle. Specialized leg-length studies may use orthoroentgenography, scanography, a teleroentgenogram, or digital stitching; these related methods use different acquisition geometry and should not be treated as interchangeable terms.

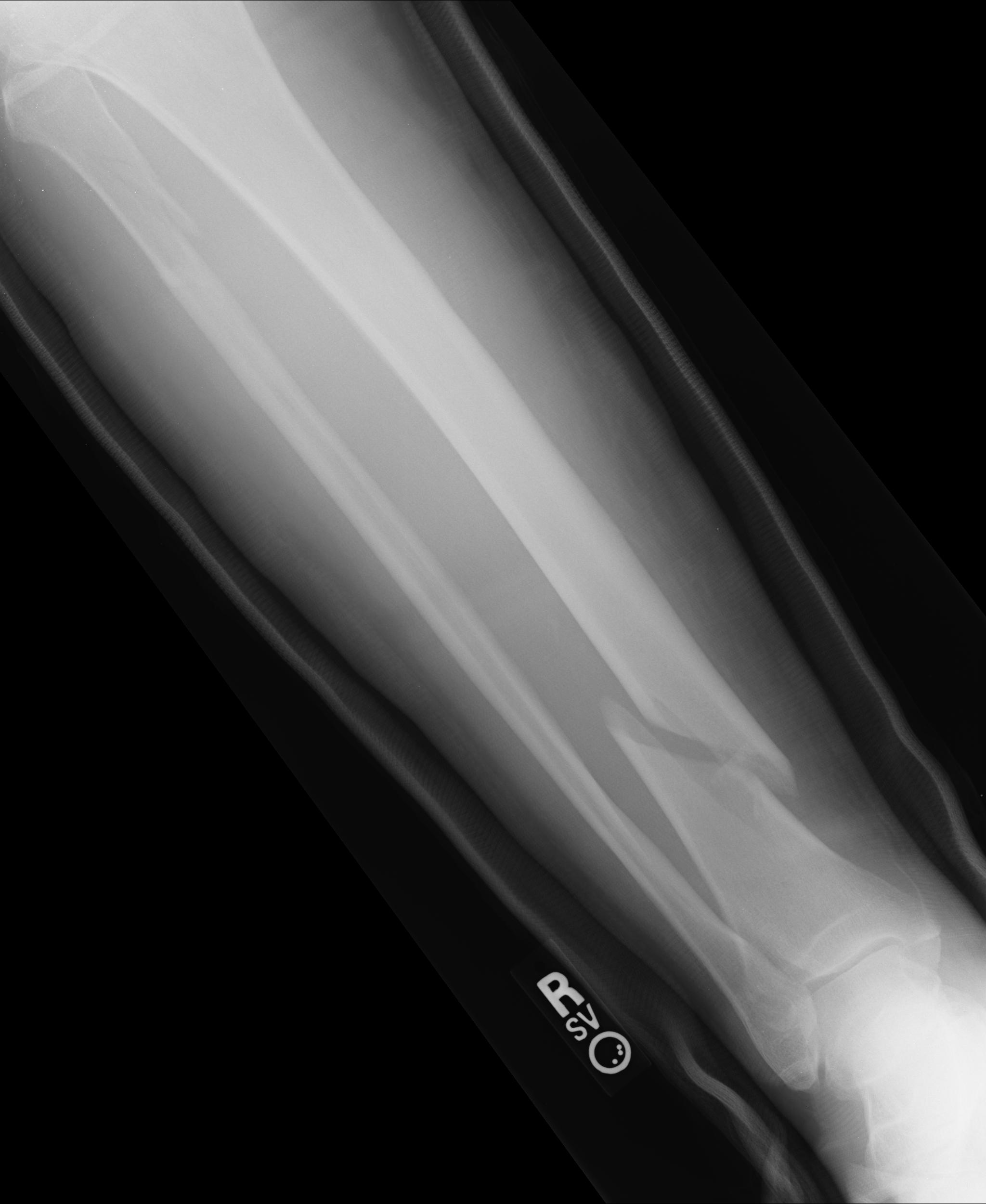

View 1: AP Tibia and Fibula (AP Lower Leg)
The AP projection provides a straight-on view of the entire tibia and fibula, showing both bony shafts and both joints.
Patient Positioning
- Position: Supine on the table
- Leg: Knee fully extended, leg in neutral rotation — the patella should face directly forward (anterior)
- IR size: Commonly 35 × 43 cm (14 × 17 in), lengthwise, when it covers the entire tibia and fibula with both joints and appropriate margins
- IR placement: Center the receptor to the midpoint between the knee and ankle and verify both joints, the entire shafts, and required margins before exposure. If one receptor cannot cover them, use two overlapping AP images; an approved diagonal placement may be used when compatible with the detector and facility protocol
Technical Factors
| Parameter | AP Tibia and Fibula |
|---|---|
| Projection | AP (anteroposterior) |
| SID | 100 cm (40 in) |
| IR size | 35 × 43 cm (14 × 17 in), lengthwise |
| CR | Perpendicular to the long axis of the tibia |
| Centering point | Midpoint of the lower leg — midway between the knee joint and the ankle joint (approximately mid-shin level) |
| Grid | Follow the facility technique chart; use depends on part thickness, field size, detector/system, patient, and scatter conditions—not projection name alone |
| Respiration | Suspended |
| Exposure | Select equipment- and thickness-specific factors from the validated technique chart. kVp controls beam quality/penetrability; mAs controls photon quantity. Review the system-specific exposure index (EI) and deviation index (DI), along with anatomy and noise, to confirm an appropriate detector exposure |
Evaluation Criteria
- Complete coverage — Entire tibia and fibula, knee joint, and ankle joint must be visible; when two images are used, the anatomy must overlap without a gap
- AP relationship — At the proximal leg, the fibular head is partly superimposed by the lateral tibia; assess the knee, shafts, and ankle together rather than using one landmark alone
- Entire shaft visible — No part of the diaphysis should be outside the collimated field
- Bony detail — Cortical margins of both bones should be sharp, trabecular pattern visible
⚠️ Clinical Pearl — The Rotation Trap
Rotation changes the expected tibia-fibula relationships and may limit evaluation. Position the patella forward for the AP when the patient's condition permits, then confirm the regional anatomy—especially partial superimposition of the proximal fibular head by the tibia. In trauma, support the limb as found and do not force extension or rotation. Don't rely on the foot alone as a guide because foot position may not match tibial rotation.
View 2: Lateral Tibia and Fibula
The lateral projection shows the tibia and fibula from the side and is essential for evaluating displacement of fracture fragments, anterior/posterior angulation, and the alignment of the fibula relative to the tibial shaft.
Patient Positioning
- Position: The patient lies on the affected side (lateromedial projection)
- Leg: For a nontrauma standard lateral, flex the knee only as needed and tolerated to obtain the projection; never force flexion of an injured limb
- Other leg: Clear the unaffected leg behind the affected leg. Use another position only if it clears both the receptor and x-ray beam without moving or twisting the injured leg
- IR size: Commonly 35 × 43 cm (14 × 17 in), lengthwise, when it covers the entire bones and both joints
- IR placement: Center to the midpoint between knee and ankle and verify margins. If one receptor is insufficient, obtain two overlapping lateral images
Technical Factors
| Parameter | Lateral Tibia and Fibula |
|---|---|
| Projection | Lateromedial (affected side down) |
| SID | 100 cm (40 in) |
| IR size | 35 × 43 cm (14 × 17 in), lengthwise |
| CR | Perpendicular to the long axis of the tibia |
| Centering point | Midpoint of the lower leg — same as AP, at mid-shin level |
| Grid | Follow the facility technique chart; the decision depends on thickness, field size, detector/system, patient, and scatter conditions |
| Respiration | Suspended |
| Exposure | Use the validated equipment- and thickness-specific technique chart; assess image quality together with the system-specific EI/DI |
Evaluation Criteria
- Complete coverage — Entire tibia and fibula plus knee and ankle joints are visible, with overlap and no gap if two images were required
- Distal relationship — The distal fibula projects through the posterior half of the distal tibia on an acceptable lateral
- Regional evaluation — Judge the proximal leg, shafts, and distal leg together. Femoral-condyle superimposition may support assessment near the knee, but imperfect superimposition alone is not an automatic reason to repeat a complete lower-leg image
- Diagnostic quality — Fracture alignment, cortical margins, and relevant soft tissues are demonstrated without motion
💡 Clinical Pearl — Trauma Modification
If the patient cannot roll because of suspected fracture, pain, deformity, or other precautions, use a horizontal-beam lateral. Keep the injured leg immobilized in the position found: do not roll the patient or force knee flexion, extension, or rotation. Place and secure the receptor beside the limb without disturbing it, clear the unaffected leg and any supports from both the receptor and beam path, and direct a horizontal beam perpendicular to the receptor at the lower-leg midpoint. Use two overlapping horizontal-beam images if one receptor cannot include the entire tibia/fibula and both joints. See our guide on Trauma Radiography Principles for more on modified trauma techniques.
Leg-Length Imaging: Distinct Acquisition Methods
Specialized radiographic methods are used to assess leg-length discrepancy, including in pediatric orthopedics, limb reconstruction, and pre- or postoperative planning. The method named in the order and the facility protocol matter because orthoroentgenography, scanography, teleroentgenography, and digital stitching are not interchangeable acquisitions.
Method Differences
- Orthoroentgenography: Three localized AP exposures are centered at the hip, knee, and ankle while one long receptor remains in place and the patient remains still, reducing magnification error at each joint
- Conventional scanography: Also uses localized hip, knee, and ankle exposures, but a standard-size receptor is moved between exposures while the patient remains still beside a calibrated radiopaque ruler. Slit scanography is a distinct scanning-beam variation
- Teleroentgenogram: A single full-length AP exposure, commonly weight-bearing at a long source-to-image distance, demonstrates both limb length and overall alignment but has different magnification characteristics
- Digital stitching: Dedicated long-length systems acquire multiple overlapping digital images and software combines them into a calibrated composite; follow the manufacturer's workflow to prevent stitching and measurement errors
Hip, knee, and ankle is a common sequence for three-part methods, not a universal mandatory acquisition order. Follow the equipment-specific and facility protocol for order, calibration device, weight-bearing status, positioning, and measurement. The resulting study can support segmental femoral and tibial measurements and total limb-length comparison.
💡 ARRT Exam Tip
Identify the named method before choosing an answer. Orthoroentgenography keeps one long receptor in place for three localized exposures; conventional scanography moves a standard receptor for localized exposures beside a calibrated ruler; a teleroentgenogram is a single long-distance full-length image; and digital stitching creates a calibrated composite from overlapping acquisitions.
Pediatric Tib-Fib Considerations
Pediatric lower leg imaging has its own set of rules. Growing bones have epiphyseal plates (growth plates) that must be evaluated separately in trauma cases. Key differences:
- Incomplete (greenstick) fractures are common in children — the bone bends and breaks on one side only
- Toddler's fracture — A subtle, nondisplaced spiral fracture of the distal tibia in toddlers learning to walk. It may be radiographically occult on initial films; follow-up imaging or advanced imaging may be needed
- Distal tibial epiphyseal injuries — The Salter-Harris classification system is used. Fractures involving the physis require careful evaluation because of the risk of growth disturbance
- Immobilization — Use radiolucent immobilization devices (tape, sandbags, Pigg-O-Stat for young children). Never hold a child manually for positioning
- Radiation protection — Routine gonadal or fetal shielding is no longer recommended by major medical-physics guidance because it provides negligible benefit, may obscure anatomy, and can interfere with exposure control. Prioritize accurate collimation, correct centering, age/size-specific technique optimization, and avoiding repeats; follow applicable facility policy and local regulation. See Patient Shielding in Radiography for context
For a complete overview of pediatric imaging techniques, see our guide on Pediatric Radiography Techniques.
Positioning Summary Table
| View | Patient Position | CR Angle | Centering Point | Joint Inclusion |
|---|---|---|---|---|
| AP Tib-Fib | Supine, knee extended as tolerated, patella forward | Perpendicular to tibia | Midpoint of lower leg | Entire tibia/fibula + knee + ankle; two overlapping AP images if needed |
| Lateral Tib-Fib | Affected side down; unaffected leg cleared behind | Perpendicular to tibia | Midpoint of lower leg | Entire tibia/fibula + knee + ankle; two overlapping lateral images if needed |
| Horizontal-Beam Lateral | Supine trauma; immobilize as found, IR beside leg | Horizontal, perpendicular to IR | Midpoint of lower leg | Entire tibia/fibula + both joints; beam and receptor clear |
| Leg-Length Study | Method- and protocol-specific | Depends on named method | Often hip, knee, and ankle; order is protocol-specific | Orthoroentgenography, scanography, teleroentgenography, and stitching differ |
ARRT High-Yield Facts — Tibia and Fibula Positioning
| Fact | Details |
|---|---|
| Coverage rule | Every AP and lateral study shows the entire tibia/fibula and both joints; if one receptor cannot, use two overlapping images per projection |
| IR selection | 35 × 43 cm (14 × 17 in) lengthwise is common, but choose placement and image count by anatomy, margins, detector, and protocol |
| AP centering | Midpoint between knee and ankle joints (mid-shin) |
| AP rotation landmark | Patella must face directly forward — do not use the foot as a guide |
| Lateral position | Affected side down; unaffected leg cleared behind, without moving the injured leg |
| Lateral fibula location | Distal fibula projects through the posterior half of the distal tibia |
| Trauma alternative | Horizontal beam lateral with immobilization maintained; no rolling or forced flexion; receptor and beam path cleared |
| Leg-length methods | Do not use orthoroentgenography, scanography, teleroentgenography, and digital stitching as synonyms |
| Major coverage error | Omitting a joint or any shaft segment, including a gap between nonoverlapping images |
| AP rotation error | Unexpected regional tibia-fibula relationships, including abnormal proximal fibular-head overlap |
| Pediatric fracture | Toddler's fracture — subtle spiral distal tibial fracture, often radiographically occult |
| Proximal tibiofibular joint | Synovial (diarthrodial) joint — can dislocate in isolation |
Common Positioning Errors
1. Incomplete Coverage
Incomplete coverage occurs when a joint or part of either shaft is omitted. Solution: Center the receptor to the midpoint between the knee and ankle, verify proximal and distal margins before exposure, and use an approved diagonal placement only when the system and facility protocol permit it. If one receptor cannot cover the required anatomy, obtain two overlapping images for each projection.
2. Rotation on the AP View
Rotation changes tibia-fibula overlap differently at the proximal leg, shafts, and ankle. Solution: Position the patella forward for the AP when the patient's condition permits, then verify the expected regional relationship, including partial superimposition of the proximal fibular head by the tibia. Do not position by the foot alone because ankle injury or anatomic variation can make foot rotation differ from tibial rotation.
3. Insufficient Collimation
The tib-fib is a long structure on a large IR. It's tempting to open the collimators wide, but this increases scatter and reduces image contrast. Solution: Collimate closely to the skin margins of the lower leg. You should see soft tissue borders on all four sides.
4. Inappropriate Technique Selection
A universal kVp range or ad hoc mAs change is not appropriate across different detectors, patient sizes, and equipment. Solution: Use the validated equipment- and thickness-based technique chart: kVp determines beam quality and penetrability, while mAs determines photon quantity. Evaluate anatomy, motion, noise, collimation, and the manufacturer-specific EI/DI together; do not use brightness or the appearance of the fibula alone to infer detector exposure.
5. Poor Lateral Positioning
Assess the lateral region by region rather than repeating solely because the femoral condyles are not perfectly superimposed. The distal fibula should project through the posterior half of the distal tibia, and the shafts, joints, fracture alignment, and soft tissues must remain diagnostic. Solution: For a standard lateral, place the affected side down and clear the unaffected leg behind it. Alternatives are acceptable only when both receptor and beam remain clear and the injured limb is not moved; use a horizontal-beam lateral when trauma prevents safe rolling.
Clinical Indications for Tib-Fib Radiography
When to Order a Tibia-Fibula Series
- Trauma — Falls, sports injuries, MVAs with lower leg pain, swelling, or deformity
- Suspected fracture — Point tenderness, inability to bear weight, gross deformity, crepitus
- Post-reduction evaluation — After closed reduction of a tibial or fibular fracture
- Nonunion or malunion assessment — Follow-up imaging of healing fractures
- Leg-length discrepancy — Pre- and post-operative scanogram for limb-lengthening procedures
- Bone tumor or infection — Pain, swelling, unexplained radiographic abnormality on prior imaging
When to Go to CT
CT is generally reserved for complex tibial plateau fractures (Schatzker classification), intra-articular fractures, and pre-operative planning. For simple diaphyseal fractures, the two-view plain film series is usually sufficient. If there is clinical suspicion of a stress fracture or occult fracture not visible on plain film, MRI or nuclear medicine bone scan may be indicated.
Internal Linking Strategy — Build Your Knowledge
This tib-fib positioning guide is part of a complete library of extremity positioning resources. Here are the related articles to deepen your understanding:
- Knee X-Ray Positioning Guide — AP, lateral, tunnel, and sunrise views with centering points for the knee joint
- Femur X-Ray Positioning Guide — AP, lateral, and horizontal beam lateral views of the thigh
- Foot and Ankle X-Ray Positioning Guide — AP, mortise, lateral, and special ankle views
- Hand and Wrist X-Ray Positioning Guide — Upper extremity positioning technique
- Trauma Radiography Principles — Modified positioning for non-ambulatory and emergency patients
- Image Critique and Evaluation Guide — How to evaluate your own positioning and exposure quality
Test Your Knowledge — ARRT-Style Practice Questions
📝 Practice Questions
Question 1: A 22-year-old male presents with lower leg pain after a soccer injury. The referring physician has ordered a tibia-fibula series. Which of the following is the CORRECT joint inclusion requirement for this exam?
Question 2: A trauma patient arrives with a suspected tibial shaft fracture. The patient cannot roll onto their side due to severe pain. Which technique should the technologist use for the lateral projection?
Question 3: Which anatomical landmark should the technologist use to determine correct rotation for the AP tibia-fibula projection?
Question 4: A pediatric patient presents with a limping gait and subtle tenderness over the distal tibia. The initial radiographs appear normal. What is the most likely diagnosis?
Question 5: Which statement correctly distinguishes common radiographic methods for leg-length assessment?
Quick Reference — Tib-Fib Positioning Checklist
Use this checklist before every tibia-fibula exam:
- ✅ Receptor size and placement cover the entire tibia/fibula and both joints with appropriate margins
- ✅ If one receptor is insufficient, two overlapping images are planned for each projection
- ✅ Patella faces forward for the AP when tolerated; unaffected leg is cleared behind for the standard lateral
- ✅ CR centered at midpoint of the lower leg (mid-shin)
- ✅ Collimation is tight to the soft tissue margins
- ✅ Grid and exposure factors follow the validated equipment- and thickness-specific technique chart
- ✅ Anatomy, noise, motion, collimation, and system-specific EI/DI have been reviewed
- ✅ Entire bones and both joints are visible on AP and lateral images before clearing the patient
📚 Clark's Reference
For complete positioning data on lower-extremity projections, consult the current edition of Clark's Pocket Handbook for Radiographers and your facility protocol. For routine AP and lateral lower-leg imaging, center at the midpoint between the knee and ankle with the CR perpendicular to the long axis of the tibia, while ensuring the entire tibia/fibula and both joints are demonstrated. For leg-length assessment, identify the named method and follow its equipment-specific calibration and acquisition workflow.
