Orbit X-Ray Positioning: 5 Views for Trauma & Foreign Body Screening
You're on a busy ER shift when a patient arrives after an assault — swollen, tender orbit, and the physician suspects a blow-out fracture. Or the order says "rule out metallic foreign body" before an MRI. Orbit radiography is a different animal from routine facial bones: tight collimation, small anatomy, and every degree of angulation matters.
This guide covers the commonly taught, protocol-dependent projections for orbit radiography — modified occipito-mental, occipito-mental 30° caudad, optic foramina oblique, and lateral — with centering points from Clark's Positioning in Radiography and US-oriented teaching labeled separately where they differ. There is no universal four-view series: obtain only the projections in the imaging order and validated facility protocol.
Why Orbit Radiography Is Different
The orbit is a four-walled bony pyramid that protects the eye. Its thin walls — especially the orbital floor (roof of the maxillary sinus) and the medial wall (lamina papyracea of the ethmoid) — are classic fracture sites in blunt trauma. The floor is the most common site of blow-out fractures, where increased intraorbital pressure fractures the thin bone downward into the maxillary sinus.
Two jobs dominate orbit radiography:
- Trauma assessment — screen for orbital rim and floor fractures, and evaluate displacement
- Foreign body screening — exclude radiopaque metallic foreign bodies before MRI
A normal radiograph does not exclude a clinically important orbital fracture. When significant orbital trauma is suspected, CT maxillofacial without IV contrast is the definitive study. Plain films are a screening and protocol-driven tool, not a substitute.
💡 Why It Matters
The orbit walls are among the thinnest bones in the body — the floor can be <1 mm thick in places. A few degrees of angulation error can project the petrous ridges over the orbital floor and hide a blow-out fracture. Centering and angulation precision is everything in this exam.
Anatomy and Positioning Lines You Must Know
| Structure | What it is | Why it matters |
|---|---|---|
| Orbital rim | Thick anterior bony margin (frontal, zygomatic, maxillary contributions) | Fractures here are palpable and often visible on plain films |
| Orbital floor | Roof of the maxillary sinus | Classic blow-out fracture site |
| Lateral orbital wall | Formed by the zygomatic bone and greater wing of sphenoid | Key rotation check on frontal views |
| Optic foramen / canal | Opening at the orbital apex for the optic nerve and ophthalmic artery | The target of the Rhese-type oblique |
| Petrous ridges | Dense temporal bone ridges | Their position on the image tells you if angulation is correct |
Baselines used in orbit positioning:
- Orbito-meatal baseline (OMBL/OML) — from the outer canthus of the eye to the external auditory meatus (the radiographic baseline)
- Median sagittal plane (MSP) — divides the head into right and left halves
- Inter-orbital (interpupillary) line — joins the centers of the two orbits
- Infra-orbital margin — the inferior rim of the orbit, a key landmark and centering reference
Routine Views Overview
The table compares projections that may appear in textbooks or local protocols. It is not a universal exam recipe. SID, detector, grid use, exposure, and the exact projection set must come from the department's validated protocol and technique chart.
| Projection | View | Key Angulation | Key Centering |
|---|---|---|---|
| Occipito-mental (modified, orbit) | PA chin-up | OMBL 35° to IR (Clark's) | Midpoint of orbits |
| Occipito-mental 30° caudad | PA angled | OMBL 45° to IR + 30° caudad CR | CR exits lower orbital margins |
| Optic foramina oblique (Rhese-type) | PA oblique | MSP 35° to vertical; OMBL raised 35° | CR emerges from orbit center |
| Lateral orbit | Lateral | True lateral | 2.5 cm inferior to outer canthus |
View 1: Modified Occipito-Mental (Orbit Projection) — the Workhorse
Clark's describes this as a frequently undertaken projection used to assess injuries to the orbital region — for example, a blow-out fracture of the orbital floor — and to exclude metallic foreign bodies in the eyes before MRI. It is essentially an under-tilted occipito-mental: the orbito-meatal baseline is raised 10° less than in the standard OM projection.
Patient Positioning
- Position: Seated erect facing the skull-unit cassette holder or vertical Bucky (the preferred method)
- Part: Nose and chin in contact with the midline of the cassette holder
- OMBL: 35° to the cassette holder (the standard OM uses 45°)
- Bucky height: horizontal central line at the level of the midpoint of the orbits
- MSP: at right angles to the Bucky — check the outer canthi of the eyes and the external auditory meatuses are equidistant
Technical Factors
| Parameter | Modified Occipito-Mental (Orbit) |
|---|---|
| SID | 40" (100 cm) or skull-unit design |
| IR | Digital detector, portrait |
| Grid | Bucky |
| Exposure | Validated local technique chart and exposure-index target |
| CR | Perpendicular to the cassette holder |
| Centering point | Mid-orbital region — cross-lines at the midline at mid-orbit level |
| Collimation | Tight; "letter-box" collimation to the orbital region for foreign-body exams |
| Respiration | Suspended |
Evaluation Criteria
- Orbits roughly circular in appearance (they will be more oval on the standard OM)
- Petrous ridges appear in the lower third of the maxillary sinuses
- No rotation — distance from the lateral orbital wall to the outer skull margin equidistant on both sides
- Sharp orbital margins — no motion
📌 Exam Tip
The OMBL angle family is high-yield: standard OM = 45°, modified orbit OM = 35°, and foreign-body confirmation = 30°. The petrous-ridge position is your feedback: too high in the sinuses and the chin angle dropped.
Foreign-Body Screening Notes (Clark's)
If the examination is purely to exclude foreign bodies in the eye:
- Apply tight "letter-box" collimation to the orbital region
- Use a dedicated cassette kept scrupulously clean — small artefacts on dirty screens are easily confused with foreign bodies
- If a foreign body is suspected, take a second projection with the eyes in a different position (e.g., looking up then down) to differentiate a true foreign body from an image artefact
View 2: Occipito-Mental 30° Caudad
This projection demonstrates the lower orbital margins and the orbital floors en face. The zygomatic arches are opened out compared with the occipito-mental projection, though they remain foreshortened.
Patient Positioning
- Position: Seated erect facing the skull-unit cassette holder or vertical Bucky
- Part: Nose and chin on the midline of the cassette holder
- OMBL: 45° to the cassette holder
- Bucky height: horizontal central line at the level of the symphysis menti (chin)
- MSP: at right angles to the Bucky (outer canthi and EAMs equidistant)
Technical Factors
| Parameter | OM 30° Caudad |
|---|---|
| CR angle | 30° caudad, centered along the midline |
| CR exit | Level of the lower orbital margins |
| Grid | Bucky |
| Respiration | Suspended |
Evaluation Criteria
- Floors of the orbit clearly visible through the maxillary sinuses
- Lower orbital margin clearly demonstrated
- No rotation — lateral orbital wall to outer skull margins equidistant
💡 Clinical Pearl
Failure to demonstrate the whole orbital floor usually means under-angulation, or the patient let the OMBL drop below 45°. Re-check the baseline angle immediately before exposure — patients find this position uncomfortable and drift out of it.
View 3: Optic Foramina Postero-Anterior Oblique (Rhese-Type)
The optic canal opens into the rear of the bony orbit at the optic foramen. Clark's notes the canal passes forwards and laterally at approximately 35° to the median sagittal plane and downwards at approximately 35° to the orbito-meatal plane — this is the path the central ray must take to demonstrate the foramen. Both sides are usually imaged separately for comparison.
📌 Terminology note
US/ARRT-oriented textbooks teach this as the Rhese method (parieto-orbital oblique) and may describe the head rotation differently (commonly ~50–55° from the PA). Clark's describes the same oblique concept with a 35° MSP angle and a 35° raised OMBL. Both are taught — follow your program's text and facility protocol; do not blend the two angular systems into one number.
Patient Positioning (Clark's)
- Position: Prone, or more commonly erect, with the nose, cheek, and chin of the side being examined in contact with the Bucky or cassette table
- Centering: The center of the orbit of the side under examination coincides with the center of the Bucky
- MSP: adjusted to make an angle of 35° to the vertical (55° to the table)
- OMBL: raised 35° from the horizontal
Technical Factors
| Parameter | Optic Foramina PA Oblique |
|---|---|
| CR | Horizontal, well-collimated |
| Centering point | Middle of the Bucky — a point 7.5 cm above and 7.5 cm behind the uppermost external auditory meatus, so the CR emerges from the center of the orbit in contact with the table |
| Marker | Small lead side-marker above the superior orbital margin |
| Grid | Bucky |
| Respiration | Suspended |
Evaluation Criteria
- Optic foramen demonstrated in the lower outer quadrant of the orbit (traditional teaching)
- Correct side clearly identified — both sides imaged separately for comparison
- No rotation — optic foramen position symmetric to the expected location on the comparison side
💡 Clinical Pearl
Optic foramen radiography is increasingly uncommon — CT and MRI evaluate the orbital apex far better. When it is requested (typically for optic nerve glioma or canal pathology where advanced imaging is unavailable), precise CR geometry is everything: the canal's 35° oblique course is the reason the head must be rotated and the OMBL raised.
View 4: Lateral Orbit
In cases of injury, the lateral projection should be taken with a horizontal beam to demonstrate any fluid levels in the paranasal sinuses. The patient may be positioned erect or supine.
Patient Positioning
- Erect: patient sits facing the vertical Bucky; the head is rotated so the side under examination is in contact with the Bucky or cassette holder. The arm on the same side is extended comfortably by the trunk; the other arm may grip the Bucky for stability.
- Supine: patient lies on the trolley; a gridded cassette is supported vertically against the side under examination.
- Bucky center: 2.5 cm inferior to the outer canthus of the eye
- MSP: parallel to the cassette — inter-orbital line at right angles to the cassette, nasion and external occipital protuberance equidistant
Technical Factors
| Parameter | Lateral Orbit |
|---|---|
| CR | Horizontal, centered to a point 2.5 cm inferior to the outer canthus |
| Grid | Bucky (gridded cassette for supine) |
| Respiration | Suspended |
Evaluation Criteria
- Image contains the facial bones and sinuses, from the frontal sinus posteriorly to the anterior border of the cervical spine
- True lateral: the lateral portions of the floor of the anterior cranial fossa are superimposed
- Foreign body: additional collimation and altered centering point per protocol
📌 Exam Tip
The lateral is often reserved for gross trauma because facial structures superimpose. For a suspected foreign body in the eye, the localization sequence (Clark's) uses two modified OM exposures (eyes level vs adducted) plus three lateral exposures (eyes level, raised, lowered), followed by a tracing method — a classic technique now largely replaced by CT and ultrasound.

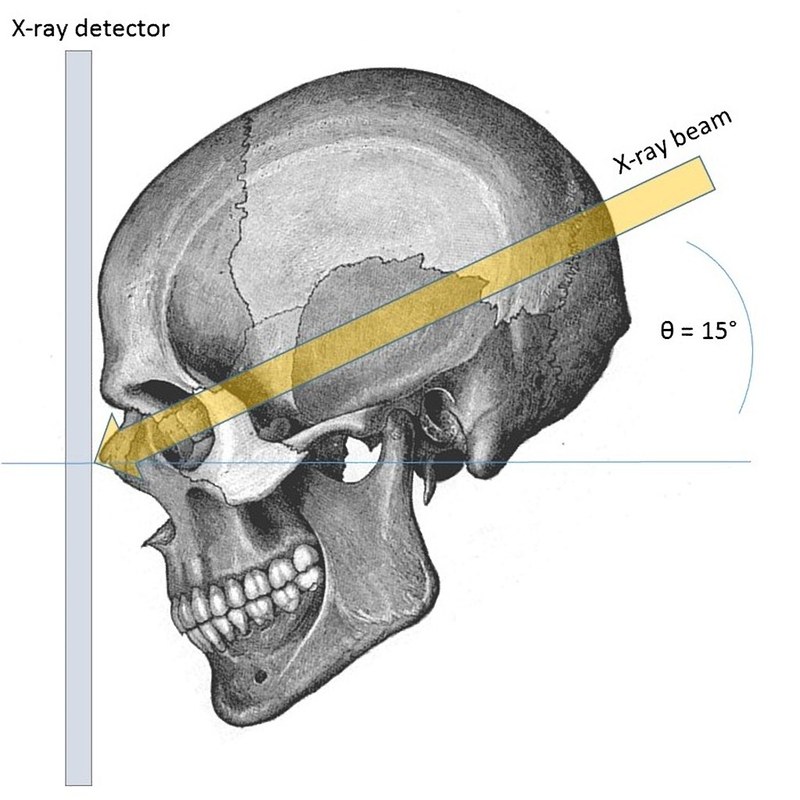

View 5: PA Axial (Caldwell-Type) — Context View
The Caldwell-type PA axial is a skull/facial-bones projection that can be included in orbit trauma protocols. It demonstrates the superior orbital fissures, sphenoid wings, frontal bone, superior orbital margins, and ethmoid region. It is not a universal orbit view — the exact CR angle and exit point are protocol-dependent.
Patient Positioning (Clark's skull technique)
- Position: Seated facing the erect Bucky; MSP coincident with the midline
- Part: nose and forehead in contact with the Bucky
- OMBL: perpendicular to the Bucky
Technical Factors
| Parameter | PA Axial (Caldwell-Type) |
|---|---|
| CR angle | Commonly 15° caudad (Clark's OF15°↓) |
| Centering | Middle of the Bucky along the MSP |
| Grid | Bucky |
| Respiration | Suspended |
Petrous-Ridge Scale (Clark's p240) — High-Yield
| Angulation | Petrous ridge position |
|---|---|
| OF (0°) | Completely superimposed within the orbit, upper borders at the upper third of the orbit |
| OF10°↓ | Middle third of the orbit |
| OF15°↓ | Lower third of the orbit |
| OF20°↓ | Just below the inferior orbital margin |
📌 Exam Tip
As the beam angle increases, more of the orbital region is demonstrated. An injury to the upper orbital region is best evaluated with an OF20°↓ projection — a favorite way to test whether you understand what each angulation shows.
Positioning Summary Table
| View | Patient Position | CR Angle | Centering Point | Grid |
|---|---|---|---|---|
| Modified occipito-mental (orbit) | Erect seated, nose+chin on IR, OMBL 35° | Perpendicular | Mid-orbital region | Bucky |
| OM 30° caudad | Erect seated, OMBL 45° | 30° caudad | CR exits lower orbital margins | Bucky |
| Optic foramina oblique (Rhese-type) | Erect/prone, affected side on IR, MSP 35° to vertical | Horizontal | 7.5 cm above + 7.5 cm behind uppermost EAM | Bucky |
| Lateral orbit | Erect or supine, affected side on IR | Horizontal | 2.5 cm inferior to outer canthus | Bucky/gridded cassette |
| PA axial (Caldwell-type) | Erect/prone, OMBL ⟂ IR | Often 15° caudad | Midline, nasion level | Bucky |
Protocol-Sensitive Review — Orbit Positioning
| Fact | Details |
|---|---|
| Projection count | Not universal; use the order and local protocol. Clark's basic trauma series = OM + OM 30°↓; gross trauma may add lateral |
| Modified OM OMBL angle | 35° to the IR (Clark's) — 10° less than the standard OM |
| FB confirmation OMBL angle | 30° (Clark's) — petrous ridges project just below the inferior orbital margin |
| OM CR | Perpendicular, exiting at the anterior nasal spine level (standard OM) |
| OM 30°↓ CR | 30° caudad, exiting at the lower orbital margins |
| Lateral centering | 2.5 cm inferior to the outer canthus (Clark's) |
| Optic foramen oblique | MSP 35° to vertical; OMBL raised 35°; CR to point 7.5 cm above/behind uppermost EAM (Clark's) |
| Key anatomy | Orbital rims, floor (through maxillary sinus), lateral walls, optic foramen |
| Tradition differences | CE4RT/US facial teaching quotes Waters OML at 37°; Clark's OM uses 45° OMBL. Label by source; do not merge |
Common Positioning Errors
| Error | Result | Fix |
|---|---|---|
| OMBL angle too low on modified OM | Petrous ridges obscure the orbital floor | Re-check the baseline angle immediately before exposure |
| Under-angulation on OM 30°↓ | Incomplete orbital floor demonstration | Verify OMBL at 45° and full 30° caudad CR |
| Head rotated on frontal views | Asymmetric orbital walls | Check outer canthi and EAMs equidistant from the IR |
| Wrong side on optic foramina oblique | Comparison impossible | Confirm the affected side is in contact with the IR; use side markers |
| Dirty cassette for FB exam | Artefact mimics a foreign body | Use a dedicated, scrupulously clean cassette |
| Patient motion | Blurred orbital margins | Immobilize the head; suspended respiration |
Clinical Indications and Imaging Appropriateness
When Radiography Is Requested
- Suspected orbital rim fracture (palpable step-off after trauma)
- Suspected blow-out fracture — restricted eye movement, enophthalmos, infraorbital nerve numbness
- Foreign body screening before MRI
- Gross facial trauma as part of a protocoled facial-bones series
When CT Is the Right Study
CT maxillofacial without IV contrast is the definitive imaging study for significant orbital trauma — it shows the floor, medial wall, and soft tissues (including muscle entrapment) far better than plain films. In the ACR facial-trauma pathway, CT is generally rated the appropriate initial study when complex facial or orbital injury is suspected after the primary survey. A normal orbit radiograph does not exclude a blow-out fracture or muscle entrapment; do not present plain films as a substitute for CT when CT is clinically indicated.
🚨 Don't let imaging delay care
Clinical red flags with orbital trauma — suspected globe rupture, vision change, severe pain, or signs of entrapment — require urgent ophthalmology assessment. Radiography must not delay that evaluation.
Pregnancy, Pediatrics, Dose, and Shielding
- Pregnancy: Verify pregnancy status according to policy, but do not withhold a clinically justified head examination. The uterus is outside a tightly collimated orbital field; fetal exposure is from scatter and is very low. Consult the radiologist/medical physicist rather than quoting a universal dose.
- Pediatrics: Orbital trauma in children often warrants CT when significant injury is suspected; when plain films are ordered, use age/size-appropriate technique, tight collimation, and only the requested views. Immobilization that avoids repeats is the priority.
- Shielding: Do not apply gonadal or fetal shielding routinely. AAPM's shielding statement describes minimal to nonexistent benefit and possible obscuration or interference with exposure control; that policy was sunset at the end of 2024, so follow current facility policy. Collimation and optimized technique — not routine contact shielding — provide the meaningful dose reduction.
- Eye dose: Orbit radiography directly irradiates the lens. Tight collimation, correct centering, and minimum necessary views reduce lens dose; avoid repeat exposures by verifying OMBL angles and rotation before exposing.
Internal Linking — Build Your Knowledge
This orbit positioning guide is part of the complete head and facial positioning library:
- Facial Bones X-Ray Positioning — Waters, Caldwell, lateral, and SMV views for the complete facial skeleton
- Skull X-Ray Positioning — Lateral, PA, AP, Towne, and Caldwell skull projections
- Zygomatic Arch X-Ray Positioning — the zygoma forms the lateral orbital wall
- Paranasal Sinuses X-Ray Positioning — Caldwell, Waters, lateral, and SMV sinus projections
- Nasal Bone X-Ray Positioning — adjacent facial trauma series
- Trauma Radiography Principles — modified positioning for emergency and non-ambulatory patients
- X-Ray Modality Overview — general radiography technique and physics
Test Your Knowledge — Educational Practice Questions
📝 Practice Questions
Question 1: For the modified occipito-mental orbit projection, at what angle should the orbito-meatal baseline be positioned to the IR (Clark's)?
Question 2: A technologist performs an OM 30° caudad projection. Where should the central ray exit?
Question 3: Which evaluation criterion confirms correct angulation on the modified orbit OM?
Question 4: What is the Clark's centering point for the lateral orbit projection?
Question 5: The optic canal passes forward and laterally at approximately what angle to the median sagittal plane?
Quick Reference — Orbit Positioning Checklist
Use this checklist before every orbit X-ray exam:
- ✅ Ordered projection set checked against the local protocol; no automatic extra views
- ✅ Correct radiopaque side marker placed for every projection
- ✅ Detector, SID, grid, and exposure selected from the validated local chart
- ✅ Modified orbit OM — OMBL at 35°, CR perpendicular to mid-orbit level, tight collimation
- ✅ OM 30°↓ — OMBL at 45°, CR 30° caudad exiting the lower orbital margins
- ✅ Optic foramina oblique — affected side on the IR, MSP 35° to vertical, OMBL raised 35°, CR emerges from orbit center
- ✅ Lateral — true lateral check (anterior cranial fossa floor superimposed), CR 2.5 cm inferior to outer canthus
- ✅ Petrous-ridge position verified on every frontal image (angle feedback)
- ✅ Dedicated clean cassette for foreign-body exams
- ✅ No motion — sharp orbital margins confirmed
Authoritative Sources
- Clark's Positioning in Radiography, 12th edition (Whitley, Sloane, Hoadley, Moore, Alsop — Hodder Arnold, 2005): orbit projections pp. 262–269; optic foramina p. 248; petrous-ridge scale p. 240; foreign-body confirmation p. 477.
- ACR Appropriateness Criteria®: Imaging of Facial Trauma Following Primary Survey — CT maxillofacial without IV contrast is generally appropriate for significant orbital/facial injury.
- ARRT Examination Content Specifications — official exam scope; not a facility protocol.
Radiography 101
Educational resource for radiologic technology students and professionals. This guide is for educational purposes and does not replace the imaging order, clinical assessment, or institutional protocol.
