Radiation Dose Units Explained: Gray, Sievert & Rem

Understanding how your dose is measured is the difference between reading a dosimetry report with confidence and squinting at it wondering what those numbers mean. This guide unpacks the units — gray, sievert, rad, and rem — plus the three dose quantities that use them, the weighting factors the ARRT loves to test, and the dose limits that govern your badge.

If you're reviewing the broader picture, read this alongside our guides on radiation safety for radiologic technologists and how x-rays interact with matter.

Why Are There So Many Dose Units?

The short answer: there are two parallel systems. The modern SI system uses the gray (Gy) and sievert (Sv). The older system — still common in US dosimetry reports — uses the rad and rem. You'll need both, because different departments and textbooks use different ones, and the ARRT exam switches between them freely.

There are also three different dose quantities, each answering a different question about an exposure. That's where the confusion usually starts — so let's separate them clearly.

The Three Dose Quantities

1. Absorbed Dose (measured in Gray)

Absorbed dose is the energy deposited in a substance by ionizing radiation. It's the physical, measurable quantity.

• SI unit: the gray (Gy) — 1 Gy = 1 joule of energy per kilogram (J/kg)
• Legacy unit: the rad — 1 Gy = 100 rad

Absorbed dose describes energy input only. It doesn't account for what the radiation hits or how much biological damage it causes — that's the job of the next two quantities.

2. Equivalent Dose (measured in Sievert)

Equal absorbed doses of different radiation types do not produce equal biological effects. A gray of alpha radiation causes far more tissue damage than a gray of beta or x-ray radiation, because high-LET particles deposit their energy over a much shorter path.

Equivalent dose adjusts the absorbed dose by a radiation weighting factor (wR):

equivalent dose (Sv) = absorbed dose (Gy) × wR

• SI unit: the sievert (Sv)
• Legacy unit: the rem — 1 Sv = 100 rem

The weighting factor lets you compare like with like: 1 Sv of alpha radiation has the same biological effect on a given tissue as 1 Sv of beta radiation.

3. Effective Dose (also measured in Sievert)

Different organs and tissues have different radiation sensitivities — bone marrow is far more radiosensitive than muscle or nerve tissue. Effective dose adjusts the equivalent dose by a tissue weighting factor (wT) for each organ, then sums across the whole body to give an overall risk figure.

• Unit: also the sievert (Sv)
• Used for: setting dose limits, because it represents whole-body risk

So the takeaway: absorbed dose is the physics quantity (Gy). Equivalent dose and effective dose are protection quantities (Sv) that build in biological harm. For diagnostic x-rays and gamma rays, wR = 1, so the numbers often look similar — but the units are not interchangeable.

Radiation Weighting Factors (wR): ARRT High-Yield

The radiation weighting factor (wR) is one of the most-tested numbers on the ARRT exam. These are the standard values from ICRP Publication 103:

Gray vs Sievert vs Rad vs Rem: How They Connect

The simplest way to keep all four units straight is to remember the SI pair and the legacy pair of each quantity:

The sub-multiples you'll see on badges and reports:

• 1 Sv = 1,000 mSv = 1,000,000 µSv
• 1 Gy = 1,000 mGy
• 1 mSv = 100 mrem (and 1 mrem = 0.01 mSv)

You'll Also Meet: Roentgen and Becquerel

Two more units appear on the exam, and they measure something other than dose:

• Roentgen (R) — measures exposure in air: the ionization produced in air by x-rays or gamma rays. It is not an absorbed dose. The SI unit for exposure is the coulomb per kilogram (C/kg).
• Becquerel (Bq) — measures radioactive activity: one becquerel = one decay per second. The legacy unit is the curie (Ci), where 1 Ci = 3.7 × 10¹⁰ Bq (roughly the activity of 1 gram of radium).

Typical Radiation Doses for Common Imaging Exams

To make these units concrete, here are typical effective doses for common examinations. Values are for an average-sized adult and vary with body size and protocol.

Source: Mettler FA, Huda W, Yoshizumi TT, Mahesh M. "Effective doses in radiology and diagnostic nuclear medicine: A catalog." Radiology 248:254–263, 2008; ACR. "Radiation Dose to Adults From Common Imaging Examinations," April 2025.

How These Compare to Natural Background Radiation

Natural background radiation comes from cosmic rays, terrestrial sources, radon gas, and even the food we eat. The worldwide average is roughly 2–3 mSv per year — in Canada, the CNSC estimates about 3 mSv/yr (around 0.3 mSv cosmic at sea level, 0.5 mSv terrestrial, 1.2 mSv radon inhalation, and 0.3 mSv from ingested radionuclides).

So a chest PA at 0.02 mSv is roughly the dose of 2–3 days of background radiation — a very small exposure. A head CT at 2 mSv is roughly 8 months of background radiation. This context helps reassure anxious patients and answers common ARRT questions comparing exam doses to background.

Radiation Dose Limits: US (NCRP) vs International (ICRP)

Dose limits set the maximum dose an individual may receive in a planned exposure situation, measured above natural background. Critically, the US and international systems use different occupational values — know both, but the ARRT (a US registry exam) tests the NCRP numbers.

US NCRP Dose Limits (what the ARRT tests)

International ICRP Dose Limits (Canada & worldwide)

ALARA and Personal Dosimetry

Dose limits work alongside the three fundamentals of radiation protection — justification, optimisation, and limitation — which you'll hear together as ALARA: As Low As Reasonably Achievable. Any justified exposure should be kept as low as practical using your three tools:

• Time — minimize the duration of exposure
• Distance — remember the inverse square law: doubling distance quarters the dose
• Shielding — lead aprons, gloves, thyroid and gonad shields

Personal dosimetry is how we verify you stay within limits. Rad techs wear monitoring devices processed regularly:

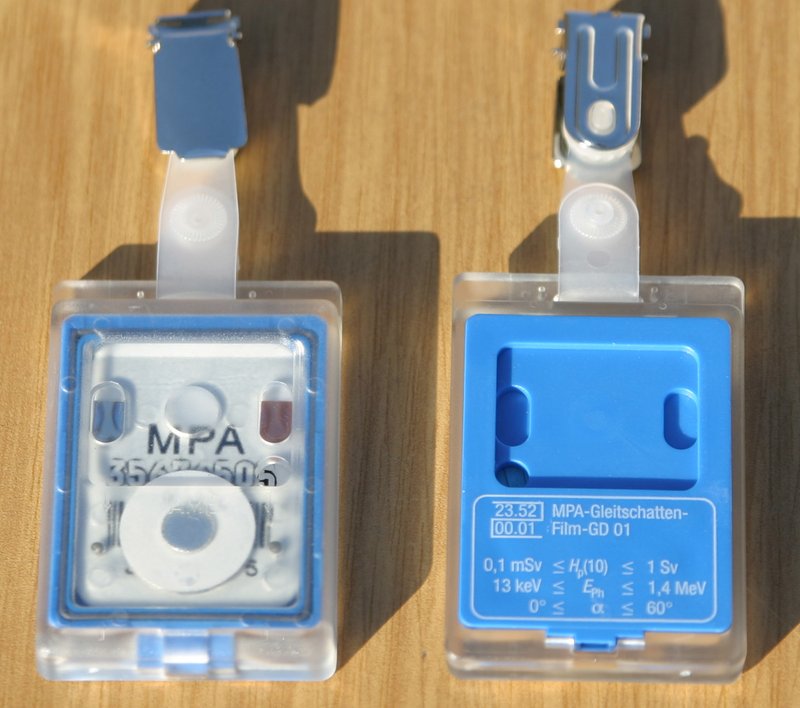

• Film badges, OSL dosimeters, or TLDs — worn at collar or chest level, outside the lead apron
• Fetal/embryo badges — worn at the waist by declared-pregnant workers
• Processed monthly or quarterly; dose reported in mSv (or mrem in the US)

Why Dose Units Matter for Your Career

Mastering dose units isn't just about passing the ARRT — it's the language of everyday patient safety. When a radiologist asks about the dose on a portable chest, you should be able to say it's on the order of a few tenths of a mSv and explain that's roughly a few days of background radiation.

These concepts build directly on how the x-ray beam behaves in tissue — see x-ray interactions with matter — and how radiation safety is applied at the imaging table. And to keep that scattered radiation from reaching you, you'll rely on grids and scatter control.
