X-Ray Interactions with Matter: Photoelectric vs Compton

Every radiograph you produce is really a map of one thing: x-ray interactions with matter. As the beam passes through the patient, photons are absorbed, scattered, or transmitted — and the pattern those photons leave on the detector is the image. Two interactions do almost all of the work in diagnostic radiography: the photoelectric effect and Compton scattering. Understand how they behave, and you'll understand image contrast, scatter fog, technique selection, and a big slice of the physics questions on the ARRT registry.

This guide breaks down all five ways x-rays interact with matter, explains why photoelectric and Compton dominate, and shows you how that knowledge drives everyday decisions about kVp, collimation, and grids. Need a refresher on where the beam comes from first? See our x-ray production guide or the x-ray physics overview.

Why X-Ray Interactions Matter

Before an image exists, three things can happen to any photon in the beam:

• It can pass through the patient without interacting (transmission).
• It can be absorbed completely, depositing all its energy in tissue.
• It can be scattered, changing direction with the same or less energy.

Attenuation is the combined result of absorption and scattering — the reduction in the number of photons that make it through the patient. A radiograph is essentially an attenuation map: dense bone attenuates more than soft tissue, and soft tissue attenuates more than air. The thicker or denser the structure, the whiter it appears, because fewer photons reach the detector behind it.

Which interaction causes the attenuation matters enormously. Photoelectric absorption builds contrast. Compton scattering destroys it. That trade-off is the heart of this topic — and it's worth knowing cold for the registry.

The Five Ways X-Rays Interact with Matter

Physicists list five interactions between x-ray photons and matter:

Only the first two matter in daily imaging. The last three still show up on exams — usually as "which interaction requires 1.02 MeV?" — so we'll cover all five.

The Photoelectric Effect: The Contrast Maker

In the photoelectric effect, an x-ray photon collides with a tightly bound inner-shell electron (usually K-shell) and is completely absorbed. The photon disappears. The electron is ejected from the atom with kinetic energy equal to the difference between the photon's energy and the electron's binding energy.

That leaves a vacancy in the K-shell. An outer-shell electron drops down to fill it, releasing the energy difference as a characteristic photon — the same process described in our article on how x-rays are produced. For low-Z tissue, these characteristic photons are very low energy and are absorbed locally. Either way, the result is the same: the photon's energy is deposited in the tissue, and nothing reaches the detector from that interaction.

The Z³/E³ Rule

Two factors control how often photoelectric interactions happen:

• Atomic number (Z): probability increases roughly with Z³ — a steep climb. Bone (effective Z ≈ 13.8) and soft tissue (effective Z ≈ 7.4) differ enough that photoelectric absorption separates them cleanly. That's why bone looks white.
• Photon energy (E): probability falls roughly with 1/E³. Low-energy photons are far more likely to be absorbed by the photoelectric effect; high-energy photons tend to sail through.

Combined, the textbook approximation is photoelectric probability ∝ Z³/E³. This single relationship explains the two most important facts in technique selection: low kVp maximizes photoelectric interactions and therefore contrast, and high-Z materials (bone) show up best at lower energies.

Compton Scattering: The Scatter Maker

Compton scattering happens when an x-ray photon strikes a loosely bound outer-shell electron. The photon gives the electron part of its energy — ejecting it and ionizing the atom — then continues in a new direction with less energy. In concept: incident photon energy = scattered photon energy + ejected electron energy.

A few exam-critical properties:

• The probability of Compton scattering does not depend on atomic number — only on electron density, which is nearly the same per gram for most tissues.
• The probability decreases as photon energy increases, but much more slowly than photoelectric. In water and soft tissue, Compton is the most probable interaction from roughly 30 keV through 24 MeV — which spans most of the diagnostic range (typical beams run about 20–150 keV).
• The scattered photon can travel in any direction, including straight back (180° backscatter) toward the tube. The smaller the deflection angle, the more energy the scattered photon keeps.

Why Scatter Ruins Images

Compton-scattered photons carry no useful image information — their direction has nothing to do with anatomy. They fly sideways and backward, and when enough of them reach the detector, they add a uniform exposure called scatter fog. Fog raises the optical density evenly, which lowers contrast and makes radiographs look dull, flat, and gray.

Scatter Is Also a Safety Problem

The same scattered photons that fog your images are a radiation hazard to you. In a typical examination, the patient becomes the source of scattered radiation, and that scatter is the main source of occupational exposure for radiographers — especially in fluoroscopy, where the beam stays on for long periods, and in portable work. Our radiation safety guide and fluoroscopy safety guide cover the shielding and distance strategies in detail: stand back, use lead aprons and thyroid shields, and work from the image intensifier side rather than the tube side whenever you can.

Coherent (Classical) Scattering: The Negligible One

Coherent scattering — also called classical, Rayleigh, or Thomson scattering — occurs when a low-energy photon interacts with the electron cloud and is deflected without losing energy. No ionization, no absorption, just a change in direction, mostly forward.

It only happens at very low photon energies, typically below about 10 keV. Since almost the entire diagnostic beam sits above that, coherent scattering contributes essentially nothing to radiographs. Its only exam presence is the "which interaction involves no ionization and no energy change?" question — the answer is coherent scattering.

Pair Production and Photodisintegration: The High-Energy Two

Two interactions exist only at energies far above diagnostic radiography — but they're fair game on physics exams:

• Pair production: a photon with at least 1.02 MeV of energy passing near the atomic nucleus converts into an electron and a positron (each with a rest mass of 0.511 MeV, so 2 × 0.511 = 1.022 MeV minimum). Any excess energy becomes kinetic energy shared between the two particles. Since diagnostic beams never approach 1 MeV, pair production simply doesn't occur in general radiography.
• Photodisintegration: at roughly 10 MeV and above, a photon can be absorbed directly by the atomic nucleus, exciting it so violently that it emits nucleons or other nuclear fragments. You'll only encounter this at radiation-therapy and accelerator energies.

The mnemonic that separates them: pair production begins where twice the electron rest mass ends (1.02 MeV), and photodisintegration needs about ten times more energy again.

Photoelectric vs Compton: Side-by-Side

Here's the comparison that matters most for the registry — learn which properties belong to which interaction:

Why Higher kVp Reduces Contrast

Here's the payoff: because photoelectric probability falls steeply with energy (1/E³) while Compton falls only slowly, raising kVp shifts the mix toward Compton scattering — and away from the differential absorption that creates contrast.

• At low kVp (extremities, roughly 55–65 kVp), photoelectric absorption dominates. Bone absorbs much more than soft tissue, so the image shows strong contrast between the two.
• At high kVp (chest, roughly 110–125 kVp), Compton scattering dominates. Every tissue attenuates more similarly, so the image becomes low-contrast — exactly what chest radiography wants, to see the lung fields through the ribs.

That's the physics behind everything in our kVp and mAs guide: kVp is your primary contrast control, mAs is your primary density control, and the 15% rule works because a 15% kVp increase shifts the interaction balance away from photoelectric absorption (which falls as roughly 1/E³) toward Compton scattering — so the mAs must be cut roughly in half to hold image density steady. Keep the two interactions in mind and technique selection stops feeling like memorization.

Managing Scatter: Collimation and Grids

If Compton scatter is inevitable, the art of radiography is stopping it from reaching the detector:

• Collimation reduces the volume of tissue irradiated, which reduces the number of Compton events. Less volume = less scatter = better contrast, plus lower patient dose.
• Grids sit between patient and detector and absorb the obliquely angled scattered photons while letting the primary beam through. The trade-off is increased technique (mAs) to compensate for grid absorption — the grid conversion factor.
• Air-gap technique exploits distance instead: scatter spreads out over the larger gap, so proportionally less reaches the detector.

Our radiographic grids and scatter control guide walks through grid ratios, selecting the right grid, and the dose implications.

Interactions in CT: Same Physics, New Angles

The same two interactions drive computed tomography — a CT machine literally measures the attenuation of each voxel from hundreds of angles.

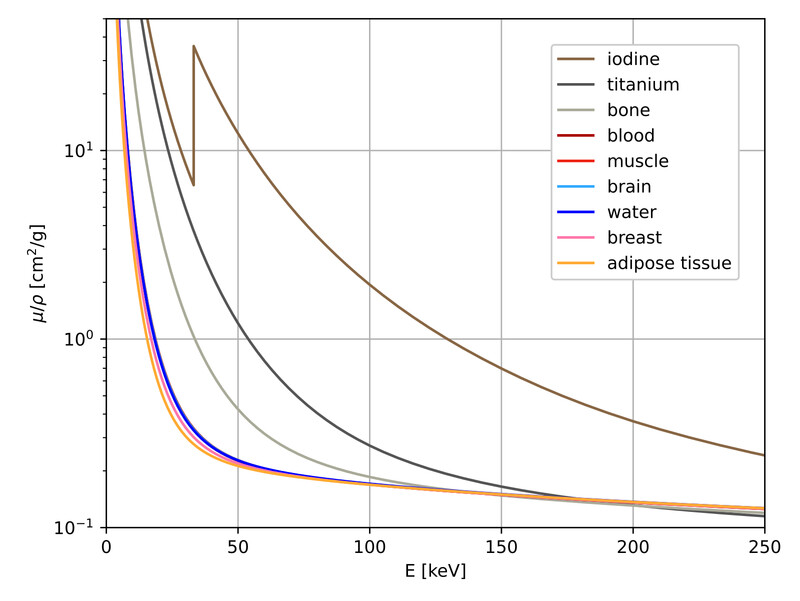

• Iodine- and barium-based contrast agents work because of the photoelectric effect: they have a high effective Z, and their characteristic absorption jumps (k-edges) sit in the diagnostic energy range, so even low concentrations absorb strongly.
• Choosing tube voltage in CT is the same physics debate in miniature: lower kVp boosts iodine contrast (more photoelectric) at the cost of more noise and patient dose.

For more, see our CT scan physics guide and the CT modality page. And for the imaging side of radiography in general, the X-ray modality hub collects everything we've published on general radiography.

Key Takeaways

• Two interactions matter diagnostically: photoelectric (the contrast maker, ∝ Z³/E³) and Compton (the scatter maker, Z-independent, dominant from ~30 keV up).
• kVp is a contrast control because it balances photoelectric vs Compton in the beam.
• Scatter fog comes from Compton; manage it with collimation, grids, and air gaps.
• Scatter is your main occupational dose — respect distance, shielding, and beam-on time.
• Pair production (1.02 MeV) and photodisintegration (>10 MeV) never happen in general radiography, but they're classic exam answers.

Frequently Asked Questions

Which x-ray interaction is most important for image contrast?

The photoelectric effect. It completely absorbs photons, and because its probability rises steeply with atomic number (Z³), it produces the differential absorption between bone and soft tissue that creates radiographic contrast.

Which x-ray interaction produces the most scatter radiation in diagnostic radiography?

Compton scattering. It dominates in soft tissue across most of the diagnostic energy range (roughly 30 keV to 24 MeV), and its scattered photons are what cause fog on the image and occupational exposure around the patient.

Why does increasing kVp reduce image contrast?

Higher kVp shifts interactions from photoelectric absorption (which drops fast, 1/E³) toward Compton scattering (which drops slowly), so tissues attenuate more alike. Less differential absorption means lower contrast.

What is the probability rule for the photoelectric effect?

Photoelectric probability is approximately proportional to Z³/E³ — the cube of the atomic number divided by the cube of the photon energy. Low energy and high atomic number both strongly increase photoelectric absorption.

Why does pair production not occur in diagnostic radiography?

Pair production requires a photon energy of at least 1.02 MeV (twice the 0.511 MeV electron rest mass). Diagnostic x-ray beams are roughly 20–150 keV, far below the threshold, so pair production cannot happen.

What is the difference between coherent scattering and Compton scattering?

Coherent (classical) scattering is elastic: the photon changes direction but loses no energy and causes no ionization, and it only happens below about 10 keV. Compton scattering is inelastic: the photon loses energy, ionizes an outer-shell electron, and is scattered at any angle up to 180°.
