X-Ray Collimation: 7 Rules for Lower Dose & Sharper Images
Every radiograph you produce starts with a choice: how big is the field? That single decision — made with the beam-limiting device on the x-ray tube — shapes your patient's dose, the amount of scatter fog on your image, and even how well your digital system rescales the exposure. It's called collimation, and it's one of the highest-yield topics on the ARRT exam because it sits at the intersection of patient protection and image quality.
Here's the good news: collimation is a free improvement. It needs no extra equipment, no technique change, and no added cost — yet it lowers dose and sharpens contrast at the same time. Let's look at exactly how it works and the 7 rules you'll carry into clinical practice.
If you're reviewing the broader picture, read this alongside our guides on radiographic grids and scatter control and radiographic image sharpness.

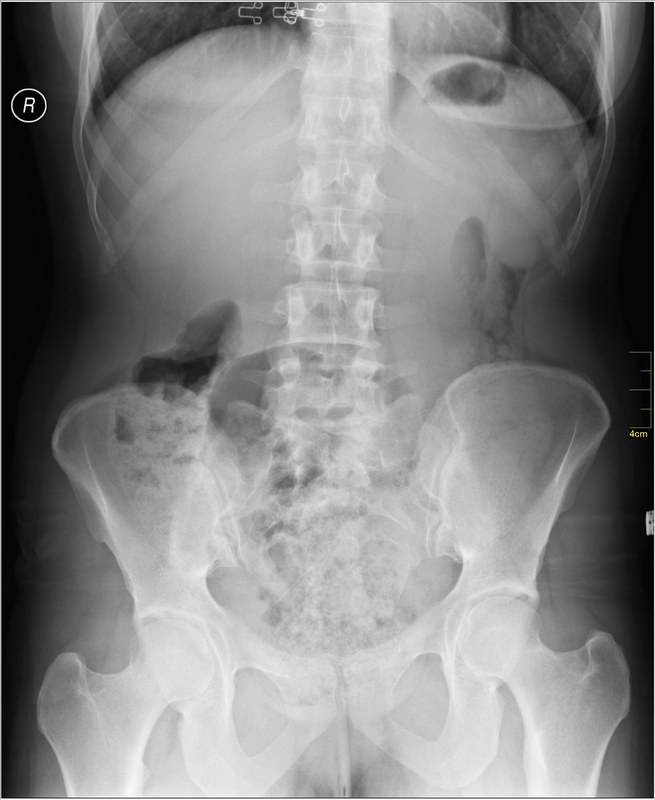

What Is Collimation?
Collimation is the restriction of the x-ray beam to the smallest field that contains the anatomy needed to answer the clinical question. The device that does this — the beam-limiting device, or simply the collimator — sits at the exit port of the x-ray tube housing, between the tube and the patient.
💡 Clinical Pearl
Think of the collimator as the "lens hood" of your x-ray camera. It blocks light (and here, x-rays) from hitting areas you don't want to expose. Collimate to the area of clinical interest — and no more.
The Canadian Association of Medical Radiation Technologists (CAMRT) puts it directly: using collimation to limit the beam at the source is "the most effective radiation protection for the patient and personnel." It narrows the area the radiation can strike, shrinks the volume of tissue that gets irradiated, and reduces scatter radiation at the same time.
How the Collimator Works
The modern collimator is more than a simple shutter. A variable-aperture collimator typically includes:
- Two pairs of adjustable lead shutters that form a rectangular opening. One pair sits near the tube; a second pair closer to the patient keeps the field edges sharp (reducing penumbra at the beam edge).
- A light beam diaphragm (LBD) — a mirror and a visible-light source that projects light through the same shutters onto the patient. Because light and x-rays follow the same path through the shutters, the light field shows you exactly where the beam will land.
- Field size indicators — scales or readouts on the collimator that display the projected field dimensions.
- Positive Beam Limitation (PBL) — on some systems, an automatic feature that sizes the field to match the image receptor (or a set fraction of it).
⚠️ Quality Note
The alignment between the light field and the x-ray field must be checked regularly as part of quality control. If they drift apart, you'll think you're collimating to an area the beam actually overshoots — exposing more tissue than intended.
Collimation vs Filtration: Know the Difference
A common confusion on the exam: collimation and filtration both "shape" the beam, but they do different things.
| Beam modifier | What it does | What it limits |
|---|---|---|
| Collimator | Shapes the field (area) with lead shutters | The exposed region of the patient |
| Filtration | Removes low-energy photons to harden the beam | The quality (energy spectrum) of the beam |
Filtration (usually aluminum or copper) sits in the beam and strips out low-energy photons that would otherwise be absorbed by the patient and contribute nothing useful to the image. Collimation limits how much of the patient is in the field at all. They work together, but they're different tools.
Why Collimation Lowers Patient Dose
Collimation reduces dose by reducing the volume of tissue that is irradiated and the total (integral) energy deposited in the patient. A smaller field means less healthy tissue lying outside the area of clinical interest gets exposed at all.
⚠️ ARRT Accuracy Nuance
For a point already inside the field, collimation does not lower the skin dose at that point — the primary beam still passes through it. What collimation actually cuts is the amount of tissue irradiated, the total energy deposited (integral dose), and the dose to tissue outside the field. Say it correctly: collimation reduces the irradiated volume and integral dose, and largely eliminates dose to tissue outside the collimated field.
This is why collimation is described as a foundational, no-cost ALARA measure — the "As Low As Reasonably Achievable" principle behind all radiation protection.
Why Collimation Improves Image Quality
Collimation does double duty: it protects the patient and cleans up the image.
When a large volume of tissue is irradiated, more x-ray photons scatter out of their original path. That scattered radiation reaching the image receptor acts as fog that lowers subject contrast and adds noise. By narrowing the beam, you reduce the volume producing scatter, which means:
- Less scatter reaches the receptor → higher subject contrast
- Less image noise from scatter originating outside the region of interest
- The anatomy your radiologist needs to evaluate is easier to see
In short, tight collimation makes your anatomy of interest look cleaner and exposes less tissue — a free win that improves two things at once with zero added technique.
Collimation in the Digital World: The Catch
Digital radiography (DR) and computed radiography (CR) add a layer of nuance. The system builds a histogram of the exposure to automatically rescale the image. Inappropriate collimation — either over-collimation or under-collimation — can skew that histogram and cause data-recognition errors, producing an incorrectly rescaled image or a misleading exposure indicator (EI) reading.
There's a temptation in digital to "fix" sloppy collimation after the fact by cropping the image. That's the wrong tool:
⚠️ Digital Trap — Shuttering is not collimation
Post-processing techniques like shuttering or masking crop or black out areas of the displayed image, but they only mimic collimation on screen. They do not reduce the radiation dose the patient received (CAMRT). If you didn't collimate at the tube, the patient already got the full field of radiation — regardless of how the final image looks.
Collimation and AEC
Tight collimation works alongside automatic exposure control (AEC). The general guidance across departments: select and collimate so your AEC chamber reflects the area of clinical interest, and confirm the chamber lies within the collimated field. Exact chamber configuration is system- and protocol-specific — follow your department's validated technique chart rather than a universal rule.
Collimation, Grids, and Scatter
Collimation and the antiscatter grid are partners. A grid absorbs scatter before it reaches the receptor — but the less scatter you produce in the first place, the less the grid has to remove. That's why good collimation and grid selection go together.
- Thick body parts and higher kVp produce more scatter, so they typically need a grid.
- Tight collimation reduces the scatter load the grid must handle.
- For thin parts where scatter is minimal, good collimation can make a grid unnecessary (air-gap or gridless technique) — reducing dose further.
Read the full picture in our guide to radiographic grids and scatter control.
The 7 Rules of Collimation
Here's the checklist to carry with you — the same points reinforced across programs and clinical departments:
| # | Rule | Why it matters |
|---|---|---|
| 1 | Collimate to the area of clinical interest only | Cuts dose and scatter; improves contrast |
| 2 | Match the field to the image receptor — don't exceed it | Avoids unnecessary exposure outside the IR |
| 3 | Never crop past anatomy you need for evaluation | Over-collimation forces a repeat → added dose |
| 4 | Center the beam and collimator on the anatomical point of interest | Correct borders start with correct centering |
| 5 | Don't rely on shuttering/masking to hide poor collimation | It doesn't reduce dose; fix it at the tube |
| 6 | Respect how collimation affects the histogram/EI in digital | Over/under-collimation causes rescale errors |
| 7 | Make it automatic in pediatrics and trauma | Kids are more radiosensitive; trauma limits repositioning |
💡 ARRT Exam Tip
The exam frequently pairs collimation with both protection ("what dose does collimation reduce?") and image quality ("what does collimation improve?"). If an option says collimation increases dose or scatter — it's wrong. If it says collimation reduces the skin dose at a point inside the field — be careful, that's the subtle error. It reduces irradiated volume and integral dose, not the entrance dose at a fixed point in the beam.
Collimation in Pediatrics and Beyond
Collimation matters most where it's easiest to skip it. Children are more radiosensitive and have a longer lifetime to express potential effects, so tight collimation is a core, no-cost dose-reduction step for every pediatric examination — and it pairs with child-sized technique sets and repeat-avoidance. See our pediatric dose reduction strategies for the broader ALARA toolkit. The same discipline protects you, too: good collimation at the source also reduces scatter reaching staff in the room.
Wrapping Up
Collimation is the rare radiology skill that makes you a better protective technologist and a better image-maker at the same time — with no added cost. Master the hardware (shutters, light beam diaphragm, PBL), remember the distinction from filtration, respect the digital histogram, and make the 7 rules automatic. It's a small daily habit with an outsized effect on every radiograph you produce. For more on keeping your images sharp and clean, see radiographic image sharpness and radiographic density and contrast.
Test Your Knowledge
Try these educational multiple choice questions based on this article. They are not official ARRT questions. Click an option to check your answer — correct answers turn green, wrong ones turn red.
Collimation narrows the field, reducing the volume of tissue irradiated and the total (integral) energy deposited. For a point already inside the field, the entrance skin dose does not change — the primary beam still passes through it.
Hardening the beam by removing low-energy photons is the job of filtration, not the collimator. The collimator shapes the field and reduces the volume irradiated and scatter.
Shuttering and masking are post-processing image-modification steps that only mimic collimation. They do not reduce the radiation dose already delivered and are not acceptable substitutes for collimation at the tube (CAMRT).
Narrowing the beam reduces the volume producing scatter, so less scattered radiation reaches the receptor. Less scatter means higher subject contrast and less image noise.
For a point already within the beam, the primary beam still passes through it, so the entrance skin dose at that point is unchanged. Collimation reduces the volume irradiated, integral dose, and scatter.
