Radiographic Image Sharpness: 6 Factors for Sharper X-Rays

Two radiographs of the same patient can look completely different: one crisp enough to count trabeculae, the other soft and slightly blurred, as if seen through frosted glass. Radiographic image sharpness — technically spatial resolution — is what separates them. It is the ability of the imaging system to show two closely spaced structures as separate, distinct edges instead of one fuzzy smear.

Sharpness matters because it limits how much diagnostic information an image actually carries. A blurred edge can hide a subtle fracture, a fine cortical line, or microcalcifications — the exact details that decide whether an image confirms or misses the diagnosis. And it is a favorite target on the ARRT radiography exam, which will ask you to reason about the geometry of the setup rather than memorize views.

This guide breaks sharpness into the six factors you control every shift: focal spot size, source-to-image distance (SID), object-to-image distance (OID), motion, the image receptor, and quantum noise. For each you'll get the physics, a simple formula where one exists, and the ARRT-exam way to think about it.

If you want the fundamentals first, brush up on the kVp and mAs exposure factors and how the X-ray tube and focal spot work — both feed directly into detail. Or jump straight in.

Why Image Sharpness Matters on the ARRT Registry

The ARRT radiography content specifications test image quality, image acquisition, and equipment as major content areas, and sharpness / spatial resolution sits right in the middle of them. The exam won't ask you to recite definitions word-for-word — it will hand you a scenario: "A technologist switches from the small to the large focal spot. What happens to image sharpness, and why?" Or: "The patient's hand is lifted off the cassette during an AP hand. How does magnification change?" Those are sharpness questions wearing a clinical disguise.

The good news: sharpness is governed by a small set of physical rules. Learn the six factors below and the trade-offs between them, and you can reason your way to the right answer even on a question you've never seen before.

The Quick Picture: Six Factors at a Glance

Here is the whole topic in one table. Each factor, what it does, and how to push it in the sharper direction:

Notice the recurring theme: a small focal spot, a long SID, a small OID, and no motion all buy you sharpness — but they cost you exposure, dose, heat, or convenience. Radiography is a constant balancing act, and the exam wants to see you understand the trade-offs, not just the ideal.

Factor 1: Focal Spot Size — the Source of Geometric Unsharpness

Every X-ray beam starts from a tiny but finite area on the anode called the focal spot. In a perfect world the beam would originate from a single mathematical point, and every edge in the patient would cast a razor-sharp shadow on the detector. In the real world, X-rays are produced from slightly different positions across that finite spot, so each edge projects as a partial-shadow transition zone called the penumbra. The bigger the focal spot, the wider the penumbra, and the blurrier the edge.

This blur is quantified by the geometric unsharpness formula:

Ug = (F × OID) / SOD

• Ug = geometric unsharpness (edge blur)
• F = focal spot size
• OID = object-to-image distance
• SOD = source-to-object distance

Read the formula and the controls fall straight out. Geometric unsharpness gets worse when you increase the focal spot (F) or move the object farther from the detector (larger OID), and it gets better when the source-to-object distance (SOD) grows. To sharpen an image you want a small focal spot, a small OID, and a large SOD — which, since SID = SOD + OID, effectively means a longer SID.

The line focus principle — why tubes can be both small and powerful

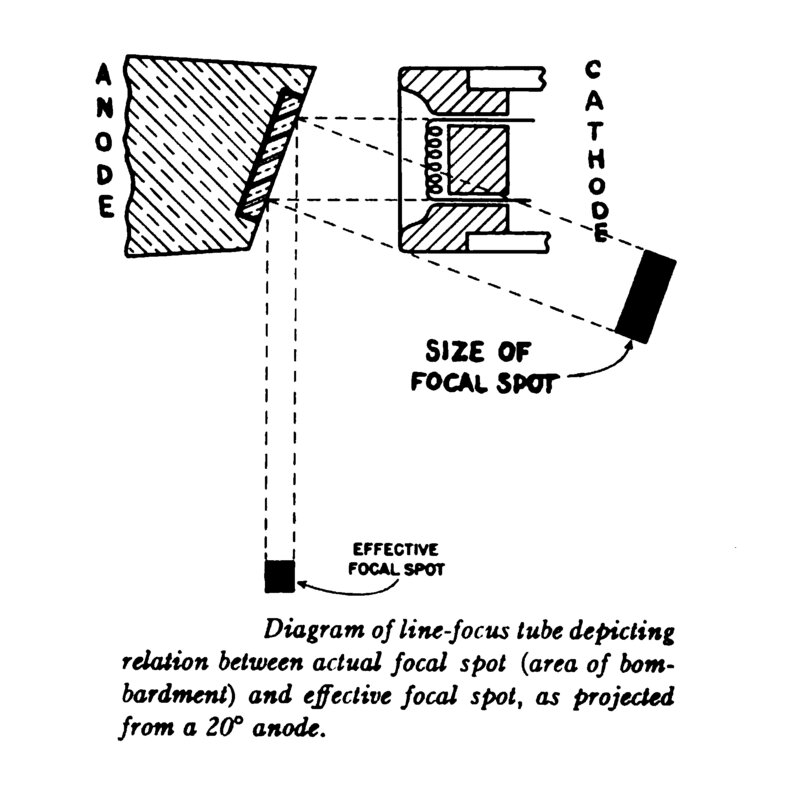

Here's the engineering trick that makes sharp, powerful tubes possible. Electrons strike a region on the anode called the actual focal spot. Because the anode is angled, the focal spot as seen by the image receptor — the effective focal spot — is smaller than its true physical area:

Effective focal spot = actual focal spot × sin(θ)

where θ is the anode angle. The actual focal spot handles heat (roughly 99% of electron energy is converted to heat rather than X-rays, so you want that energy spread over a large area to protect the anode), while the effective focal spot determines sharpness. Angling the anode gives you a small effective (imaging) spot without cooking the anode.

That's also why a radiography tube offers two focal spots: a small (fine) focal spot for high-detail work like extremities, and a large (broad) focal spot that handles the higher mA needed for thicker body parts. The operator chooses: fine focus for detail, broad focus for output — and accepts a little more blur in exchange.

Factor 2: Source-to-Image Distance (SID) — the Detail Scale

The beam from the focal spot diverges like a flashlight beam, spreading as it travels. That divergence is what creates magnification, and it directly shapes sharpness. The magnification factor is:

M = SID / SOD = image size / object size

Because SID is almost always larger than SOD (the object sits between the source and the detector), M is always greater than 1 — every radiographic image is slightly magnified. You can't eliminate it; you can only minimise it.

• Increase SID → magnification decreases, geometric unsharpness decreases → sharper image.
• Decrease SID → magnification increases, unsharpness increases.

This is the reason a chest radiograph is shot at a long SID (about 180 cm / 72 inches) with the patient pressed against the detector: it keeps the heart from looking artificially enlarged. On a portable (bedside) AP chest, the shorter available distance and larger OID can make the cardiac silhouette look larger than it truly is — a well-known pitfall when your supervisor asks, "Is this heart really enlarged?" See our chest X-ray positioning guide for the portable-versus-erect breakdown.

Factor 3: Object-to-Image Distance (OID) — Keep the Part on the Detector

OID is the gap between the anatomical part and the image receptor. Recalling that SOD = SID − OID, moving a structure away from the detector increases OID, decreases SOD, and therefore:

• increases magnification (M goes up), and
• increases geometric unsharpness (Ug = F×OID/SOD goes up).

The fix is simple and it's half of positioning: place the part as close to the detector as possible. A hand resting flat on the cassette is far sharper than a hand suspended several centimetres above it, even at the same focal spot and SID. In trauma, when a part can't touch the detector, the technologist accepts the resulting magnification and blur because keeping the patient still matters more — another deliberate trade.

Factor 4: Motion — the Blur That Ruins Everything

All the geometry in the world is wasted if the patient moves during the exposure. Motion unsharpness is blur caused by movement of the patient (or the tube) while the image is being made. Because motion blur is controlled by the time the detector is exposed, your main weapons are:

• Short exposure times — the less time the detector is open, the less the anatomy moves across it. Chest exposures can be as short as 0.003 s, which is fast enough to control motion even in paediatric patients.
• Breath-hold and precise instructions — tell the patient exactly when to stop breathing, and why.
• Immobilisation and comfort — a comfortable, supported patient moves less; sponges, straps, and clear communication all help.
• Planning — the fewer repeats, the fewer chances the patient shifts.

The motion-versus-focal-spot tension we saw above is the single most common reason exam questions pair these factors: "You need to immobilise the patient and increase exposure factors — what's the trade-off?"

Factor 5: The Image Receptor — Detector Resolution and DQE

Even with a perfect focal spot and a frozen patient, the detector itself has a resolution limit. Several detector properties set that ceiling:

• Pixel size / pitch. A digital image is a grid of pixels; each pixel integrates signal from a small area. Smaller pixels sample the image more finely, so they resolve finer detail. This is one reason detector choice matters for detail-critical work.
• Scintillator design. In indirect digital detectors, X-rays are converted to light in a scintillator, and that light can spread laterally before reaching the photodiodes, adding slight blur. Structured (needle) scintillators such as cesium iodide (CsI) channel the light toward the detector elements, reducing the spread and improving resolution.
• Detective quantum efficiency (DQE). A detector with higher DQE converts incoming photons into signal more efficiently, so it reaches acceptable image quality with fewer photons — which ties straight into the next factor.

In practice, the receptor choice is usually made for you by the equipment in the room. What the exam wants is that you know resolution has a hardware ceiling and that not every blur is the technologist's fault.

Factor 6: Quantum Noise (Mottle) — Too Few Photons Hides Detail

X-ray production and detection are random processes. Even with a perfectly uniform beam, the exact number of photons landing in each detector pixel fluctuates. This statistical variation is quantum noise (quantum mottle), and when too few photons reach the detector, the image looks grainy — and fine detail gets lost in the grain.

The physics, in one relationship: for a mean of N detected photons, the fluctuation is about √N, so the signal-to-noise ratio grows as

SNR ∝ √N

That square root is the kicker: doubling the photons only improves signal-to-noise by a factor of about 1.4, not 2. So to meaningfully reduce quantum mottle you need substantially more exposure — which means more mAs and more patient dose. Good protocols therefore use enough photons to keep noise from hiding anatomy while holding dose to ALARA — not the maximum possible photons. See our grid and scatter control guide and the density and contrast guide for the other halves of image quality.

This is the hidden cost behind several earlier factors: shortening the exposure time to fight motion, or using a small focal spot that limits mA, both tend to reduce the number of photons. Every decision that sharpens one factor can degrade another — that balance is the essence of technique.

Putting It Together: The Sharpness Checklist

Before you press the exposure button, run the mental checklist:

1. Focal spot — am I on the small (fine) focal spot, or did the exam need the large one for mA? (If a patient will move, large may win.)
2. SID — am I using the longest distance the room and the exam allow (e.g., 180 cm chest, 100 cm extremities)?
3. OID — is the part as close to the detector as the exam and the patient's condition allow?
4. Motion — short exposure, clear breath-hold, patient comfortable and supported?
5. Receptor — does the detector/pixel pitch support the detail this exam needs (e.g., extremities, bone detail)?
6. mAs / photons — enough signal to avoid grain that hides detail, without exceeding what ALARA permits?

If you can answer all six consciously, you're doing the physics on purpose instead of by default — and that's exactly the reasoning the registry rewards.

Common Errors and How to Avoid Them

• Lifting the part off the detector to "center it better" — increases OID, magnifies and blurs. Keep the part on the receptor.
• Staying on the broad focal spot out of habit for thin parts — you'll get more blur than you need. Use fine focus when mA allows.
• Shortening SID to fit a big patient — magnifies and blurs. Collimate and use the grid instead.
• Forgetting to pause respiration — motion unsharpness on the chest and abdomen is one of the most common repeat reasons.
• Thinking "sharper is always better" — a repeat, an extra-large dose, or a burnt-out tube is worse for the patient than accepting textbook-acceptable geometric unsharpness. Sharpness is one goal among several.

A Note on Positioning and SID (Clark's)

Everything above is physics, but it lands as positioning. The source-to-image distance for every projection is an explicit part of the positioning technique recorded in Clark's Pocket Handbook for Radiographers — for example the long SID used for chest radiography versus the standard distances used for many extremity projections. When you set that SID, you are not just following a number from the text; you are directly setting the magnification and geometric unsharpness of the image. Clark's gives you the accepted SID because that distance is what keeps image detail within the diagnostic range. In other words, the sharpness factors in this guide are exactly why positioning textbooks care about distance at all.

Summary: The Six Levers of Sharpness

Master these six levers and the "which change sharpens / blurs this image" family of ARRT questions becomes a short reasoning exercise instead of a guess. Pair it with our guides on radiographic density and contrast (the other half of image quality) and image critique and evaluation, and you'll have a complete picture of what makes a good radiograph.

Key Takeaways

• Sharpness = spatial resolution — the ability to show two closely spaced structures as separate edges.
• Geometric unsharpness comes from the finite focal spot and follows Ug = (F × OID) / SOD.
• Magnification follows M = SID / SOD; minimise it with a long SID and a small OID.
• Line focus principle: effective focal spot = actual × sin(anode angle) — sharpness without cooking the anode.
• Four culprits blur every image: focal spot, OID, SID, and motion; a fifth (quantum mottle) hides detail with grain.
• Every move has a cost — sharper geometry often means more dose, more heat, or more motion risk. Balance is the skill.

Frequently Asked Questions

What is radiographic image sharpness?

Radiographic image sharpness (spatial resolution) is the ability of the imaging system to display two closely spaced structures as separate edges rather than one blurred line. It is controlled mainly by focal spot size, SID, OID, motion, the detector, and quantum noise.

What is geometric unsharpness and how is it calculated?

Geometric unsharpness is edge blur caused by the finite size of the focal spot, which projects a partial-shadow zone (penumbra) at object edges. It is calculated as Ug = (F × OID) / SOD — focal spot size times object-to-image distance divided by source-to-object distance.

How do you make a radiographic image sharper?

Use the small (fine) focal spot, the longest practical SID, keep the part as close to the detector as possible (small OID), control motion with short exposure times and breath-holding, and use enough mAs to avoid quantum mottle — while balancing dose per ALARA.

What is the line focus principle?

The line focus principle uses anode angulation so the effective focal spot seen by the image receptor is smaller than the actual focal spot. This lets a tube handle heat over a large area while still producing a sharp image. Effective focal spot = actual focal spot × sin(anode angle).

What is quantum mottle, and why does mAs affect it?

Quantum mottle is the grainy image noise caused by statistical fluctuations in the number of X-ray photons reaching the detector. Because the signal-to-noise ratio is proportional to the square root of the photon number, increasing mAs (more photons) reduces mottle — but also increases patient dose.

How does SID affect magnification and sharpness?

The magnification factor is M = SID / SOD, and SOD = SID − OID. Increasing SID reduces magnification and geometric unsharpness (a sharper image); decreasing SID magnifies and blurs. This is why chest radiography uses a long SID (about 180 cm).
