Inverse Square Law in Radiography: Formula & Safety
The inverse square law is one of the most tested physics concepts on the ARRT exam — and one of the most useful safety tools you'll ever use as a rad tech. In plain terms: double the distance from an X-ray source and the beam intensity drops to a quarter. That single fact shapes how you choose source-to-image distance (SID), how you adjust your exposure factors, and how you protect yourself, your coworkers, and the public every day in the imaging department.
This guide covers the formula, what it means for your technique, worked examples you can actually use, and the exam angles that show up again and again on registry questions.
What Is the Inverse Square Law?
The inverse square law states that the intensity of radiation is inversely proportional to the square of the distance from the source. In an equation:
I₁ / I₂ = D₂² / D₁²
where I is beam intensity and D is distance from the source.

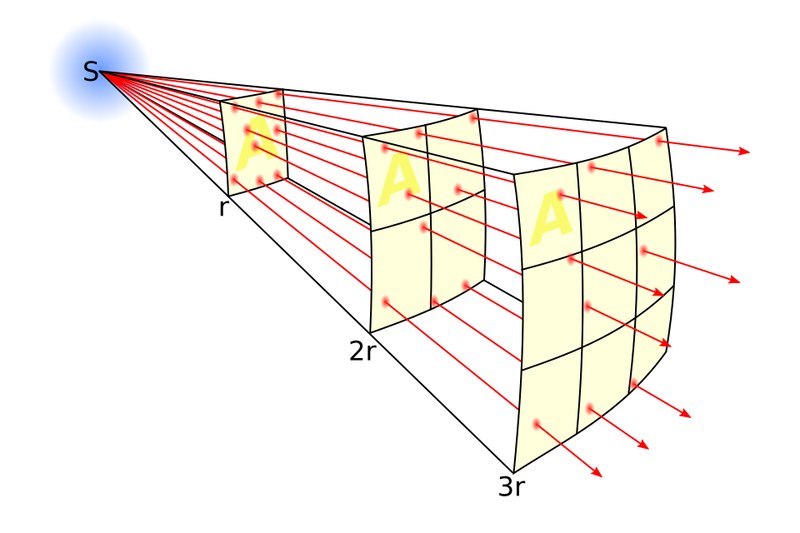

Why does this happen? Think of the X-ray beam spreading out from a nearly point source into three-dimensional space. As you move farther away, that energy spreads over a larger area — the surface area of a sphere grows with the square of the radius (4πr²). So the same amount of energy is diluted across a bigger surface, and each unit of area receives less X-ray intensity.
The practical punchline:
- Double the distance → intensity drops to ¼ (25%)
- Triple the distance → intensity drops to 1/9 (≈11%)
- Quadruple the distance → intensity drops to 1/16 (≈6%)
Key Takeaway: Distance Is Free Protection
Distance is the cheapest radiation-protection tool you have. Moving twice as far away doesn't halve your dose — it quarters it. That's the reason every portable radiographer stands far back when exposing, and why control booths and lead barriers make distance so effective.
The Inverse Square Law Formula
Formulated for the two situations a technologist actually runs into:
To find intensity (I₂) at a new distance (D₂):
I₂ = I₁ × D₁² / D₂²
To find the safe distance (D₂) needed for a target intensity (I₂):
D₂ = √(I₁ × D₁² / I₂)
Intensity is measured in units like R/hr, mR/hr, or mGy/hr. Distance can be in metres or feet — just keep the units consistent on both sides of the equation.
Example — safe distance: If you measure 100 mR/hr at 1 metre from a source and you want to stand where the intensity is down to 2 mR/hr:
D₂ = √(100 × 1² / 2) = √50 ≈ 7.1 metres
That's why departments hard-wire safety markers, and why technologists keep shielded control areas at a safe distance from the unit rather than right next to it.
Why It Matters: SID and Image Quality
You don't just use the inverse square law for safety — you use it for image quality and consistent exposure every time you position a patient. The distance from the focal spot to the image receptor is the source-to-image distance (SID).
| Projection | Typical SID |
|---|---|
| General radiography (most exams) | 40 in (≈100 cm) |
| Erect PA chest / upright chest | 72 in (≈183 cm) |
| Portable/bedside supine chest | 40 in |
Clark's Pocket Handbook for Radiographers specifies the SID for each projection. When you have to change that SID — for a taller patient, a mobile unit, or a decubitus chest — the inverse square law tells you exactly how the exposure must change to keep receptor exposure (and therefore image density) constant. Move the tube farther away and you must increase mAs; move it closer and you must decrease mAs.
Clinical Pearl
Moving from a 40-inch to a 72-inch chest technique isn't a small tweak — it multiplies your mAs by more than 3. Technologists who forget this produce underexposed images and end up repeating the exam, which doubles patient dose. Knowing the direct square law prevents that.
The Direct Square Law: Adjusting mAs for Distance
To keep receptor exposure constant when the SID changes, apply the direct square law (also called the density maintenance formula):
mAs₂ = mAs₁ × (D₂ / D₁)²
In words: mAs changes in direct proportion to the square of the distance ratio. This is simply the inverse square law rearranged for technique factors — the exposure you need scales up or down with distance squared.
Example: A portable AP chest is made at 40 in with 4 mAs. You repeat it as an upright chest at 72 in. What mAs keeps the density the same?
mAs₂ = 4 × (72 / 40)² = 4 × 3.24 = 12.96 ≈ 13 mAs
That's a big jump — and exactly why chest technique charts list separate factors for portable (40 in) versus upright (72 in) studies.
Worked Examples
| Scenario | Calculation | Result |
|---|---|---|
| Intensity when distance doubles (40→80 in) | 1 / 2² | ¼ (25%) |
| Intensity when distance triples | 1 / 3² | 1/9 (≈11%) |
| 4 mAs at 40 in → change to 60 in | 4 × (60/40)² | 9 mAs |
| 4 mAs at 40 in → change to 72 in | 4 × (72/40)² | ≈13 mAs |
| 4 mAs at 72 in → change to 40 in | 4 × (40/72)² | ≈1.2 mAs |
| Personnel dose 10 mGy/hr at 1 m → at 2 m | 10 / 2² | 2.5 mGy/hr |
| Personnel dose 10 mGy/hr at 1 m → at 4 m | 10 / 4² | 0.625 mGy/hr |
Exam Shortcut
When a registry question doubles the distance, the answer is always ¼ the original intensity. When it asks for a new mAs, plug the distances into mAs₂ = mAs₁ × (D₂/D₁)² and square the distance ratio before multiplying.
Radiation Protection: Distance Is Your Free Lever
The inverse square law is the scientific backbone of the time, distance, and shielding triad taught in every radiation-safety program:
- Time — less time in the beam = less dose (dose scales linearly with time).
- Distance — distance reduces dose dramatically, because it scales with the square.
- Shielding — lead aprons, Bucky trays, control booths, and mobile barriers block or attenuate the remaining dose.
For occupational exposure, this is why you step behind the control shield or stand well clear of the tube during exposure. For public exposure, it's why waiting areas place patients and family members metres away from the primary beam rather than beside the table.
Because the law scales with distance squared, even a modest step back — from 1 m to 2 m — drops your dose fourfold. Two steps back to 4 m drops it sixteenfold. In a busy trauma room where you're exposing repeatedly, that habit meaningfully lowers your cumulative dose over a career. For the full dose picture, see our guide to Radiation Dose Units Explained.
ARRT Exam Tips
ARRT content specifications establish broad tested categories such as radiation physics and radiation protection. They do not publish a guaranteed number of questions for a narrow topic like the inverse square law — treat it as a high-yield concept, not a fixed question count.
Points that appear again and again:
- Doubling the distance quarters the intensity — the single most-tested fact.
- The inverse square law assumes a point source — a diagnostic X-ray tube approximates this at routine SIDs.
- Direct square law for SID changes — mAs₂ = mAs₁ × (D₂/D₁)² keeps receptor exposure constant.
- Solving for a safe distance — D₂ = √(I₁ × D₁² / I₂) with intensity in consistent units.
- Distance in the time–distance–shielding triad — the only factor that reduces dose by the square.
Study Tip
Practice two worked problems a day until the formula feels automatic. Drawing the flux-spread diagram yourself (source S, circles at 1r, 2r, 3r) is the fastest way to make the "square" drop intuitive.
Common Mistakes Rad Techs Make
- Forgetting to square the distance ratio in the direct square law — dividing before squaring gives the wrong mAs and an underexposed or overexposed image.
- Confusing intensity with magnification — the inverse square law governs beam intensity, while magnification and distortion are governed by object-to-receptor distance and SID geometry. Both involve distance, but they answer different questions.
- Blending unit systems — mixing feet and metres (or R/hr and mGy/hr) in one calculation corrupts the result. Pick one unit set and stay consistent.
- Standing "a bit closer" during portable exams — a small distance reduction can raise your dose sharply, because the change scales with the square.
- Repeating chest films at the wrong SID — using a 40-inch technique at 72 inches (or vice versa) without the direct square law adjustment guarantees a non-diagnostic image and a repeat exposure.
Frequently Asked Questions
What is the inverse square law in radiography?
The inverse square law states that X-ray beam intensity is inversely proportional to the square of the distance from the source. Double the distance and intensity drops to one quarter; triple it and intensity drops to one ninth.
What is the inverse square law formula?
The inverse square law for intensity is I₁/I₂ = D₂²/D₁². For technique work, the direct square law is mAs₂ = mAs₁ × (D₂/D₁)², which keeps receptor exposure constant when the SID changes.
Why is mAs changed when the SID changes?
Because beam intensity falls off with the square of distance, you must compensate with mAs (direct square law) so the receptor exposure — and therefore image density — stays constant. Increasing SID requires more mAs; decreasing it requires less.
How is the inverse square law used in radiation safety?
Use it to place yourself, staff, and the public at a safe distance from the source. Because doubling distance quarters the dose, distance is the most effective low-cost protection measure alongside shielding in the time–distance–shielding triad.
Does the inverse square law apply to an X-ray tube?
Yes, as a close approximation. At routine clinical SIDs a diagnostic X-ray tube behaves like a point source, so the law is used for both dose calculations and mAs technique adjustments.
How is the inverse square law different from magnification?
The inverse square law governs beam intensity falling off with distance, while image magnification is governed by object-to-image distance and SID geometry. They both involve distance but answer different questions about the image.
