Half-Value Layer & Beam Filtration: The Rad Tech Guide

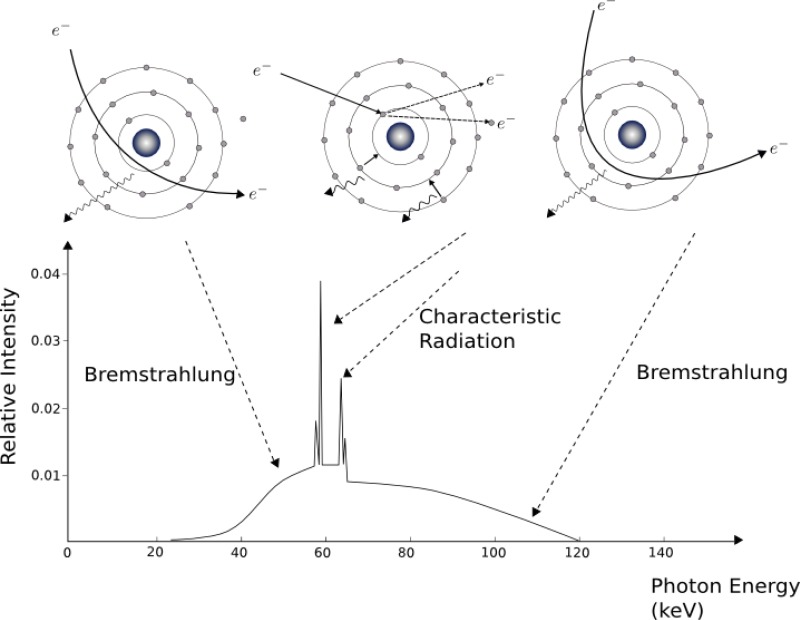

Every x-ray beam is a mixture of photons of different energies. Some are energetic enough to travel cleanly through the patient and reach the detector to form the image. Others are weak, low-energy photons that get stopped almost immediately by the first few centimeters of skin and tissue — contributing dose but creating no diagnostic information at all.
The beam's ability to penetrate, and how much of it is wasted as low-energy dose, is described by a single number called the half-value layer (HVL). It's a physics concept with a very practical, patient-protecting job, and it's tested on the ARRT exam for good reason.
In this guide you'll learn what HVL measures, how beam filtration controls it, the federal minimum standards for a compliant beam, and the exam tips that help rad tech students get HVL questions right.
If you're reviewing the broader physics picture, read this alongside our guides on x-ray production and x-ray interactions with matter.
What Is Half-Value Layer?
Half-value layer (HVL) is the thickness of a reference material that reduces the x-ray beam's exposure (air kerma) to one-half of its original value.
The reference material for diagnostic x-ray energies is high-purity aluminum, so HVL is reported in units of millimeters of aluminum (mm Al).
Think of it this way: if you place increasing thicknesses of aluminum in the beam and measure what still gets through, HVL is the thickness that cuts the reading exactly in half. A beam with a higher HVL is more penetrating — it takes more aluminum to halve it, because it contains more energetic photons. This is often described as a "harder" beam. A beam with a lower HVL is "softer," with more of its photons at low energy.
🆔 Key Idea
HVL is a measure of beam quality. It tells you whether enough low-energy photons have been removed from the beam to protect the patient.
The Food and Drug Administration (FDA) defines HVL precisely in 21 CFR 1020.30 as the thickness of specified material that attenuates the beam such that the air kerma is reduced to half its original value.
Why HVL Matters: Low-Energy Photons Are the Problem
The whole point of measuring HVL comes down to what low-energy photons do to a patient.
Low-energy x-ray photons are preferentially absorbed in the skin and superficial tissue — they're stopped before they can reach the image receptor. That means they deliver radiation dose to the entrance surface of the body and contribute almost nothing to the diagnostic image.
When a beam has a large share of these low-energy photons (a soft beam, low HVL), the patient absorbs unnecessary skin dose with no imaging benefit. Adequate filtration, which we'll cover next, strips those useless low-energy photons out of the beam before they reach the patient.
💡 Clinical Pearl
Measuring HVL and comparing it against the FDA minimum is a direct, quantitative check that the beam is filtered enough to protect the patient.
The Physics Behind HVL
For a narrow beam passing through a material, attenuation follows an exponential law:
I(x) = I₀ e^(−μx)
where I₀ is the initial intensity, μ is the linear attenuation coefficient of the material, and x is the thickness. HVL is defined by the condition that the intensity drops to half, which gives a neat relationship:
HVL = ln2 / μ = 0.693 / μ
So the higher the attenuation coefficient (the more effectively the material stops the beam), the smaller the HVL. Harder beams need thicker attenuators to halve them, so they have larger HVL values.
🧮 Worked Example
Suppose a measurement at 80 kVp finds an effective linear attenuation coefficient in aluminum of μ = 0.239 mm⁻¹. Then:
HVL = 0.693 / 0.239 ≈ 2.9 mm Al
That value lands right at the FDA minimum for a modern unit at 80 kVp — which we'll look at in the minimums table below.
⚠️ Exam Nuance
A diagnostic beam is polyenergetic — it contains many photon energies, not just one. This means the first HVL (enough aluminum to halve the beam once) differs from the second HVL (thickness to halve it a second time). The ratio of the second to the first HVL is the homogeneity coefficient, a value slightly less than 1 for a real beam. You don't need to calculate it, but knowing the first and second HVLs differ is a common exam nuance.
Beam Filtration: Inherent and Added
HVL and filtration are two sides of the same coin. Filtration is what determines the beam's quality; HVL is how you measure it.
Every radiographic tube has two sources of filtration:
- Inherent filtration — the unavoidable material the beam must pass through just to escape the tube: the glass envelope, the insulating oil, and the tube window. It's fixed by the design of the tube and can't be changed by the technologist.
- Added filtration — removable filters, usually aluminum (and thin copper for thicker body parts or higher-energy work), deliberately placed in the beam path to remove low-energy photons.
Total filtration = inherent filtration + added filtration.
Adding filtration hardens the beam: it preferentially absorbs the low-energy photons, so the photons that survive are more penetrating on average. The result is a higher HVL, less patient skin dose from low-energy photons, and a clean beam that produces the image with less wasted energy.
There's a trade-off worth knowing. Because filtration removes some of the beam's photons, it also slightly reduces tube output — so reaching the same detector exposure may require a small technique adjustment. That's the price of a properly filtered, patient-safe beam, and it's negligible compared to the dose benefit.
💡 Clinical Pearl
A technologist rarely changes added filtration in routine general radiography — the correct permanent filtration is set at acceptance testing. Your job is to understand what filtration does. If you ever see an unusually low HVL reading on a QC report, suspect a missing or damaged filter in the beam path.
The Federal Minimum HVL Standard
The FDA sets minimum HVL values for diagnostic x-ray systems in regulation 21 CFR 1020.30(m). The requirement is expressed as a table of minimum HVL in mm of aluminum for each operating potential.
Here are the minimum HVL values for a standard (general-purpose/non-dental) radiographic system, matching today's post-2006 specification:
| Operating potential (kVp) | Minimum HVL (mm Al) |
|---|---|
| 50 | 1.5 |
| 60 | 1.5 |
| 70 | 1.8 |
| 80 | 2.9 |
| 90 | 3.2 |
| 100 | 3.6 |
| 110 | 3.9 |
| 120 | 4.3 |
| 130 | 4.7 |
| 140 | 5.0 |
⚠️ Clarification
You'll sometimes hear a simplified figure that "total filtration should be at least 2.5 mm Al." That's a rough teaching shortcut. The legally enforceable standard is the per-kVp table above from 21 CFR 1020.30(m). A modern unit at 80 kVp, for example, must meet about 2.9 mm Al — not a flat 2.5 mm. State the table, and treat 2.5 mm as only a loose floor for general guidance.
Notice the trend: the higher the kVp, the more filtration (and the harder the beam) required. That's because higher-energy beams naturally contain more photons that can penetrate — and a properly matched higher filtration keeps the low-energy tail under control across the operating range.
How HVL Is Measured in QC
HVL is measured at acceptance testing and again during the annual physics survey of each unit. It's one of the most important quality-control checks because, along with kVp accuracy, it verifies the system is safe for patients before any diagnostic image is trusted.
The measurement uses calibrated, certified-purity aluminum and good beam geometry — a small field, an adequate source-to-detector distance, and minimized scatter. The physicist checks how much the readout drops as aluminum is added, then interpolates to find the thickness that halves the beam.
Because a falsely high or low HVL can hide a real problem, measurement conditions matter. Scatter contaminating the reading, or impure attenuators, can bias the result.
The Supporting Generator Tests
HVL sits within a family of QC tests that together verify the generator is safe and predictable:
- HVL (beam quality) — confirms adequate filtration / patient protection.
- kVp accuracy — confirms the console kVp matches the actual potential; commonly expected within about ±5%.
- Exposure reproducibility — the same technique gives the same output. Under 21 CFR 1020.31, the estimated coefficient of variation must be no greater than 0.05 over ten consecutive measurements within one hour.
- Output linearity — air kerma scales proportionally with mAs; for any two consecutive tube-current settings, the ratios differ by no more than 10%.
These are the tests that let you trust a technique chart and let automatic exposure control (AEC) terminate at the right detector dose. Read more in our radiography quality control guide.
💡 ARRT Exam Tip
The exam loves to test effects you can reason through. Know these three: (1) adding filtration increases HVL and hardens the beam but reduces output; (2) increasing kVp increases HVL because the beam is more penetrating; (3) HVL is measured in mm Al, and the reference material is aluminum. If an option pairs "filtration" with "softer beam" or "increases low-energy photons," it's wrong — filtration removes low-energy photons.
Filtration vs Collimation: Don't Confuse Them
HVL and filtration are about beam quality. Collimation is a different, complementary tool that shapes the field (area) of tissue exposed, rather than the beam's energy. Both reduce patient dose, but in different ways:
| Tool | What it does | What it reduces |
|---|---|---|
| Filtration | Removes low-energy photons; hardens the beam (raises HVL) | Skin dose from low-energy photons; beam quality |
| Collimation | Narrows the field with lead shutters | Volume of tissue irradiated; scatter; integral dose |
They work together: collimation shrinks the area exposed, and filtration cleans the energy of the beam passing through that area. For the full story on the field-shaping side, see our x-ray collimation guide.
Filtration in Practice and Safety
Filtration is a permanent, set-and-forget part of good radiography, but it interacts with how you manage dose and technique:
- It reduces patient skin dose. Removing low-energy photons means less dose is deposited at the entrance surface where those photons would stop.
- It supports ALARA. Along with collimation, appropriate technique, and shielding, filtration is part of the "As Low As Reasonably Achievable" toolkit every technologist applies.
- It matters most where patient sensitivity is highest. Children are more radiosensitive and have more lifetime to express effects, so a properly filtered beam is a fundamental step in every pediatric study. See our pediatric dose reduction strategies.
- It pairs with kVp selection. Higher-kVp technique produces a more penetrating beam with a higher HVL, which lowers patient dose per study — one reason high-kVp, low-mAs technique is common where appropriate.
Wrapping Up
Half-value layer might sound like abstract physics, but it's really a practical patient-protection number. It tells you whether the beam is adequately filtered and hard enough to image safely, and it's backed by enforceable federal minimums. Master these core ideas:
- HVL is the aluminum thickness that halves the beam — reported in mm Al.
- Higher HVL = harder, more penetrating beam; lower HVL = softer, more low-energy (skin-dose) photons.
- Filtration (inherent + added) is what raises HVL and removes the useless low-energy photons.
- The FDA sets per-kVp minimum HVL standards (21 CFR 1020.30) that every unit must meet at acceptance and annually.
- HVL is measured alongside kVp accuracy, exposure reproducibility, and output linearity in QC.
For more physics and image-quality foundation, see our guides on x-ray interactions with matter and the x-ray tube that produces the beam.
Frequently Asked Questions
What is half-value layer (HVL)? HVL is the thickness of a reference material — aluminum, for diagnostic x-rays — that reduces the beam's air kerma to one-half of its original value. It's reported in millimeters of aluminum and is a measure of beam quality.
Why does filtration reduce patient dose? Filtration removes low-energy x-ray photons that would otherwise be absorbed in the skin and superficial tissue. These photons deliver dose but contribute nothing to the image, so removing them cuts unnecessary skin dose without harming diagnostic quality.
What is the difference between inherent and added filtration? Inherent filtration comes from the tube itself — the glass envelope, oil, and window — and is fixed. Added filtration is a removable aluminum (or copper) filter placed in the beam path. Total filtration is the sum of the two.
What is the minimum HVL for an 80 kVp radiograph? For a modern general-purpose radiographic system, the FDA minimum HVL at 80 kVp is approximately 2.9 mm Al (per 21 CFR 1020.30). The exact required value depends on the operating potential.
Does increasing filtration affect the image? Increasing filtration removes low-energy photons, hardening the beam and slightly reducing tube output. This may require a small technique adjustment to maintain detector exposure, but it lowers patient dose and is the standard approach to a safe, quality beam.
Is HVL measured regularly? Yes. HVL is measured at acceptance testing and at the annual physics survey, alongside kVp accuracy, exposure reproducibility, and output linearity — the QC tests that confirm the unit is safe and predictable.
Test Your Knowledge
Try these educational multiple choice questions based on this article. They are not official ARRT questions. Click an option to check your answer — correct answers turn green, wrong ones turn red.
HVL is the thickness of a reference material (aluminum) that reduces the beam's air kerma to half its original value. It describes beam quality — how penetrating, or hard, the beam is.
Filtration removes low-energy photons, so the surviving beam is more penetrating on average. This raises the HVL (hardens the beam), lowers skin dose, and slightly reduces output.
For diagnostic x-ray energies, high-purity aluminum is the standard reference attenuator, so HVL is reported in millimeters of aluminum (mm Al).
Inherent filtration is the unavoidable material in the beam path within the tube: the glass envelope, insulating oil, and tube window. Added filtration is the removable aluminum/copper filter placed in the beam.
Increasing kVp produces a more penetrating (harder) beam, so more aluminum is needed to halve it — the HVL increases. That's why higher-kVp technique generally lowers patient dose per study.
HVL is a patient-protection test. Measuring it against the FDA minimum (21 CFR 1020.30) confirms the beam is adequately filtered so low-energy photons that add skin dose without imaging benefit are removed.
